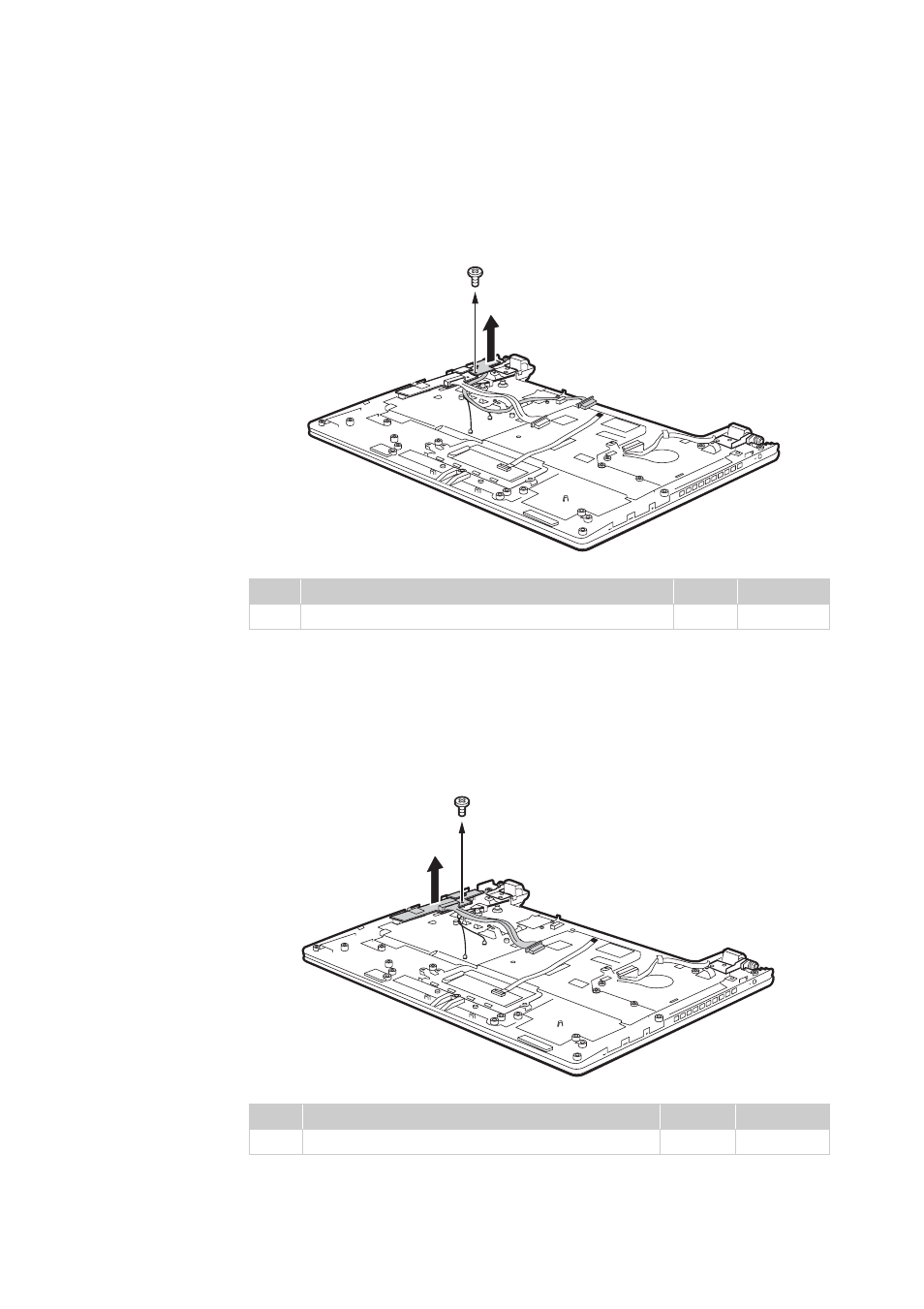

Figure 9. Speakers, base cover, audio board, DC-IN board and power board (continued)

Remove screw

, unplug the connector, then remove the DC-IN board in the

direction shown by arrow

.

When installing:

Make sure that the power connector is attached firmly.

Remove screw

, and then remove the audio board in the direction shown by

arrow .

Step

Screw (quantity)

Color

Torque

M2 × 3 mm, flat-head, nylok-coated (1)

Black

1.35 kgfcm

Step

Screw (quantity)

Color

Torque

M2 × 3 mm, flat-head, nylok-coated (1)

Black

1.35 kgfcm

a

b

a

b

b

a

b

a

b

a
