Lenovo S20-30 / S20-30 Touch
43

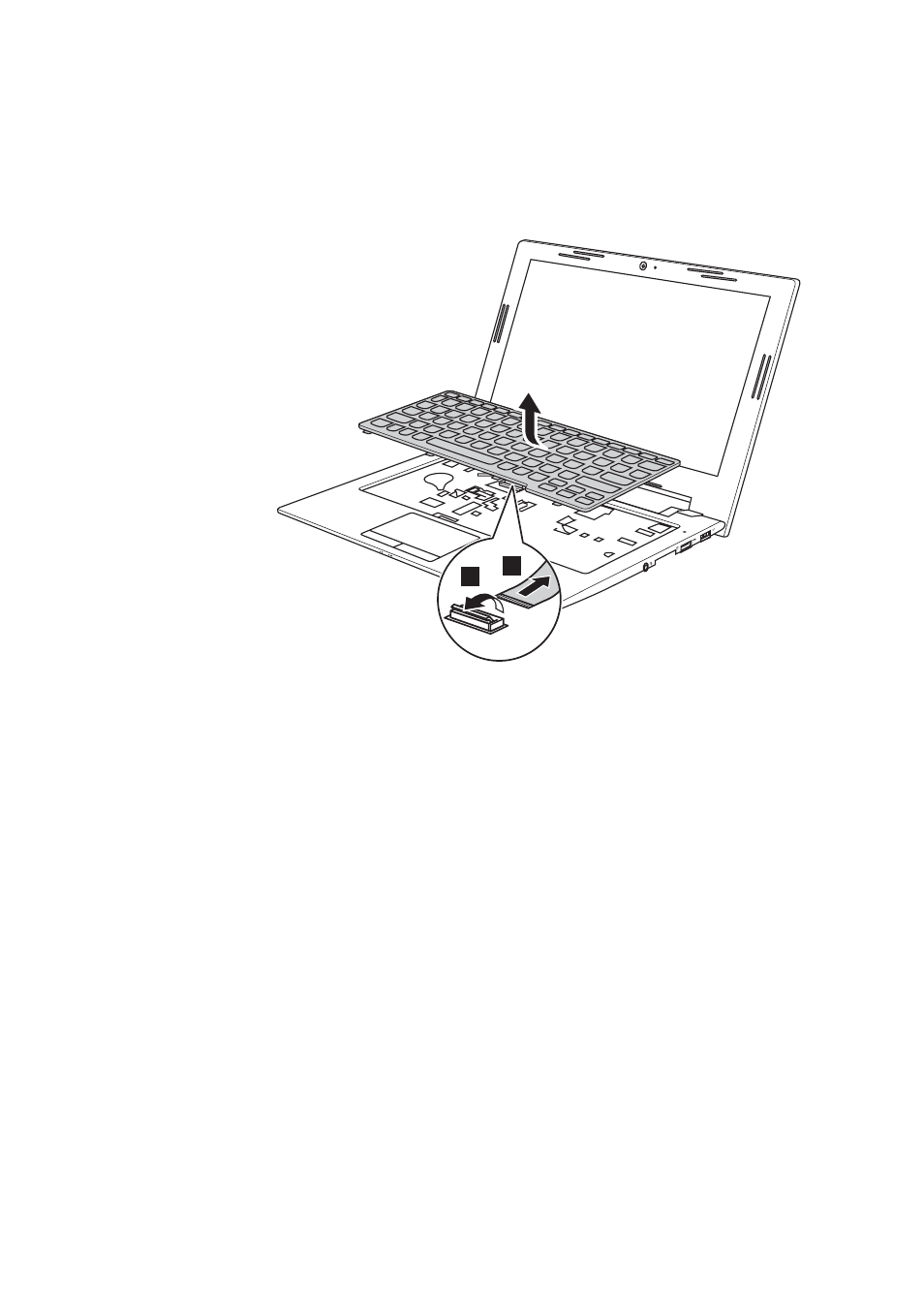

Figure 6. Removal steps of keyboard (continued)
Lift the keyboard a little , and then detach the connector in the direction
shown by arrows .
When installing: Make sure that the FPC connector is attached firmly.
c
d e
c
4
5
