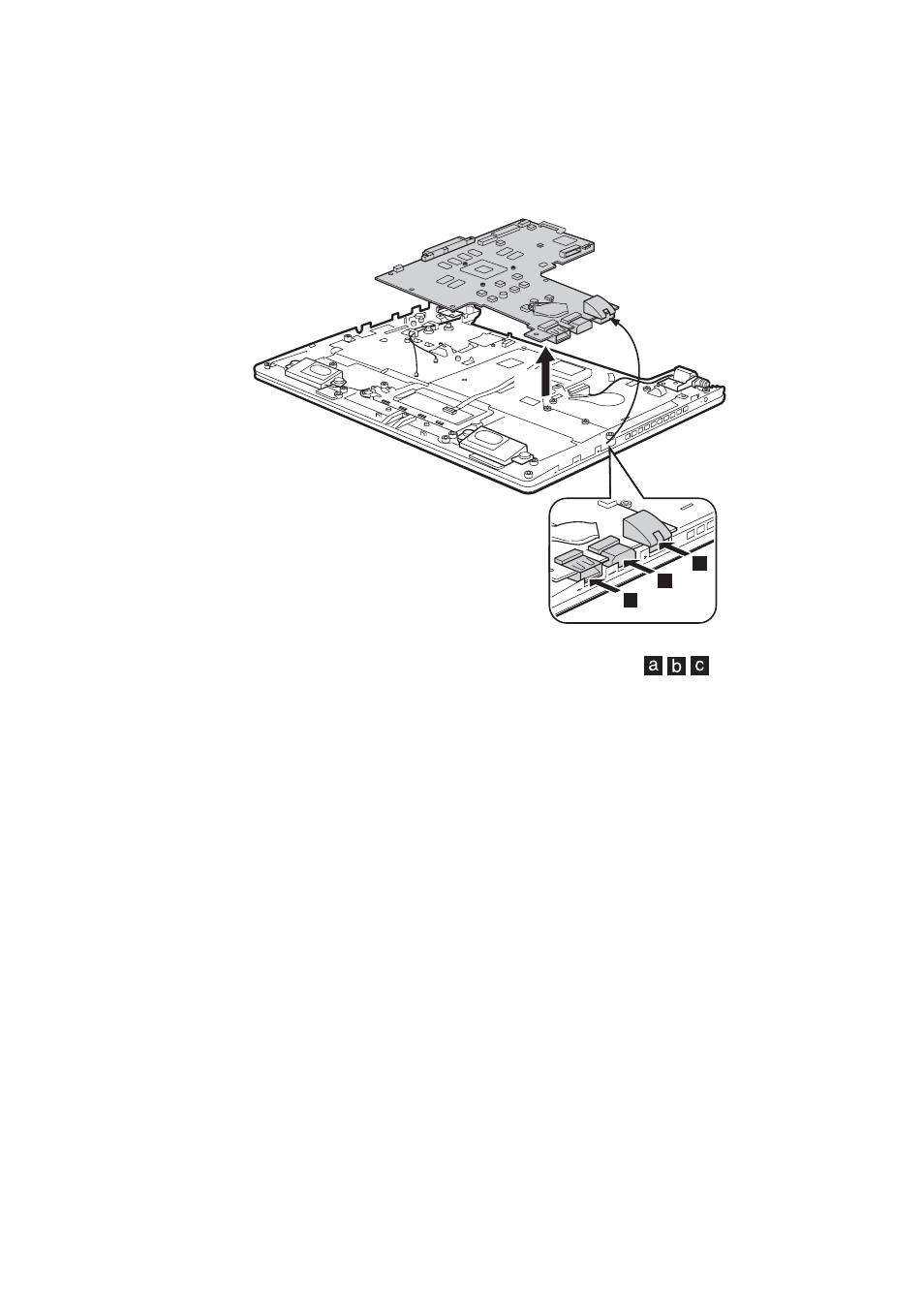

Figure 7. Removal steps of system board (continued)

Remove the system board in the direction shown by arrow

.

When installing:

When attaching the system board to the base cover, adjust the

placement of the USB, HDMI, RJ-45 ports as shown in

, and make sure

that they are attached to the holes on the base cover as shown. Improper
placement of those jacks might cause a damage.
