Lenovo S20-30 / S20-30 Touch Hardware Maintenance Manual
48
1070 LCD unit
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Hard disk drive” on page 36
• “1030 PCI Express Mini Card for wireless LAN/WAN” on page 38
• “1040 Fan assembly and Heat Sink assembly” on page 40
• “1050 Keyboard” on page 42
• “1060 System board” on page 44

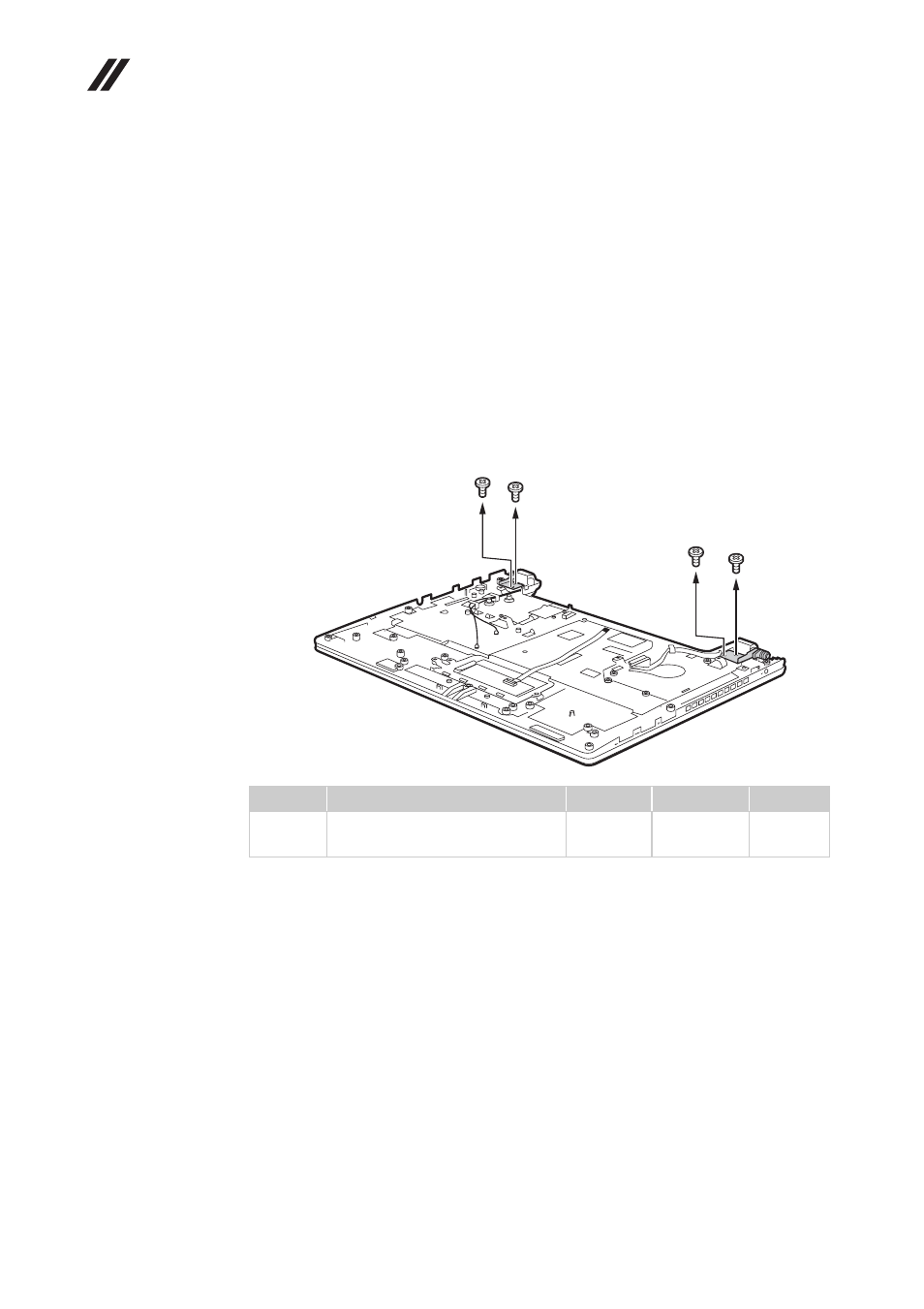

Figure 8. Removal steps of LCD unit
Remove four screws .
When installing:
• Route the antenna cables along the cable guides. As you route the cables,
make sure that they are not subjected to any tension. Tension could cause the
cables to be damaged by the cable guides, or a wire to be broken.
• Make sure that the LCD connector is attached firmly and make sure that you
do not pinch the antenna cables when you attach the LCD assembly. Route
the LCD cable along the cable guides.
Step Screw (quantity) Color Torque P/N
M2.5 × 4 mm, flat-head, nylok-
coated (4) Black 1.85 kgfcm 90202952
