54
IdeaPad U460 Hardware Maintenance Manual
1120 Fan assembly and Heat Sink assembly
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Dummy card” on page 35
• “1030 Hard disk drive (HDD) cover” on page 36
• “1040 Hard disk drive” on page 37
• “1050 DIMM cover” on page 38
• “1060 DIMM” on page 39
• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40
• “1080 Keyboard” on page 42
• “1090 Keyboard bezel” on page 44
• “1100 LCD unit” on page 49
• “1110 System board” on page 51

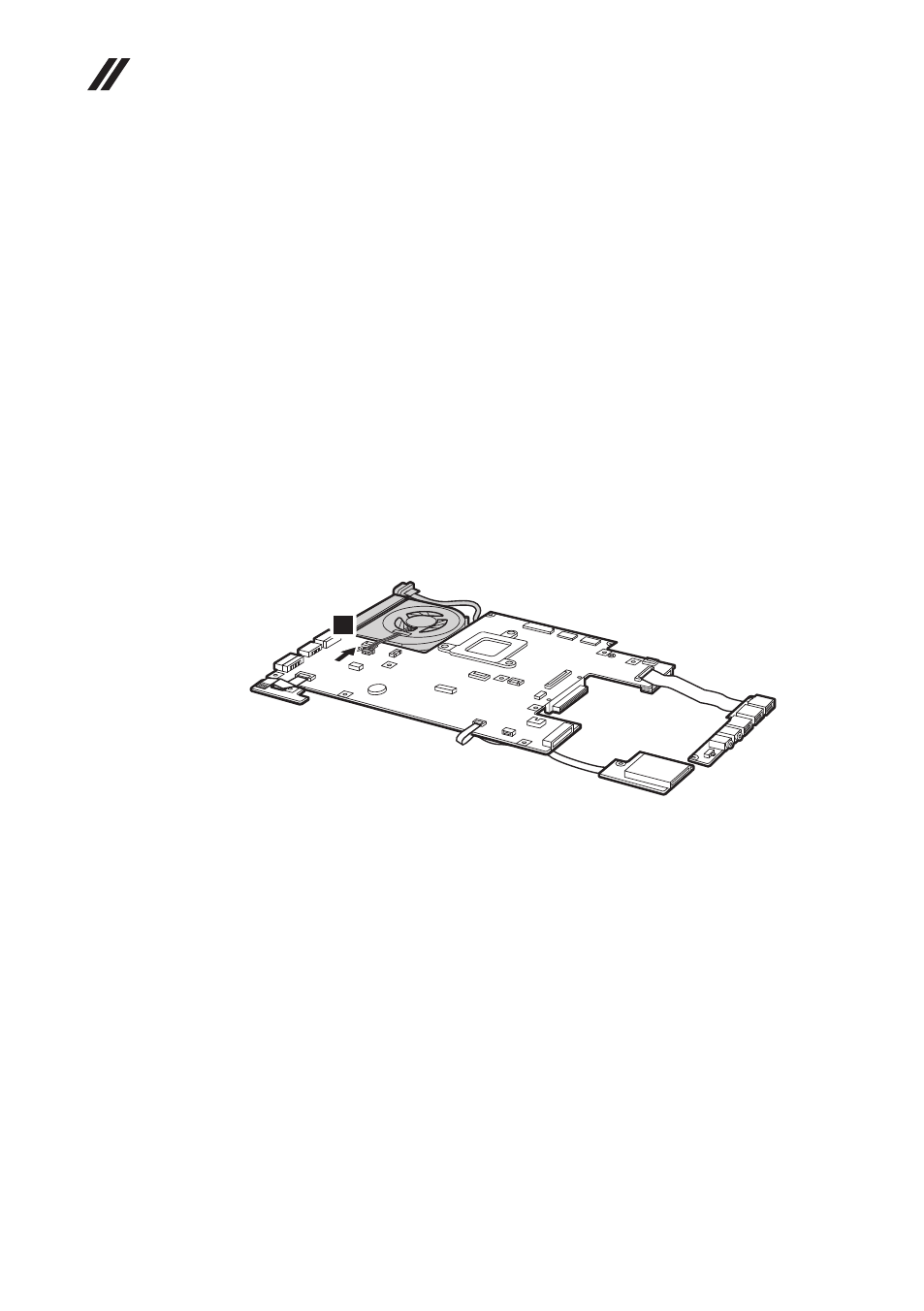

Figure 12. Removal steps of fan assembly and heat sink assembly
Unplug the connector
1 .
1
When installing: Make sure that the fan connector is attached firmly to the
system board.
