IdeaPad U460 Hardware Maintenance Manual

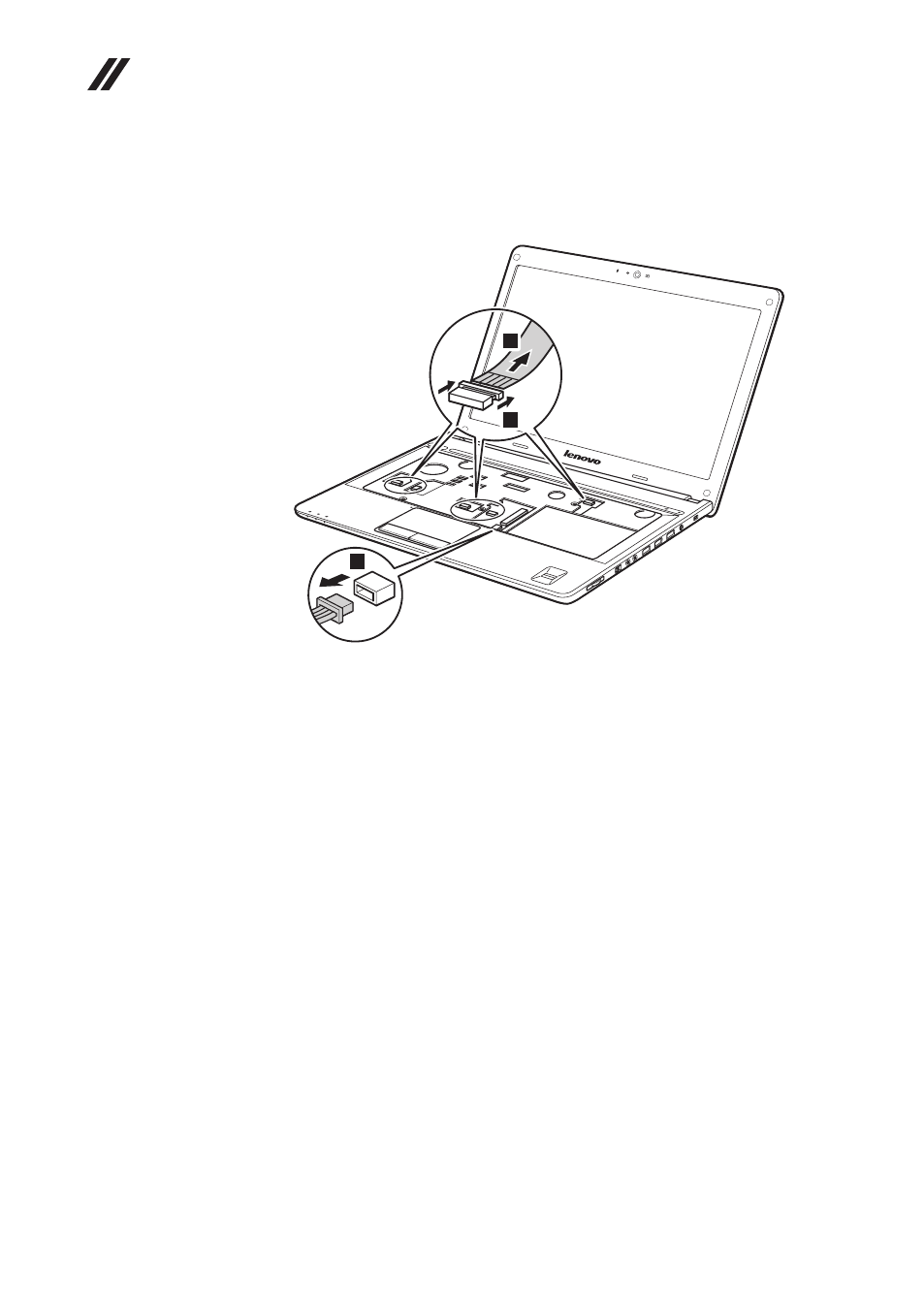

Figure 9. Removal steps of keyboard bezel (continued)
Detach five FPC connectors in the direction shown by arrows
3
4
. Unplug the
speaker connector in the direction shown by arrow
4
.
4
3
4
When installing: Make sure that all the FPC connectors and the speakers
connector are attached firmly.
