1040 Hard disk drive
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive (HDD) cover” on page 36
Attention:
• Do not drop the hard disk drive or apply any physical shock to it. The hard
disk drive is sensitive to physical shock. Improper handling can cause damages
and permanent loss of data.
• Before removing the drive, suggest the customer to backup all the information on
it if possible.
• Never remove the drive while the system is operating or is in suspend mode.

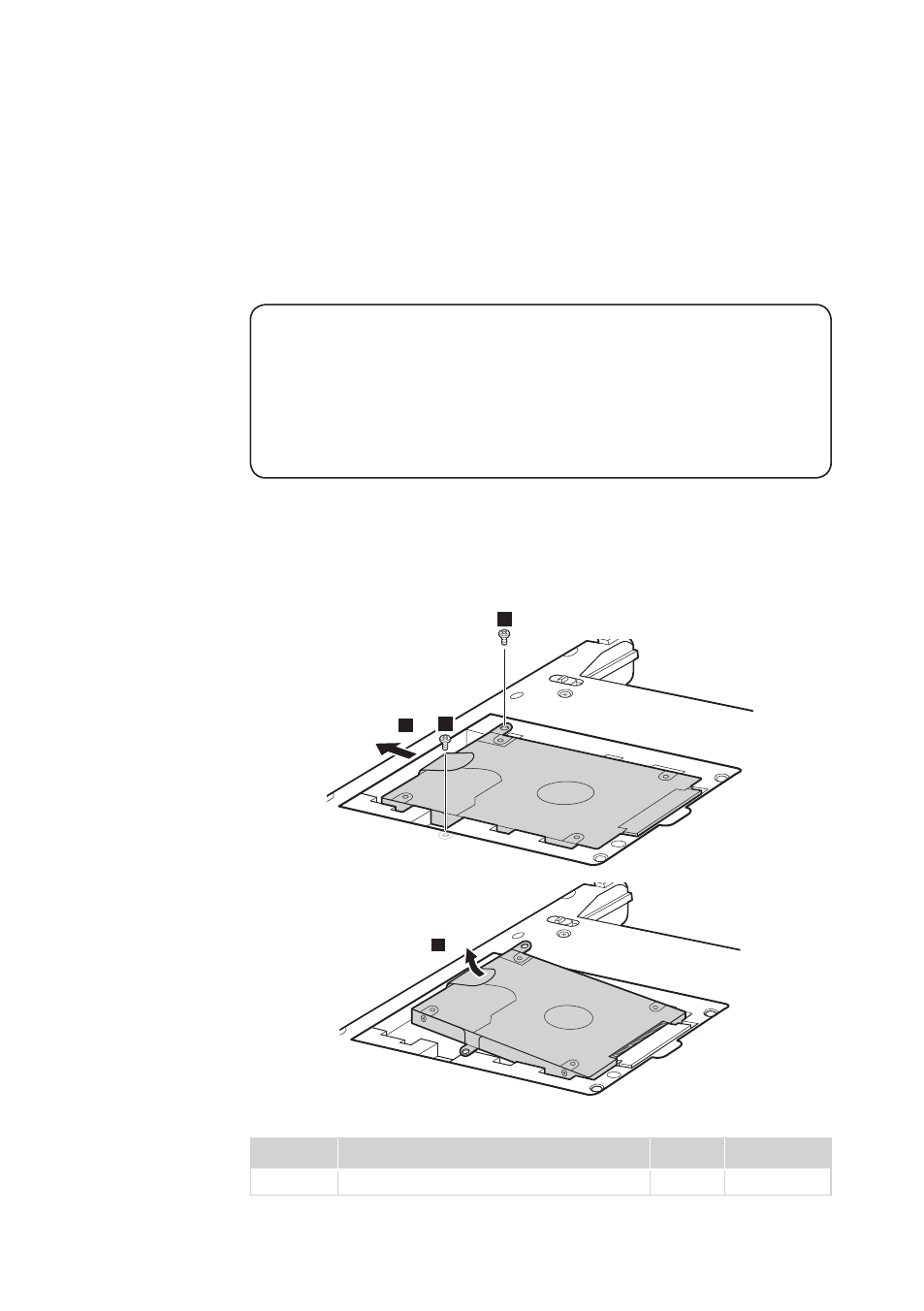

Figure 4. Removal steps of hard disk drive
Remove the screws
1
, pull the tab in the direction shown by arrow
2
, and
then remove the hard disk drive from the slot in the direction shown by arrow
3
.
2
1
1
3
Step
Screw (quantity)
Color
Torque
1
M2.5 × 6 mm, flat-head, nylok-coated (2)
Black
2.5 kgfcm
When installing: Make sure that the HDD connector is attached firmly.
