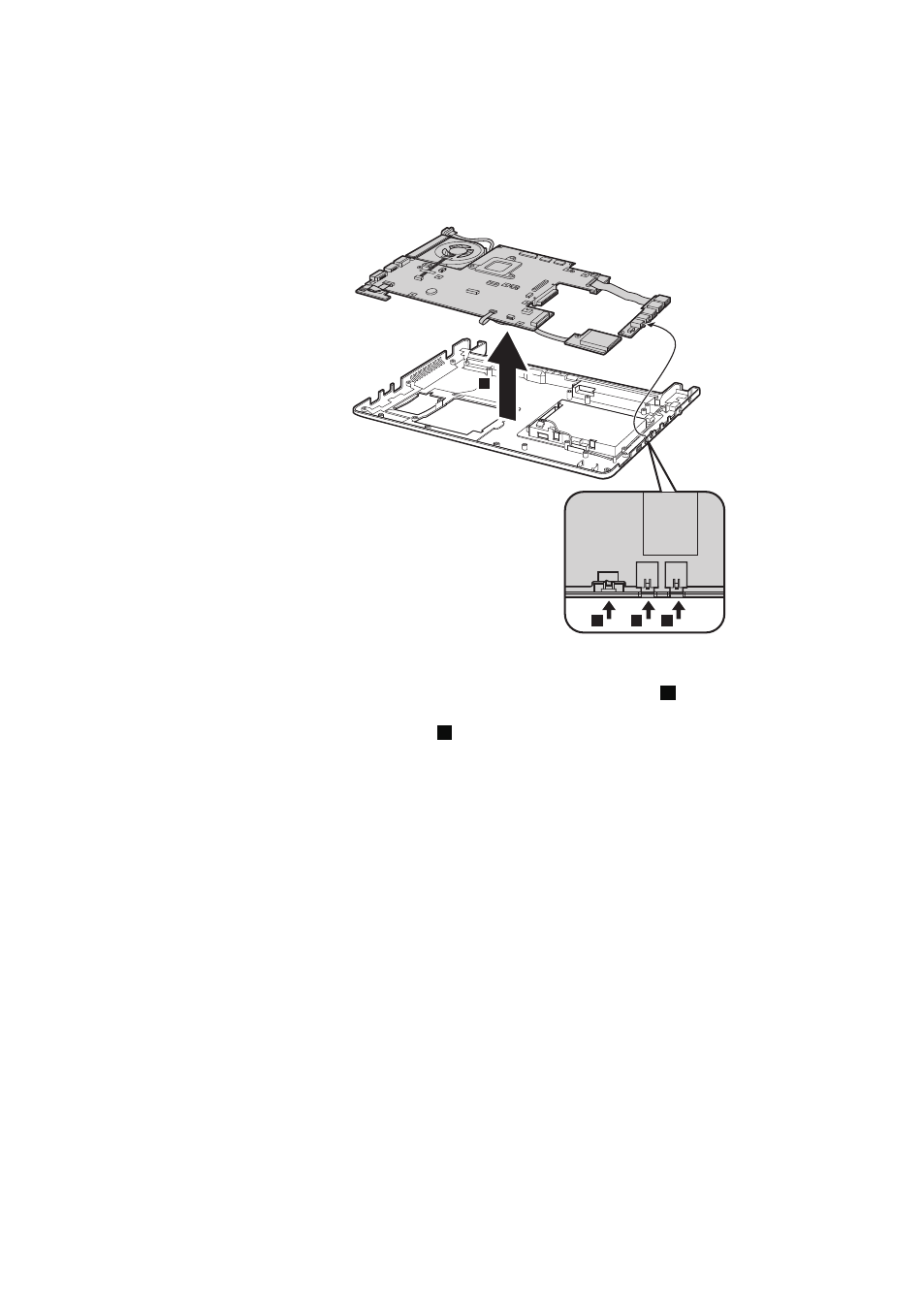

Figure 11. Removal steps of system board
Remove the system board in the direction shown by arrow
3
.
3
a a b
When installing: When attaching the system board to the base cover, adjust
the placement of the wireless radio switch as shown in
b
, and make sure that
both of the audio jack and the microphone jack are attached to the holes on the
base cover as shown in
a
. Improper placement of the switch or those jacks
might cause a damage.
