Components of server models with 2.5-inch hot-swap hard disk drives
PSU
Mem CPU
ID

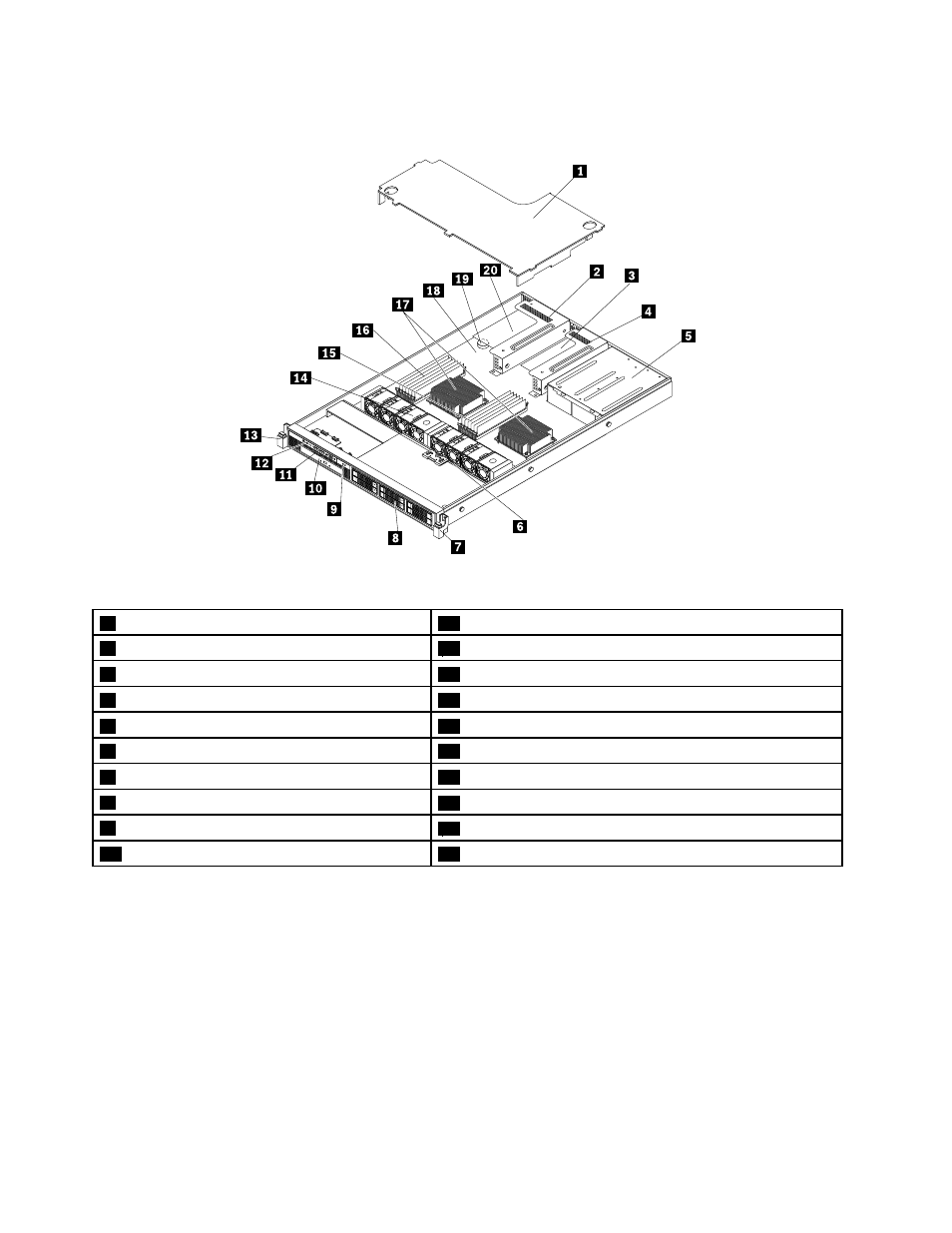

Figure 13. Components of server models with 2.5-inch hot-swap hard disk drives
1 Cooling shroud 11 Pull-out information card
2 Riser card assembly 1 12 Front panel
3 PCI Express card (available in some models) 13 Left rack handle
4 Riser card assembly 2 14 System fans
5 One or two hot-swap redundant power supplies 15 CPU2 DIMMs (vary by model)
6 Backplane for 2.5-inch hard disk drives 16 CPU1 DIMMs (vary by model)
7 Right rack handle 17 Heat sinks (vary by model)
8 2.5-inch hard disk drive bays 18 System board
9 Intelligent Diagnostics Module 19 System board battery
10 Slim optical drive (available in some models) 20 PCI Express card (available in some models)
