6. Insert the TPM into the TPM connector on the system board.

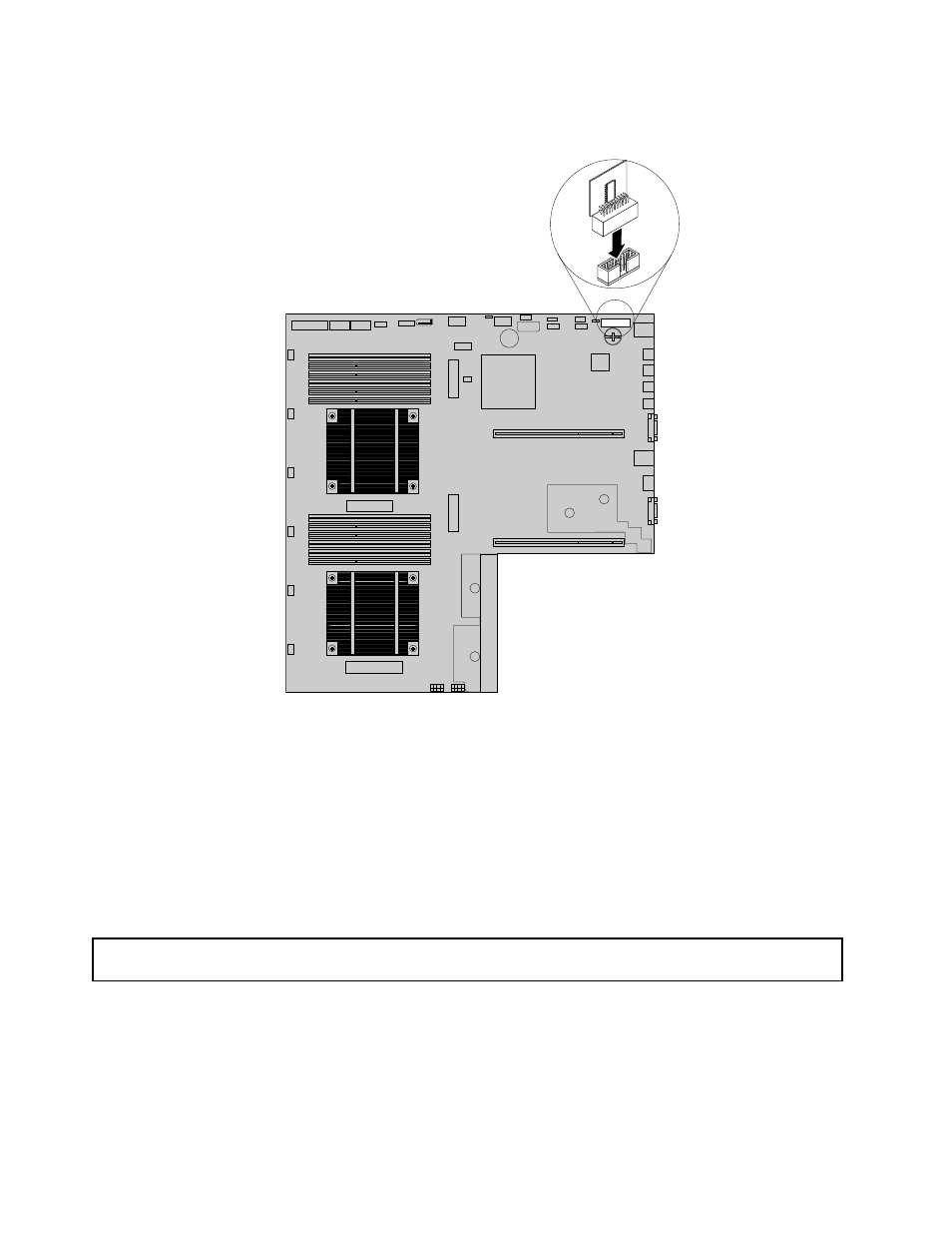

Figure 55. Installing the TPM

7. If you have lifted the riser card assembly 1, reinstall it into the chassis. See “Replacing the riser card

What to do next:

• To work with another piece of hardware, go to the appropriate section.

• To complete the installation, go to “Completing the parts replacement” on page 149. Then, you can

configure the TPM function in the Setup Utility program. See “Configuring the TPM function” on page 52.

Removing the ThinkServer Trusted Platform Module

Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 69.

This topic provides instructions on how to remove the TPM if the server has one installed.

Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.
