Lenovo IdeaPad S410p Notebook User Manual
Page 58
54
IdeaPad S410p/S410p Touch/S510p/S510p Touch Hardware
Maintenance Manual

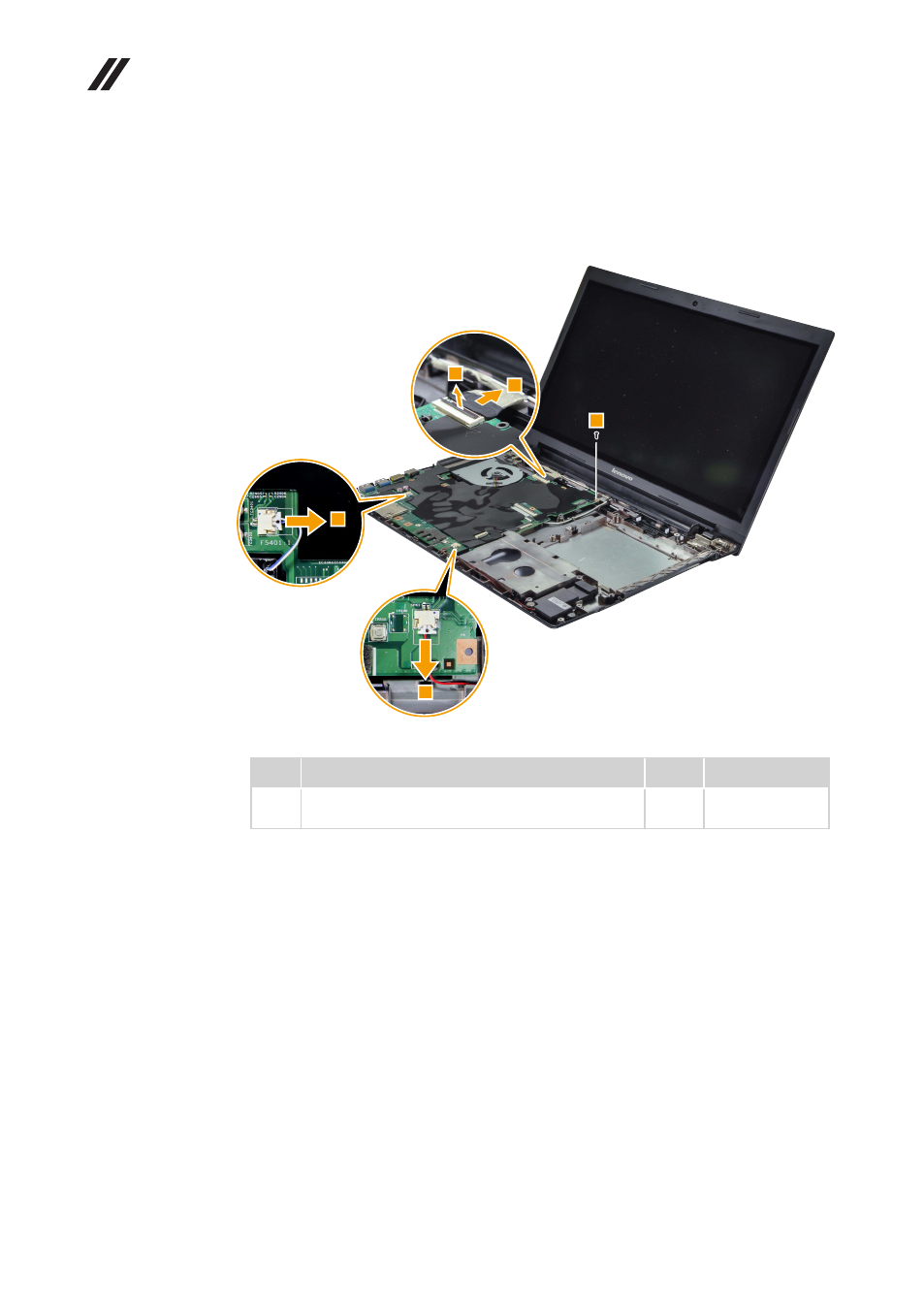

Figure 11. Removal steps of system board (continued)
Disconnect the three connectors in the direction shown by arrows
1
and
2
.
Remove the screw
3
.
Step Screw (quantity)
Color Torque
3
M2 × 6 mm, flat-head, nylok-coated (1)
MB to L-case
Black 1.85+/-0.15 kgf*cm
