1100 USB board and ODD board
For access, remove these FRUs in order:
• “1010 Battery pack” on page 32
• “1020 Dummy card” on page 33
• “1030 Base cover” on page 34
• “1040 Optical drive” on page 36
• “1050 Hard disk drive” on page 37
• “1060 PCI Express Mini Card for wireless LAN” on page 39
• “1080 Keyboard” on page 42
• “1090 Keyboard bezel” on page 45

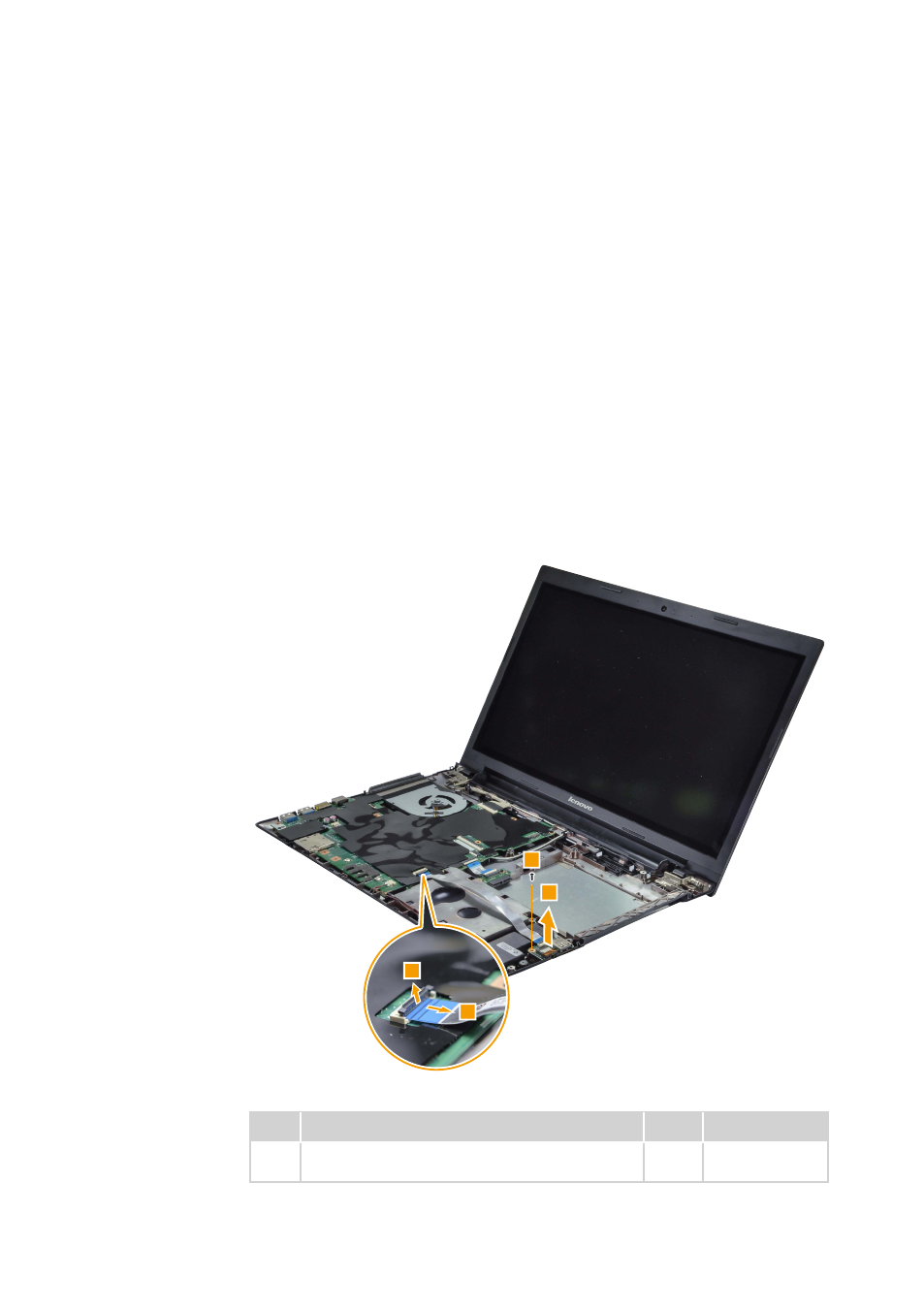

Figure 10. Removal steps of USB board and ODD board
Detach the USB board connector in the direction shown by arrows
1
and
2
.
Remove the screw
3
, then remove the USB board
4
.
Step Screw (quantity)
Color Torque
3
M2 × 6 mm, flat-head, nylok-coated (1)
USB Board to L-case
Black 1.85+/-0.15 kgf*cm
