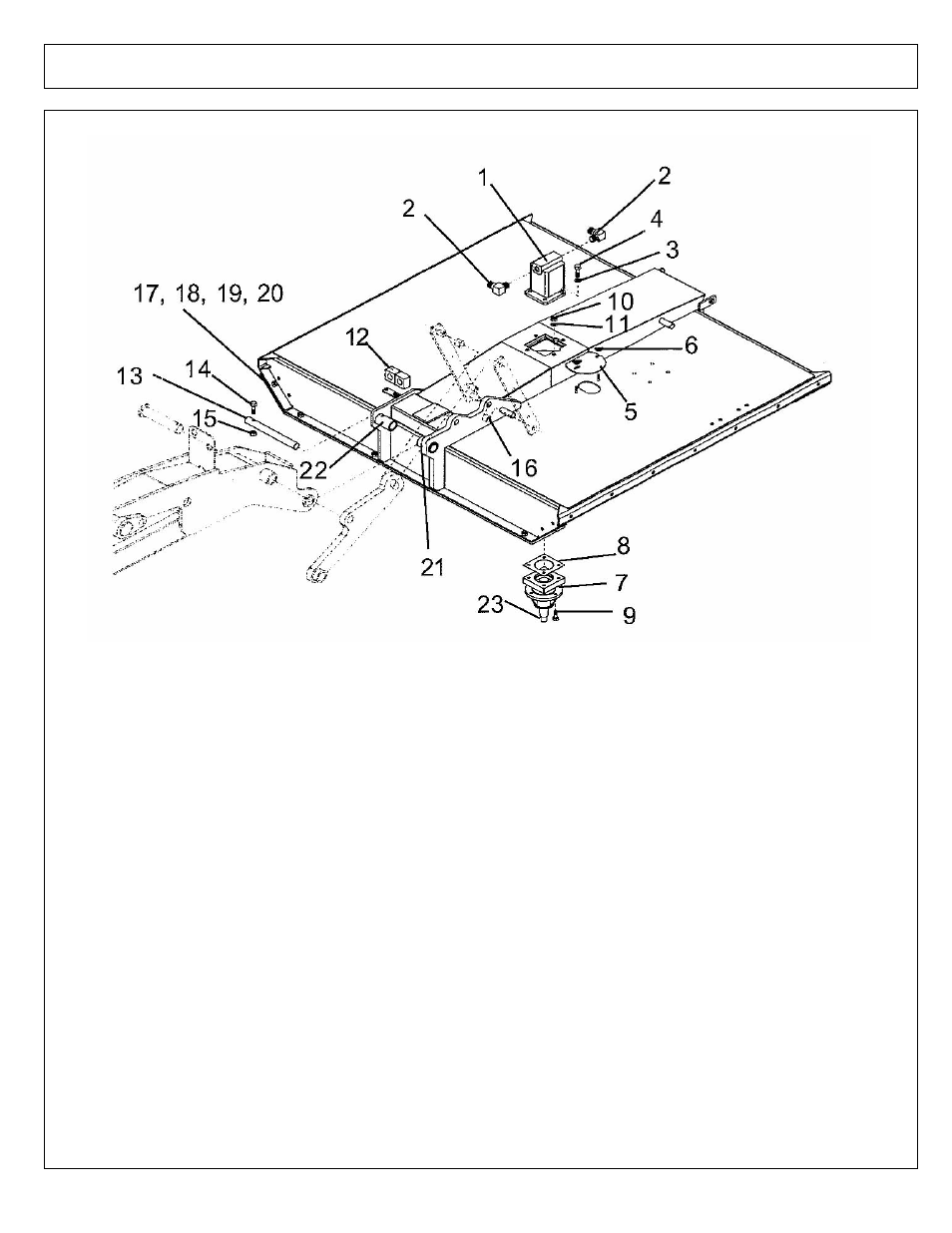

MOWER HEAD ASY.
ITEM
PART NO. QTY.
DESCRIPTION
1
02969107
1
HYDRAULIC MOTOR
2
02090800
2
ELBOW
3
00019600
4
LOCKWASHER
4
02892000
4
BOLT
5
5710121
1
COVER PLATE
6
5F5180
2
WING NUT
7
00763572
1
SPINDLE
8
00763460
1
GASKET
9
00755082
4
BOLT
10
00756077
8
WASHER
11
02956948
4
LOCKNUT
12
02965059
2
CLAMP
13
02964139
1
PIN
14
00013900
1
BOLT
15
0015800
1
LOCKNUT
16
02964349
1
BUSHING
17
00775568
2
SKID SHOE, (LH & RH SIDE SAME PART NO.)
18
2A361612
12
PLOW BOLT, 3/8"-NC X 1-1/2"
19
00011100
12
FLATWASHER, 3/8" PL STD
©2008 Alamo Group Inc.
Parts Section -25
Exten-A-Kut II (04-04) Rev 10-08
