Alamo EXTEN-A-KUT II 02969111P - Manual (Page 14)

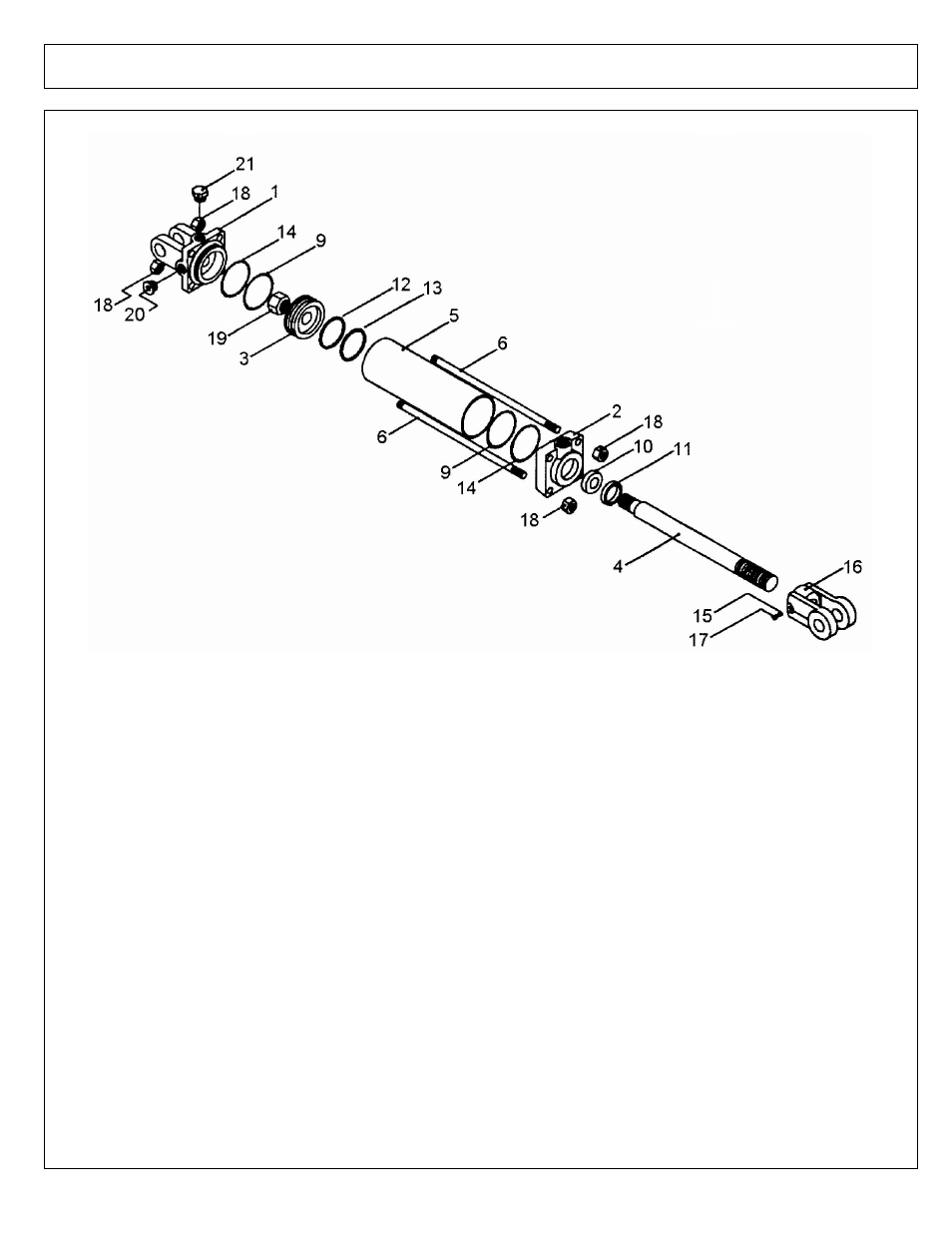

HYD CYL ASY - TILT - PN 00759947A
ITEM PART NO. QTY. DESCRIPTION
1 2417158 1 CLEVIS CAP
2 2417157 1 ROD CAP
3 00774732 1 PISTON
4 00774738 1 ROD
5 00774749 1 TUBE
6 00774743 4 TIE ROD
9 *SEAL KIT 2 END CAP O-RING
10 *SEAL KIT 1 ROD WIPER SEAL
11 *SEAL KIT 1 ROD DUST SEAL
12 *SEAL KIT 1 PISTON SEAL
13 *SEAL KIT 1 PISTON WEAR RING
14 *SEAL KIT 1 END CAP - BACKUP WASHERS
15 3047117 1 NYLON THREAD PROTECTER
16 1917140 1 ROD CLEVIS
17 00774740 1 SET SCREW
18 33005H5C 8 TIE ROD NUT
19 5JRC16140 1 PISTON NUT
20 1917132 1 PORT PLUG
