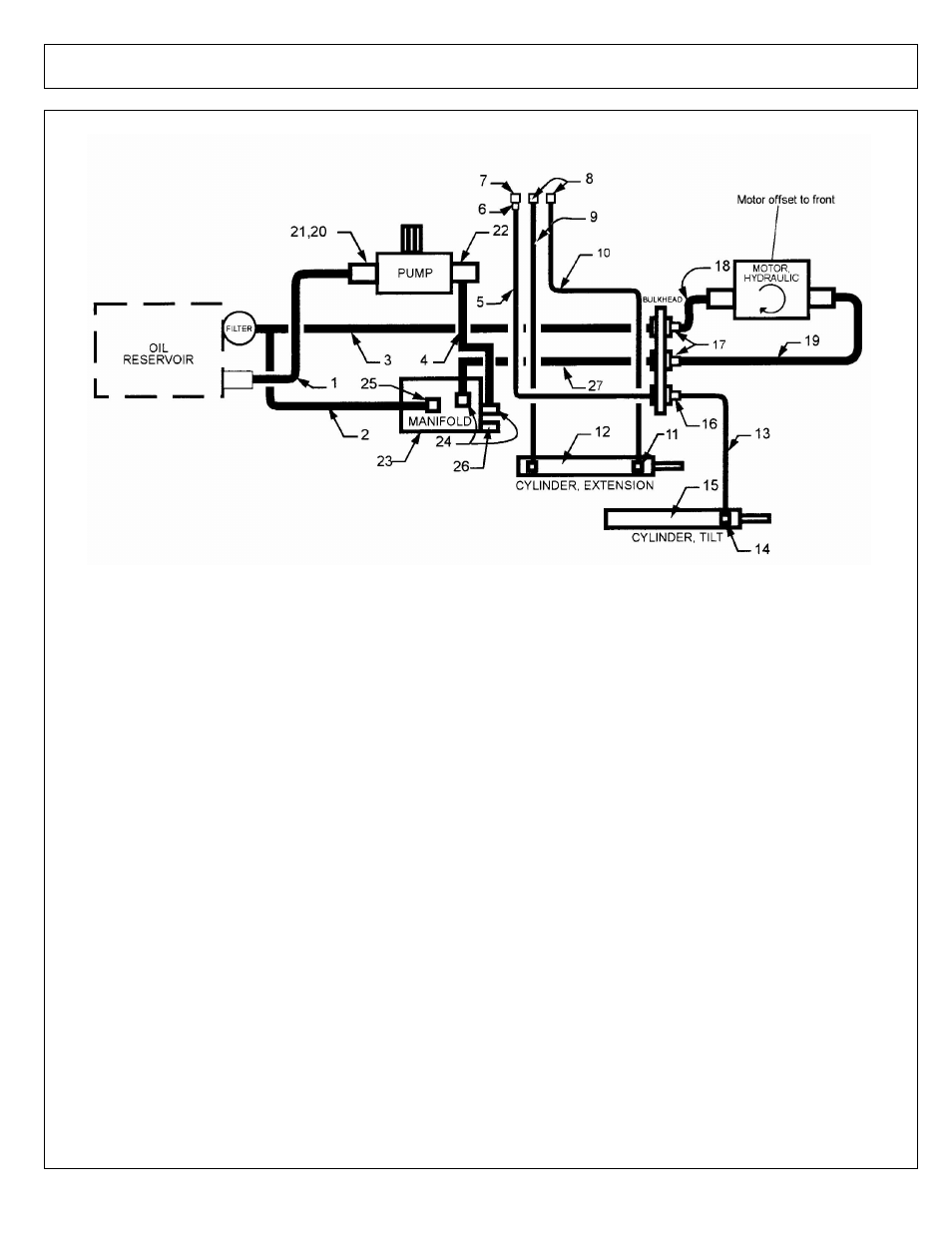

HYD HOSE SCHEMATIC

ITEM

PART NO. QTY.

DESCRIPTION

1

02970453

1

HOSE - SUCTION

2

02958647

1

HOSE - MANIFOLD TO TANK

3

02964974

1

HOSE - BULKHEAD TO FILTER

4

02970454

1

HOSE - PUMP TO MANIFOLD

5

02964417

1

HOSE - TRACTOR TO BULKHEAD

6

00750983

1

ELBOW - 90 DEG.

7

02811300

1

RESTRICTOR VALVE

8

02957691

2

STRAIGHT ADAPTER

9

02964451

1

HOSE - TRACTOR TO EXTENSION CYL.

10

02964452

1

HOSE - TRACTOR TO EXTENSION CYL.

11

02045200

2

ELBOW ADAPTER

12

02270401

1

EXTENSION CYL.

13

02964418

1

HOSE - BULKHEAD TO TILT CYL.

14

61027400

1

STRAIGHT ADAPTER

15

00759947A

1

TILT CYL.

16

001627

1

BULKHEAD FITTING

17

02742500

2

BULKHEAD FITTING

18

02957460

1

HOSE - MOTOR RETURN

19

002478

1

HOSE - PRESSURE TO MOTOR

20

00751457

1

ADAPTER 90 DEG.

21

03200300

1

HOSE BIB

22

02949100

1

ADAPTER 90 DEG.
