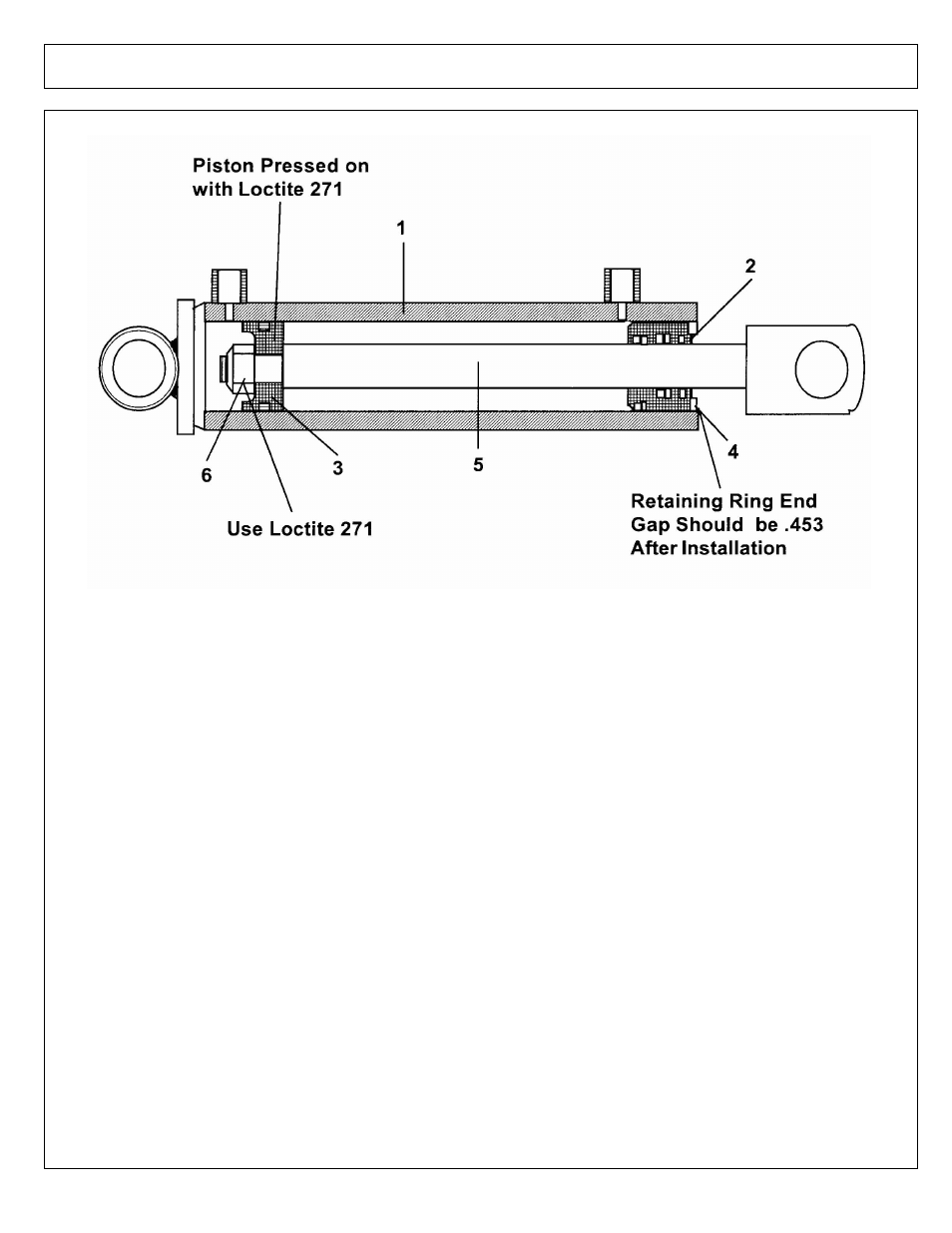

HYD CYL ASY - EXTENSION - PN 02270401A

ITEM

PART NO. QTY.

DESCRIPTION

1

02975909

1

BARREL WLD`MT

2

02975910

1

CYLINDER HEAD, GLAND

3

33309

1

PISTON

4

02721800

1

RETAINING RING

5

02975911

1

ROD

6

3047106

1

NUT

7

02975528

-

*SEAL KIT ( ITEMS 8THRU 14 )

8

*SEAL KIT

1

PISTON SEAL

9

*SEAL KIT

1

GLAND STATIC SEAL

10

*SEAL KIT

1

BACK-UP RING ( ROD )

11

*SEAL KIT

1

BACK-UP RING ( PISTON )

12

*SEAL KIT

1

ROD WIPER

13

*SEAL KIT

1

ROD STATIC SEAL

14

*SEAL KIT

1

ROD SEAL
