PARTS LIST -- LISTE DES PIÈCES -- LISTA DE PIEZAS
Nobles UltraGlide (06--04) 15

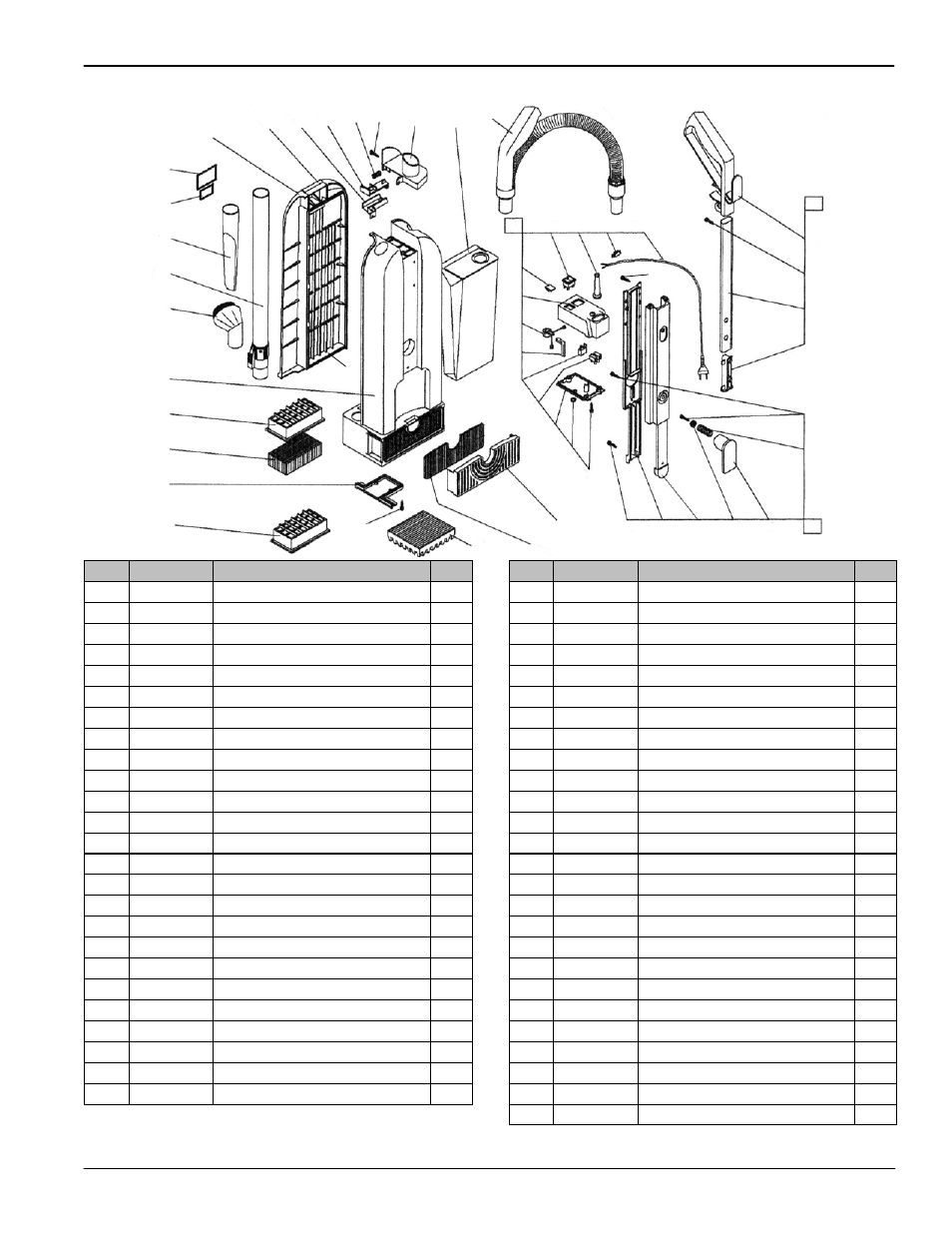

BAG HOUSING GROUP
1
4 5 6
7 8
9 10 11
12
26
31
13 14 15 16
18
17
19
20
21
22
23
24
25
32
33
34 35 36 37 38
27
28
29
30
40
41
42
43
44
45
46
47
48
49
3
2
50
51
39
8
REF PART # DESCRIPTION QTY.
∇ 1 1015712 COVER ASM., NOB HSG W/LBLS 1
Y
2 613280 LABEL, WARNING 1
Y
3 1015715 LABEL, FILTER IMPORTANT 1
4 1015595 BUTTON, HOUSING, BAG COVER 1
5 1015620 GUIDE, BUTTON 1
6 1015621 BUTTON, HOLDER, BAG 1
7 1015619 SPRING, BUTTON, BAG HOLDER 1
8 1015719 SCREW KIT, 3.9X16, KIT=20 PCS 1
9 1015618 ADAPTOR, BAG 1
10 1014505 D BAG, FLTR PCK= 8 BAGS/ 2 FLTR 1
11 1015651 D HOSE EXT., W/HANDLE GRIP 1
∇ 12 1015600 HOUSING ASM., SWITCH 1
Y
13 1015617 D SWITCH, MAIN, 15A 1
Y
14 1015607 STRAINRELIEF 1
Y
15 1015646 CLAMP, CORD 1
Y
16 1015647 D CORD, POWER 17/3X15M, YEL 1
Y
17 1015616 LENS, RED, BAG FULL 1
Y
18 1015603 HOUSING, SWITCH 1
Y
19 1015615 D SENSOR, VACUUM, W/LIGHT 1
Y
20 1015606 TUBE, SENSOR 1
Y
21 1015672 FILTER, ELECTRICAL, RFI 1
Y
22 130005 TERMINAL, BLOCK, 3 POLE 1
Y
23 1015708 COVER, HOUSING, SWITCH 1
Y
24 1015707 SEAL, ORG 1
Y
25 1015727 SCREW KIT, 3.9X32, KIT=20 PCS 1
REF PART # DESCRIPTION QTY.
∇ 26 1015711 HANDLE ASM. 1
Y
27 1015648 HANDLE 1
Y
28 1015726 SCREW KIT, 3.9X13, KIT=20 PCS 1
Y
29 1015649 TUBE, HANDLE, W/BUTTONS 1
Y
30 1015650 BUTTON ASM., HANDLE 1
∇ 31 1015710 PANEL ASM., FRONT, ELECTRICAL 1
Y
32 1015596 SPRING 1
Y
33 1015718 SCREW KIT, 3.5X16, KIT=20 PCS 1
Y
34 1015605 HOOK CORD, LOWER 1
Y
35 1015604 CLIP, SPRING, RING 1
Y
36 1015613 HANDLE ASM., FRAME 1
Y
37 1015614 COVER, HANDLE 1
Y
38 1015724 SCREW KIT, 3.9X9.5, KIT=20 PCS 1
Y
39 1015721 SCREW KIT, 3.5X16, KIT=20 PCS 1
40 1015608 GRILL, FILTER 1
41 1015609 D FILTER KIT, EXHAUST, KIT=10 1
42 1015611 FILTER, FOAM 1
43 1016503 FILTER, H.E.P.A. (OPTIONAL) 1
44 1015622 CONVEYOR 1
45 1015610 D FILTER, MOTOR, PROTECTION 1
46 1015668 HOUSING, FILTER 1
47 1015597 HOUSING BAG, NOBLES 1
48 1015655 BRUSH, DUSTING 1
49 1015652 D WAND EXT., TELESCOPIC 1
50 1015654 TOOL, CREVICE 1
51 1015716 D GASKET, COVER, BAG HOUSING 1
∇ ASSEMBLY / ENSEMBLE / CONJUNTO D RECOMMENDED STOCK ITEM / ELÉMENTS DE STOCK RECOMMANDÉS / PIEZAS RECOMENDADAS EN ALMACÉN
Y
INCLUDED IN ASSEMBLY / Y COMPRIS EN ENSEMBLE / INCLUIDO A CONJUNTA
