Vollrath F122 User Manual
Page 13
7
K.
After 5 minutes, drain the sanitizer solution from
the machine into a bucket and discard the solution.
3.4 DISASSEMBLY OF MACHINE PARTS
Inspect for worn or broken parts each time the machine
is disassembled. Replace any worn or broken parts to
ensure safety to both the operator and the customer and
to maintain good machine performance and a quality
product. Frequency of cleaning must comply with the
local health regulations.
To disassemble the machine, refer to the following steps:
A.
Pull out the spigot pin by its ring. Remove the
spigot handle.
B.
Remove front door by turning the circular knobs
and then pulling door off the studs.
NOTE
When removing front door, entire door and stator
assembly will come out as well.
C.
Remove the torque rod from the stator assembly.
D.
Remove the quad ring from the groove in front
door.
E.
Remove the stator bar. Remove the small white
bushing.
F.
Remove the o-rings at the front and back of the
stator bar by fi rst wiping off the lubricant using
a clean paper towel. Then squeeze the o-ring
upward with a dry cloth. When a loop is formed,
roll the o-ring out of the groove.
G.
Remove the auger support bushing.
H.
Turn the spigot body until the ice breaker bar can
be removed. Remove breaker bar.
I.
Remove the spigot body from the front door.
J.
Remove the o-rings (2) from the spigot.
K.
Remove the auger assembly from the freezing
cylinder and remove the auger blade. Remove
the rear seal and o-ring from the auger.
L.
Remove the drain tray, drip tray and drip tray grid.
M.
Remove the hopper cover and disconnect the
autofi ll adapter from the cover by pulling out the
retaining clip.

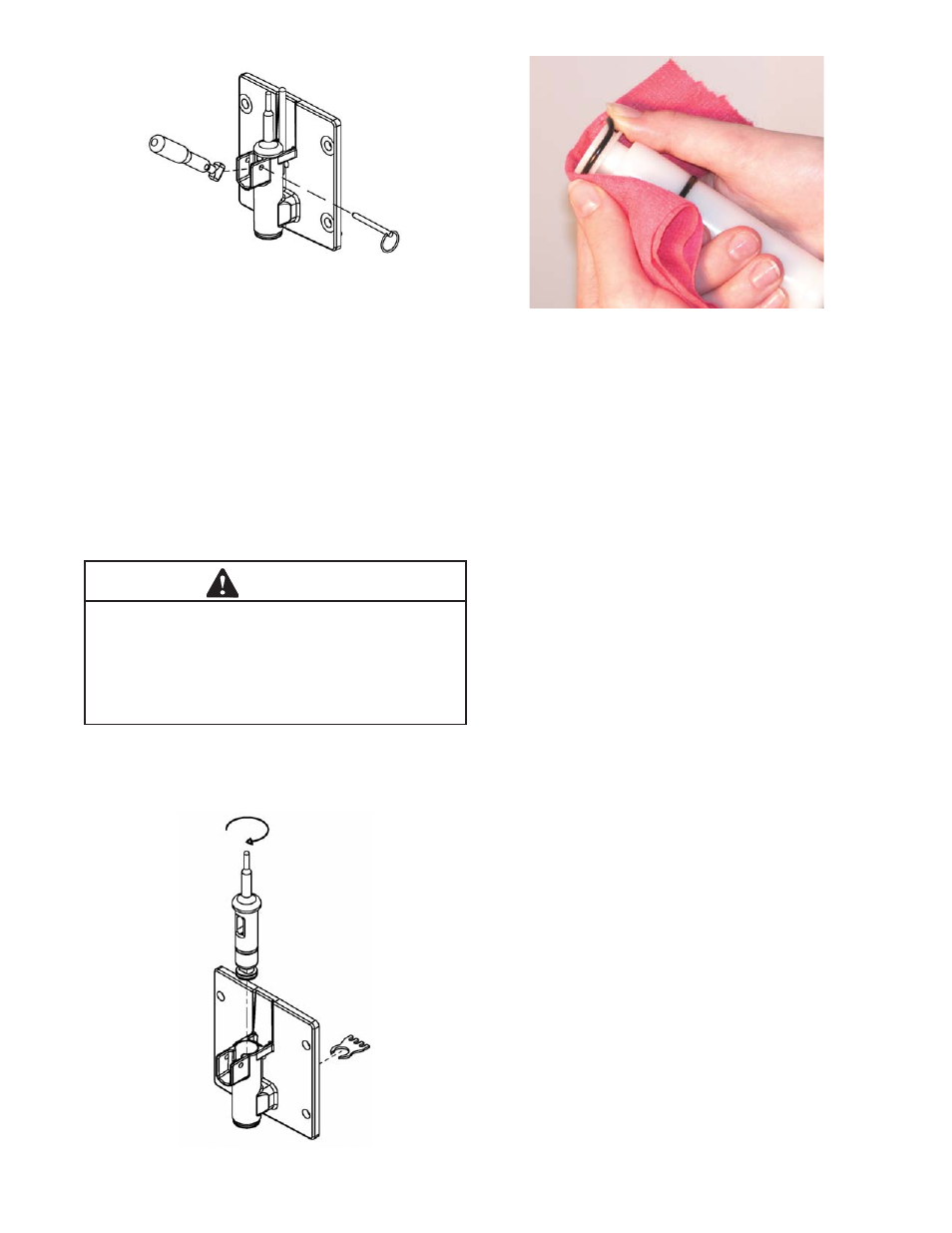

Figure 3-5 Removing O-Ring
Figure 3-4 Spigot and Ice Breaker Bar Removal
Figure 3-3 Remove Spigot Pin
WARNING
High voltage will shock, burn or cause death. Make
sure the display shows the freezing cylinders and
pump are off. If they are not, press the On/Off button
and Pump button to turn them off prior to disas-
sembling for cleaning or servicing. Do not operate
machine with panels removed.
