4
2.4 AUTO FILL PUMP INSTALLATION
The auto fi ll pumps are powered by water and have a
fi xed orifi ce that delivers water and syrup to the machine
at an exact ratio. The auto fi ll kit is designed for use with
Bag In Box (BIB) concentrated syrup.
Follow these instructions to properly install the pump.
Repeat for each side.
A. Route the clear tubing with the BIB connector
to the BIB. If there is excess tubing, trim it and
reconnect it to the BIB connector.
B. Route the water line tubing to the shutoff valve of
the water supply. Trim excess tubing and connect
it to the shutoff valve.
C. Route the water line and syrup line tubing (3/8”
braided tubing) from the pump to the machine.
D. Route the water line tubing to the tube exiting the
rear panel. Trim excess tubing and connect.
E. Route the syrup line to the tubing connected to
the adapter on the hopper cover. Trim excess
tubing and connect.
F. Check that the clear tubing coming out of the
rear panel is connected to the plug in the hopper
cover. If not, connect it using a clamp in the kit.
G. Check that all tubing connections are properly
clamped, fi ttings are tightened and the tubing is
not kinked.
to
machine
water
inlet
to
BIB

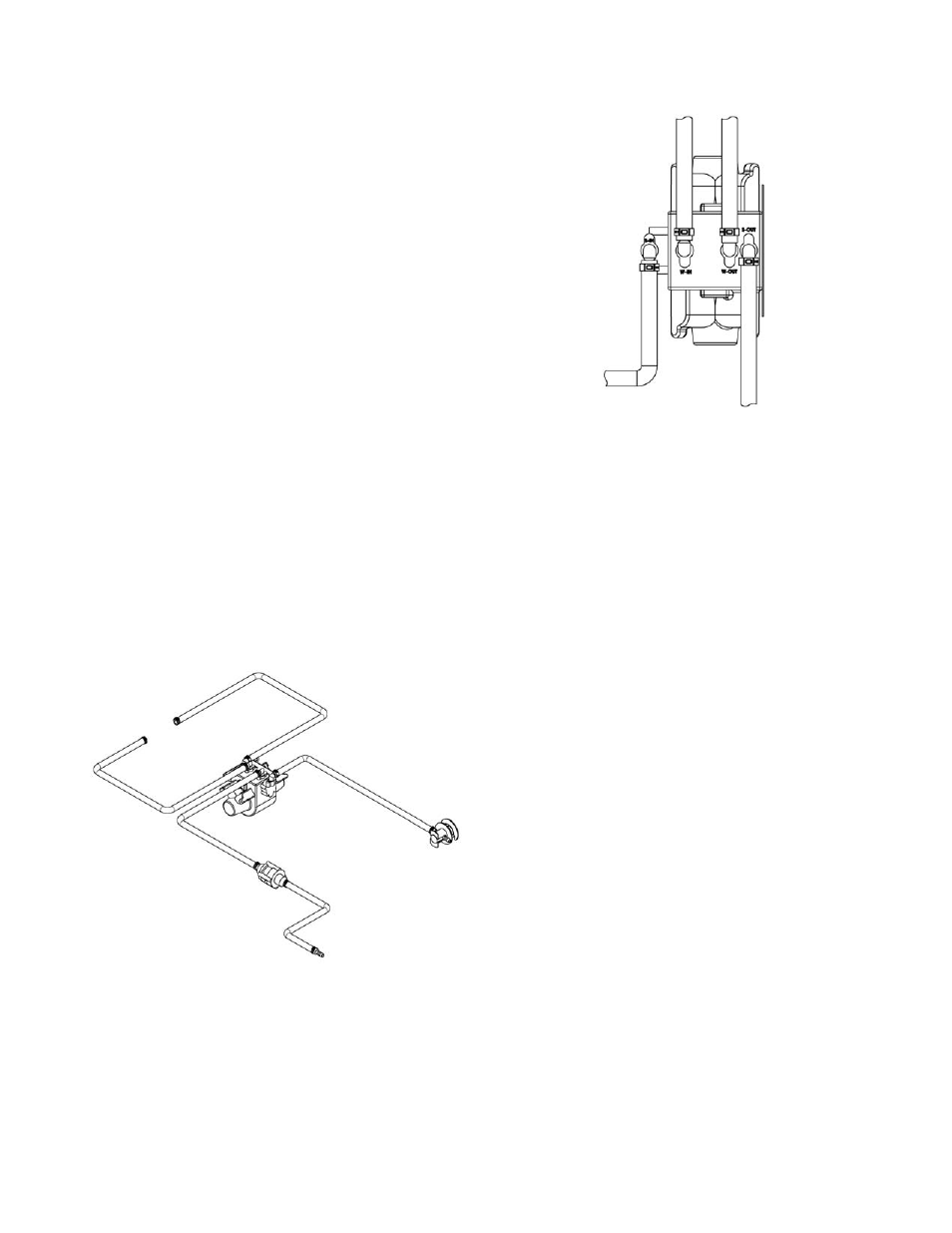

Figure 2-4 Auto Fill Pump Tubing Layout
water outlet
to machine
water inlet
from shut-
off valve
syrup outlet
to machine
syrup inlet
from BIB
this side
of pump is
mounted to
the BIB shelf
Figure 2-5 Top View of Pump
