English – Vollrath Hot Cold Drop-ins User Manual
Page 5

C
ountertop
W
arming
and
d
isplay
5
English
O
peratOr
’
s
M
anual

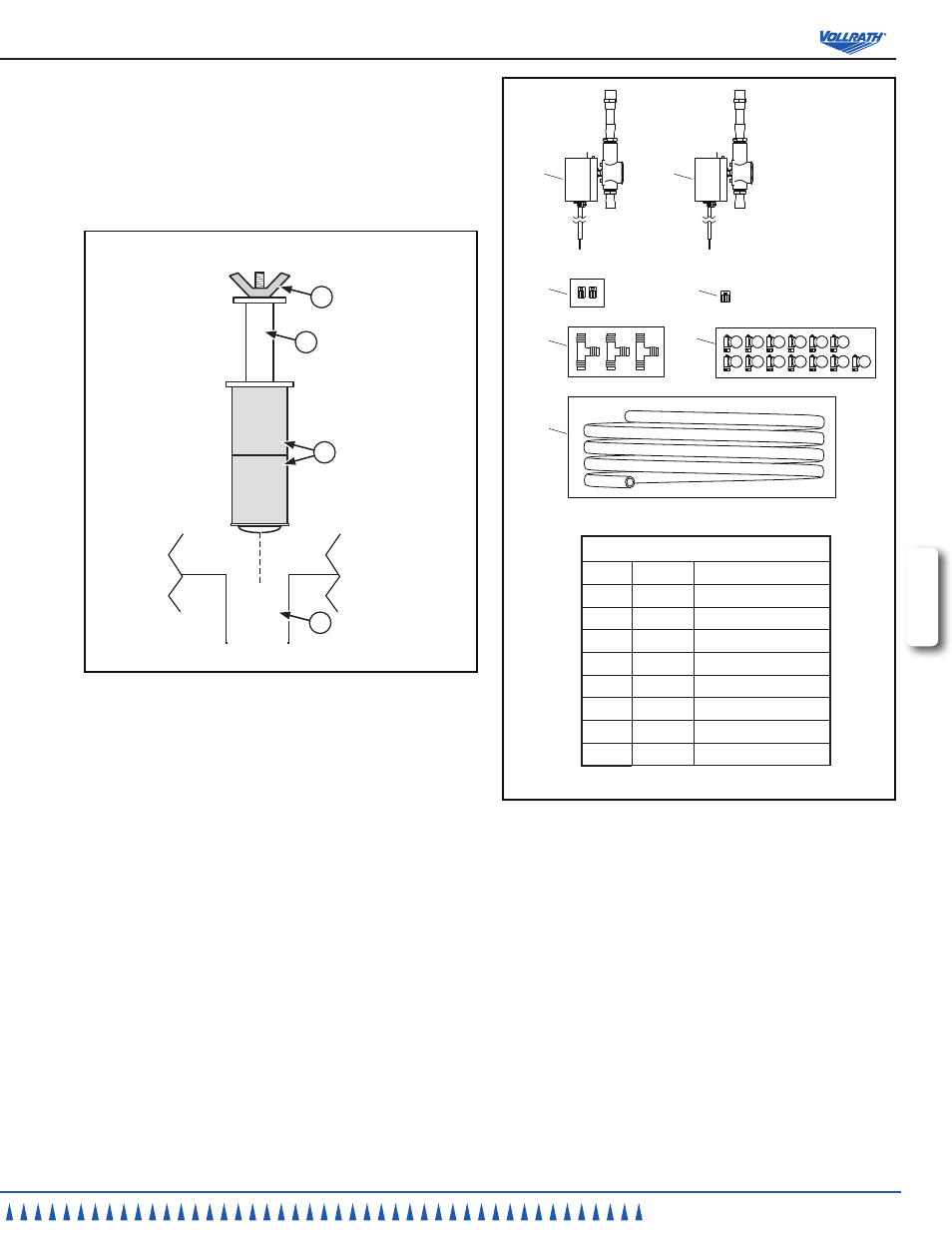

Operation of the Manual Drain Plug:
To install the manual drain plug:
1. Install the drain plug assembly into the drain hole of the well (C). See
Figure 7.
2. If necessary hold shaft (A) and tighten the wing nut (B). This will expand
the rubber collars (D). Turn the wing nut until it is snug.
A
C
B
D
Figure 7. Manual Drain Plug.
To remove the manual drain plug:
1. If necessary hold shaft (A) and loosen the wing nut (B). This will contract
the rubber collars (D). Turn wing nut until it is loose.
2. Remove the drain plug from the drain hole in the well (C).
2
1
3
6
6
4
5
36672Auto Drain Kit
Callout Quantity
Description
1
13
Hose Clamps
2
3
“T” Fittings
3
Bulk
7/8” I.D. Drain Hose
4
1
Connector, 3 Wire
5
2
Connector, 2 Wire
6
2
Drain Valve Assembly
N/S
1
48” White Wire, 16 GA
N/S
2
48” Blue Wire,16 GA
