IMPORTANT

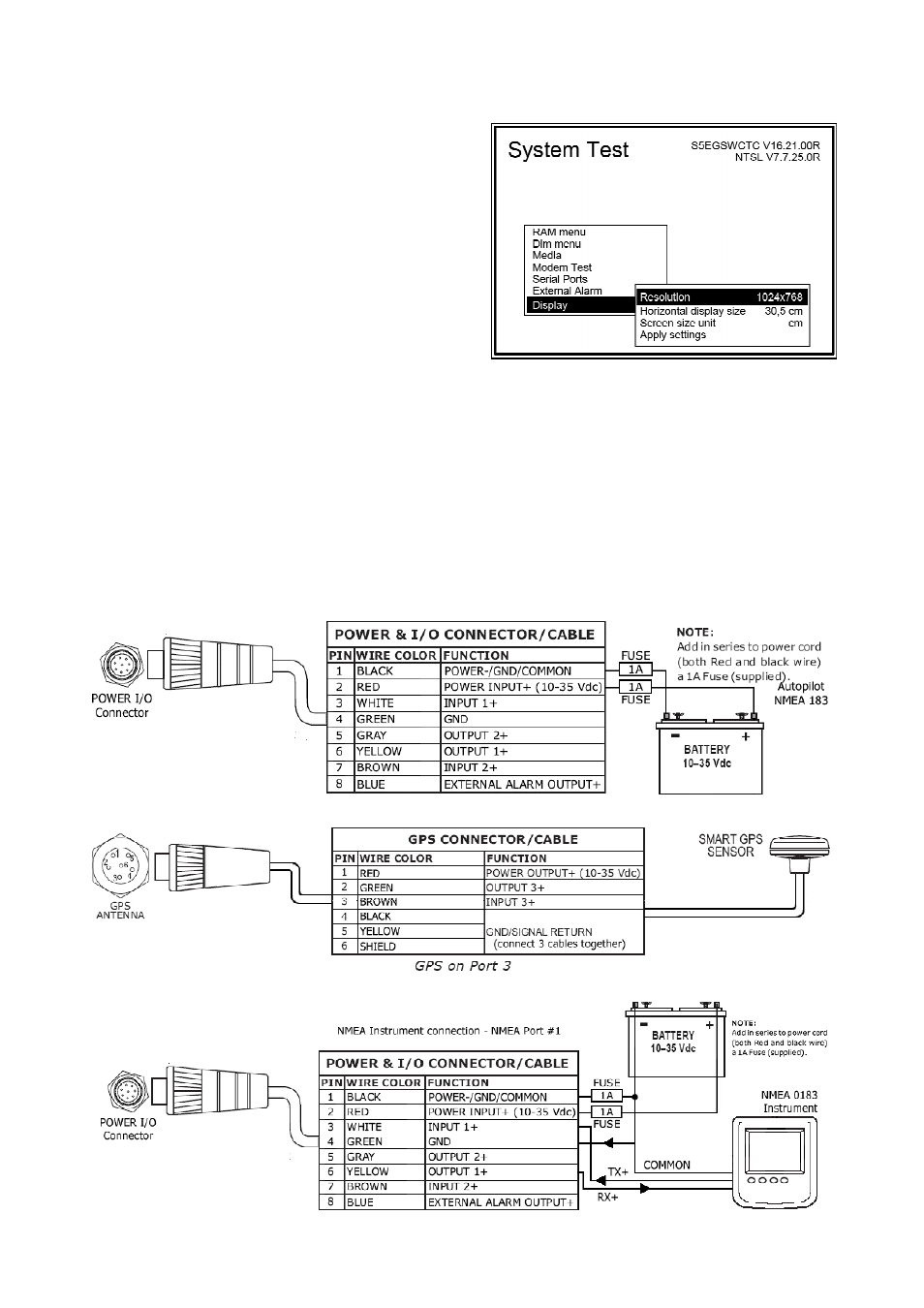

HOW CAN I CHANGE THE OUTPUT SCREEN RESOLUTION?

The chart plotter has different output
resolution, to adapt it at more screen possible
to select the desired screen resolution, the unit
must turned on into system test mode.

Make sure the chart plotter is turned Off. While
pressing and holding any other key, turn the
chart plotter on.

From the System Test menu:

select “Display”, press ENTER button (8), select “Resolution”

now it's possible the change the resolution. To confirm the choice select “Apply settings”.
After this the unit will be restarted with the new resolution.

Supply and Fuses

In order to protect the chart plotter video board, please make sure that the power cables of
the monitor and of the chart plotter are physically separated, with protection against
electrical discharge.

Supply connection

GPS Connection

NMEA Instrument Connection
