Revolabs Fusion Microphone System - Tandberg Edge 75/85/95 MXP User Manual
Page 2
Connecting the Cables
C
ONNECTING A REVOLABS FUSION TO
T
ANDBERG
E
DGE
75/85/95
MXP
VIDEO CODEC

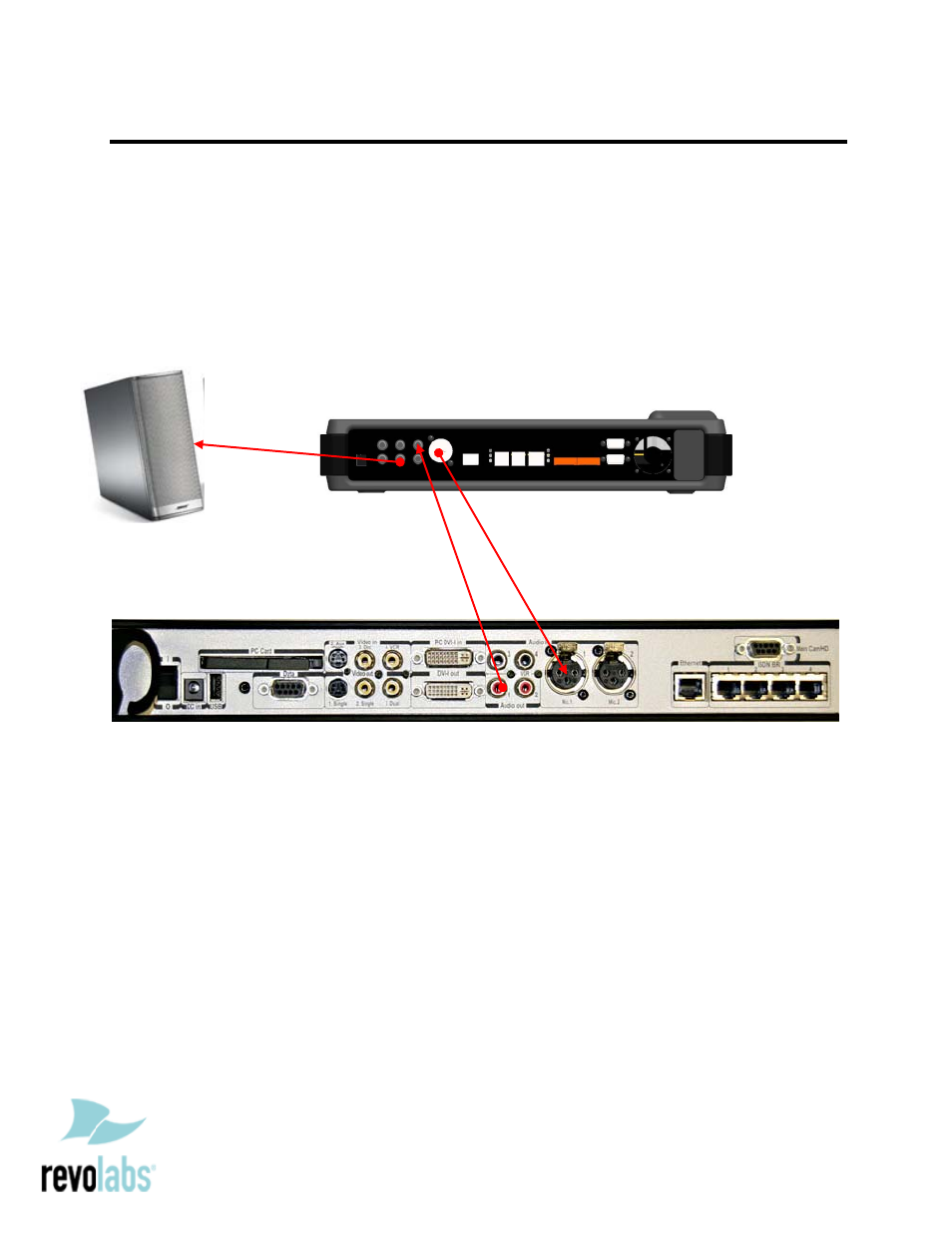

1. Connect a Male RCA-RCA audio cable between the “Conf. In” port on the Fusion
and the “VCR 1” port on the Edge MXP.
2. Connect a Male XLR audio cable between the “Mic Conf. Out” port on the Fusion
and the “Mic 1” port on the Edge MXP.
3. Connect a Male RCA audio cable between the “Room Out” port on the Fusion and
the Speakers.
Note: The speakers used for audio and video conferencing
with this configuration must be connected to the Fusion for
proper echo cancelation.
