Revolabs Fusion Microphone System — Polycom QDX 6000 User Manual
Page 2

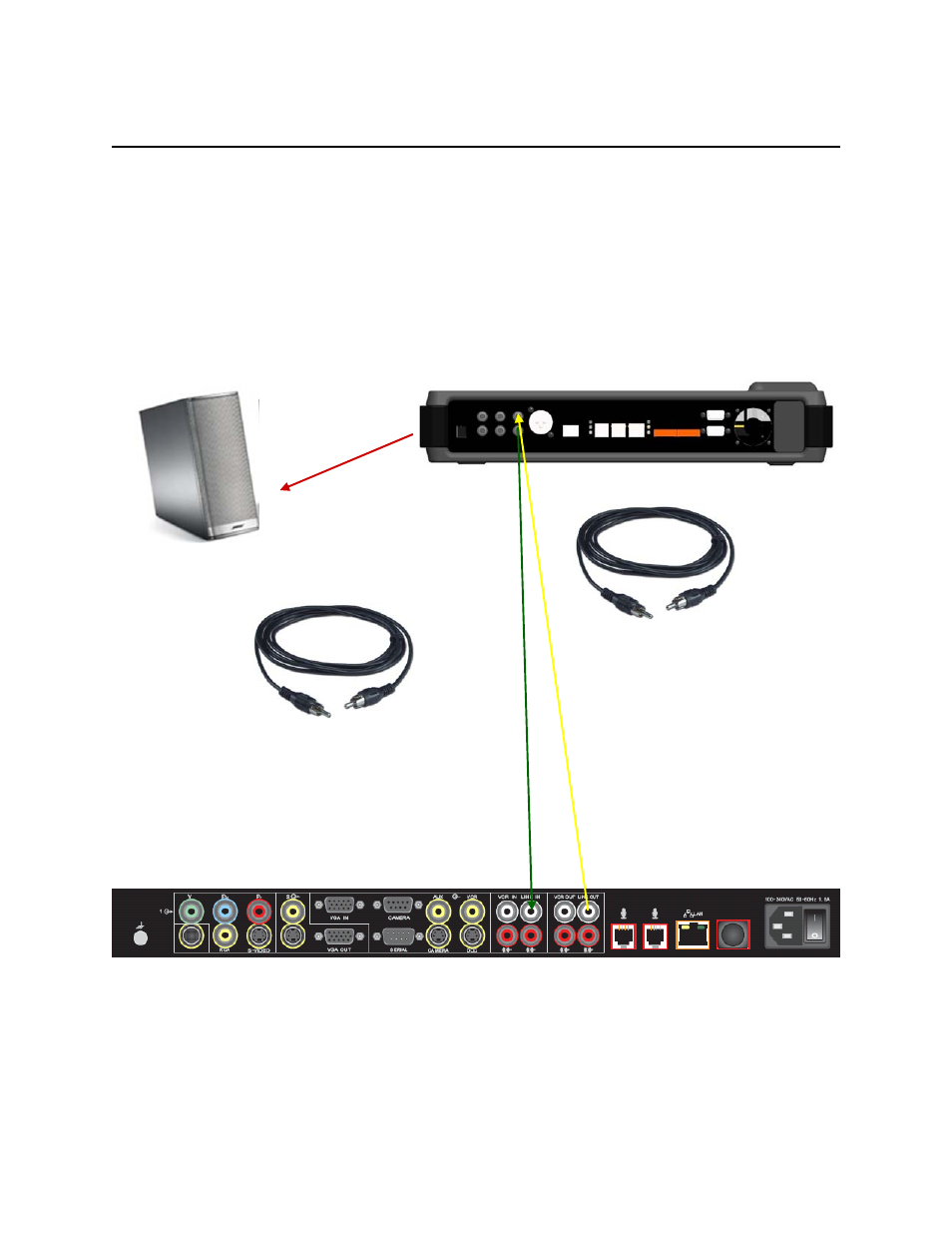

Connecting the Cables
1. Connect a Male RCA to RCA audio cable between the RCA “CONF OUT” port on
the Fusion and the Red “LINE IN” port on the QDX 6000.
2. Connect a Male RCA to RCA audio cable between the “CONF IN” port on the
Fusion and the white “LINE OUT” port on the QDX 6000.
3. Connect a Male RCA audio cable between the “Room Out” port on the Fusion
and the Amplified Speakers.
3
1
NOTE: You must use your Fusion remote control to control the room volume
for both the audio and video conference calls. Adjusting the volume in the
video codec will cause echo.
2
