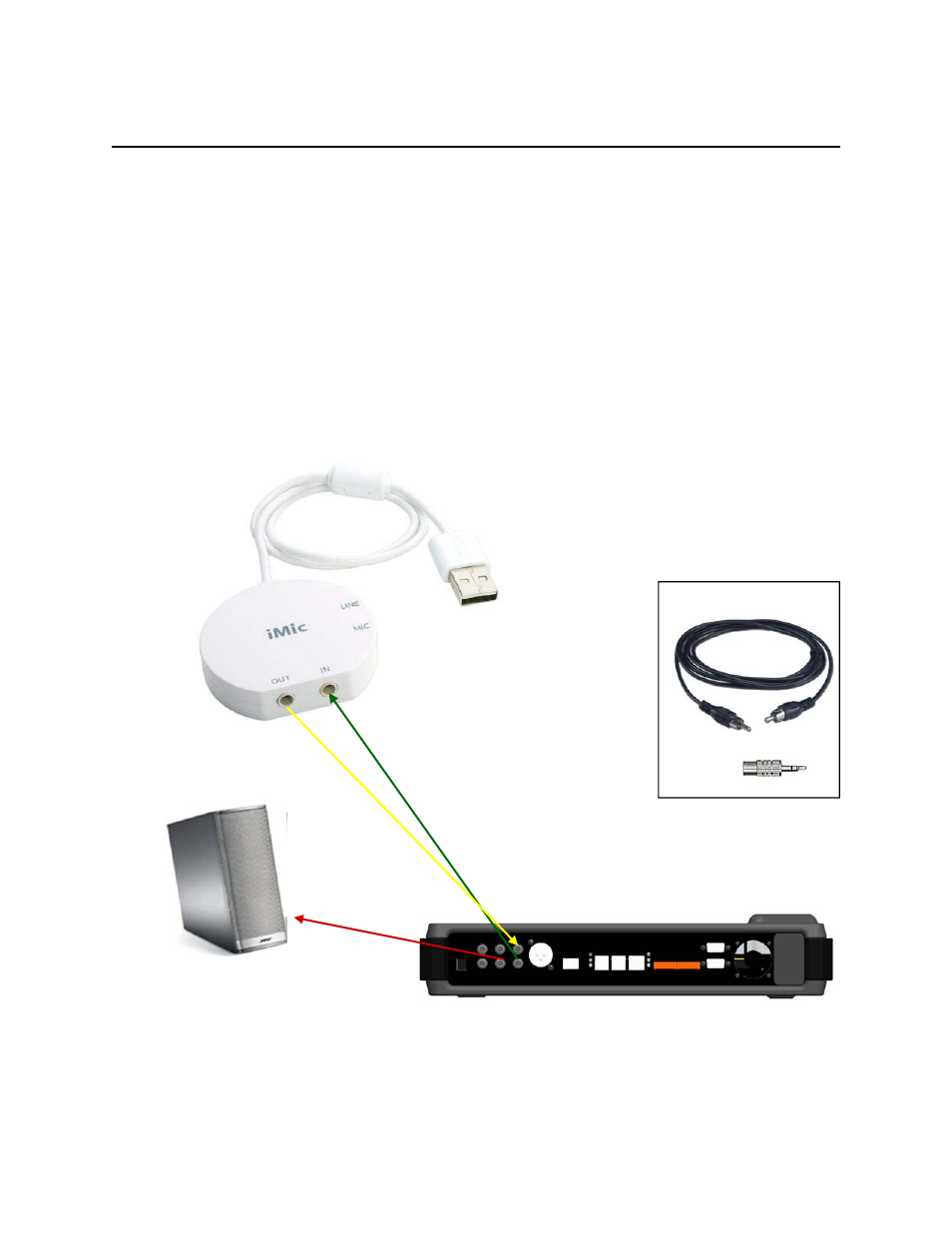

Connecting the Cables to the Griffin iMic USB Audio Adapter
1. Attach one RCA female to 1/8” stereo male adapter to the end of each RCA
cable
2. Connect the Male RCA to RCA audio cable with 1/8” adapter between the RCA
“CONF OUT” port on the Fusion and the 1/8” IN port on the iMic.
3. Connect the Male RCA to RCA audio cable with 1/8” adapter between the
“CONF IN” port on the Fusion and the 1/8” OUT port on the iMic.
4. Verify that the iMic LINE/MIC switch is set to LINE
5. Connect a Male RCA audio cable between the “Room Out” port on the Fusion
and the Amplified Speakers.
5
NOTE: You must use your Fusion remote control to control the room volume
for both the audio and video conference calls. Adjusting the volume with the
PC will cause echo.
4
3
2
1
3
2
