Connecting the Cables
2

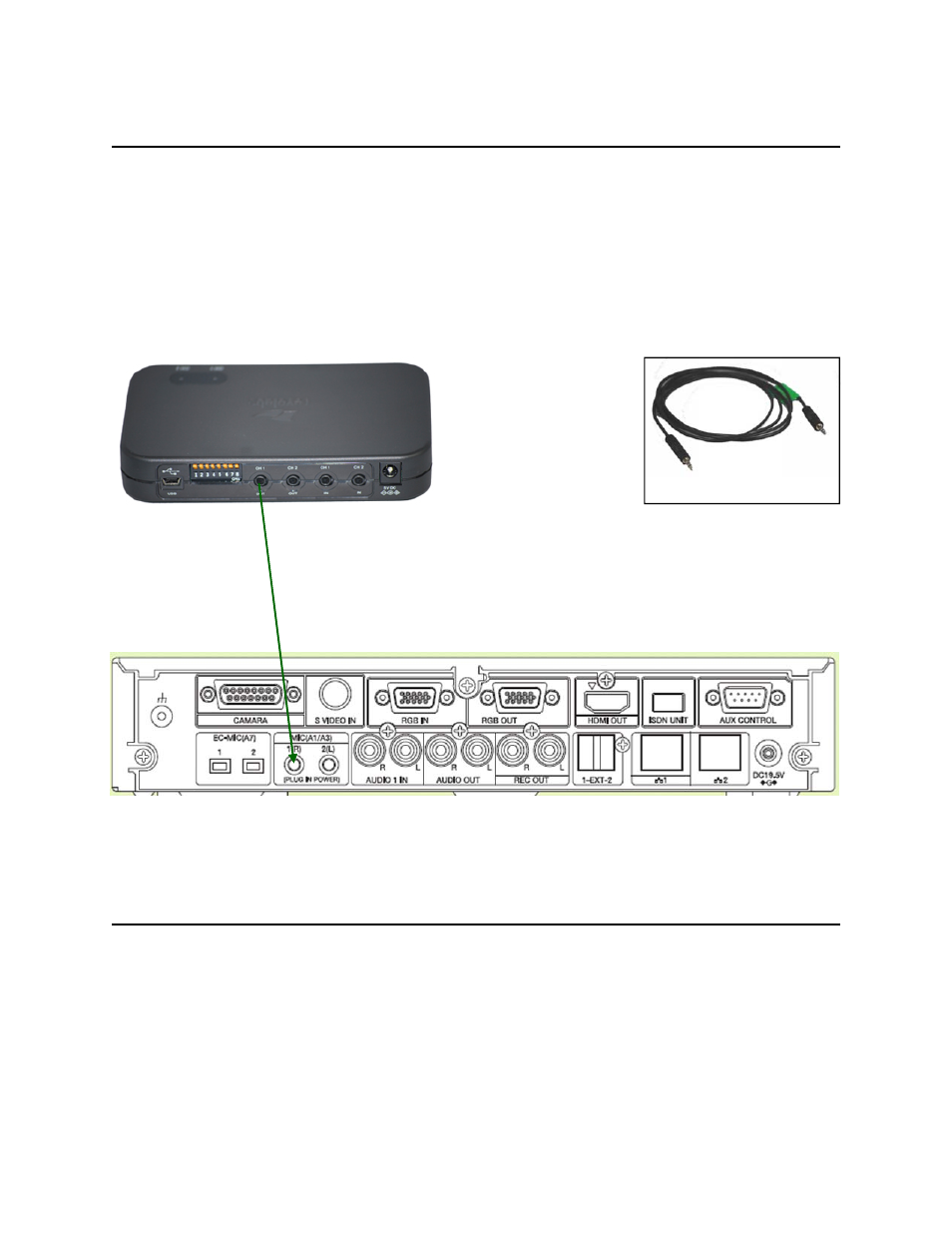

1. Insert the unbalanced 3.5mm male connector to the CH 1 OUT port on the
Revolabs Single or Dual Channel System. If using a Single Channel, DIP Switch
#1 should be “OFF”. If using a Dual Channel, DIP Switch #1 should be “ON”.
2. Insert the other 3.5mm male connector into the “MIC (A1/A3) 1R” port on the
Sony XG-80.
3. Verify that DIP Switch #3 (mic/line) is “ON”
1. Push the TOOLS button on the remote control
2. Select SETUP
3. Select AUDIO 1
4. Select AUDIO INPUT as MIC
5. Verify that Mic (A1/A3) has a checkmark
6. Turn ECHO CANCELLER to ON
Configuring the Sony XG-80 Video Codec
2
