Revolabs HD Single & Dual Channel System — LifeSize Room User Manual
Page 2

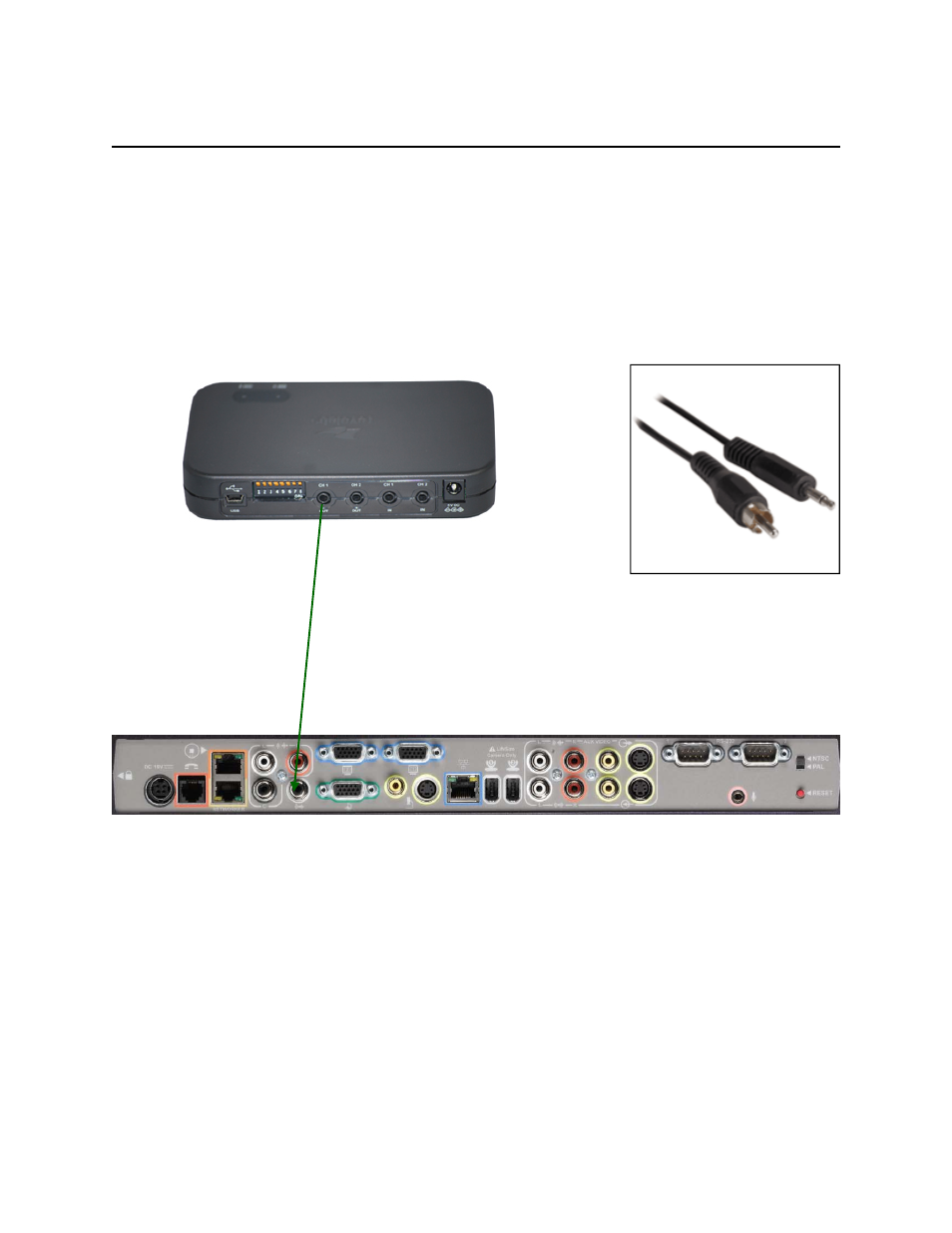

Connecting the Cables
Configuring the LifeSize Room Video Codec
1. Push the BLUE button on the remote control for SYSTEM MENU
2. Select ADMINISTRATOR PREFERENCES and enter password (if necessary)
3. Select AUDIO
4. Select LINE IN (AEC)
5. Adjust ACTIVE MICROPHONE VOLUME to 10
1. Insert the unbalanced 3.5mm male connector to the CH 1 OUT port on the
Revolabs Single or Dual Channel System. If using a Single Channel, DIP Switch
#1 should be “OFF”. If using a Dual Channel, DIP Switch #1 should be “ON”.
2. Insert the RCA male connector into the LifeSize Room LINE IN.
3. Verify that DIP Switch #3 (mic/line) is “OFF”
2
2
