Revolabs HD Single & Dual Channel System — LifeSize Express User Manual
Page 2

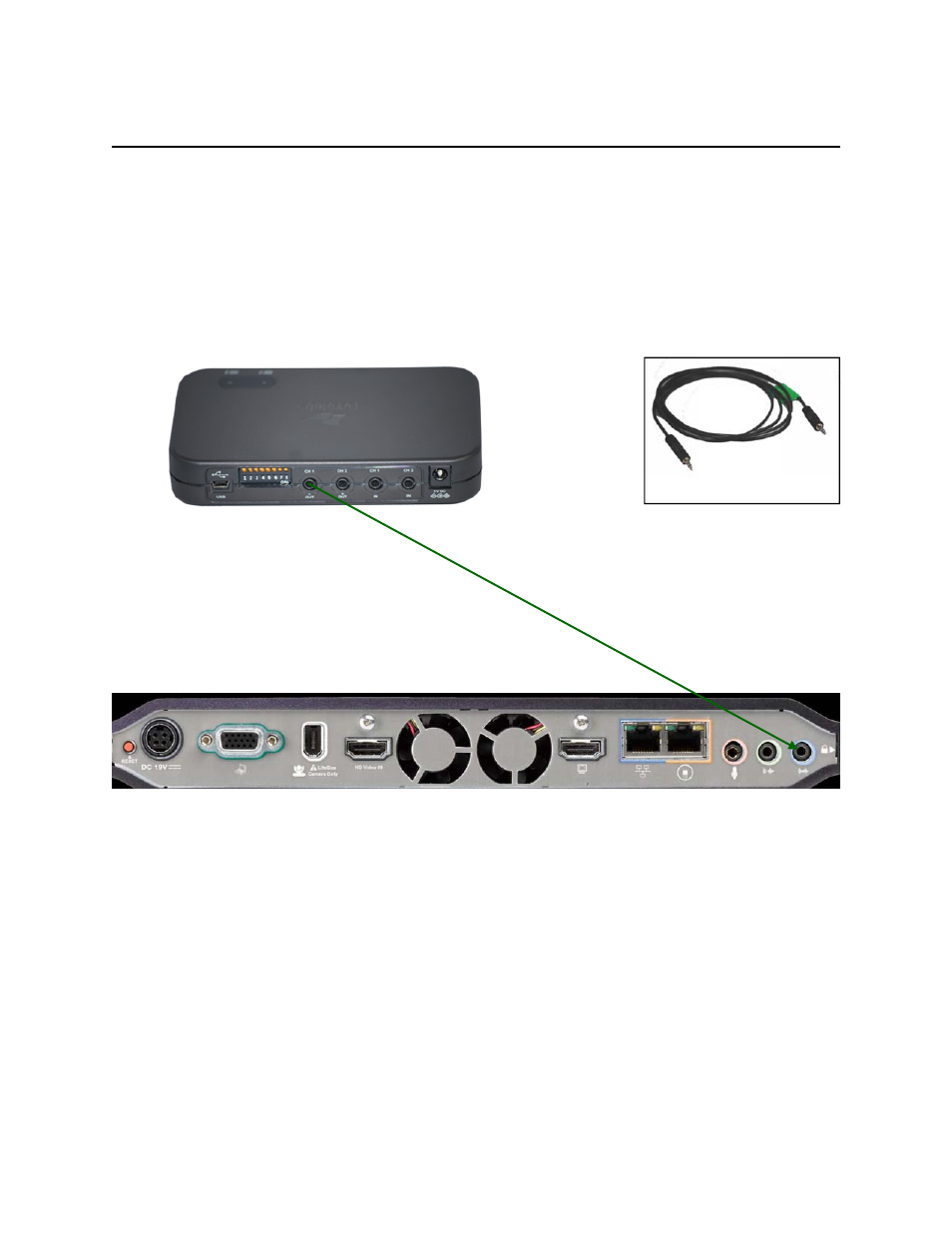

Connecting the Cables
1. Connect one end of the 3.5mm balanced male cable to the CH 1 OUT port on
the Single or Dual Channel System. If using a Single Channel, DIP Switch #1
should be “OFF”. If using a Dual Channel, DIP Switch #1 should be “ON”.
2. Connect the other side of the 3.5mm balanced male cable into the LifeSize
Express LINE IN
3. Verify that DIP Switch #3 (mic/line) is “OFF”
2
Configuring the LifeSize Express Video Codec
1. Push the BLUE button on the remote control for SYSTEM MENU
2. Select ADMINISTRATOR PREFERENCES and enter password (if necessary)
3. Select AUDIO
4. Select LINE IN (AEC)
5. Adjust ACTIVE MICROPHONE VOLUME to 10
2
