Rev 1.1 2/12/10

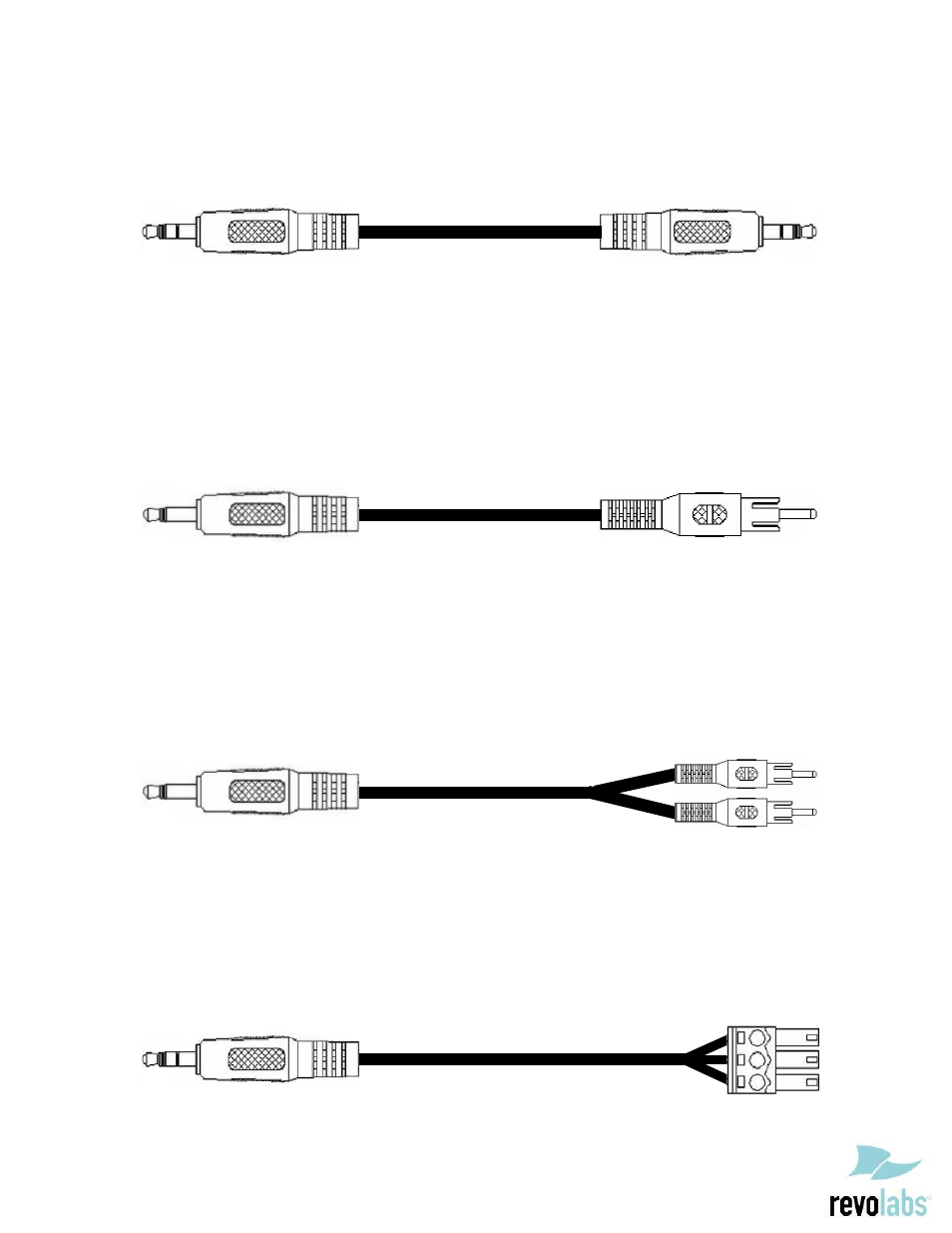

3.5mm Balanced Male Connector to 3.5mm Balanced Male Connector

Part#

07-35MBTO35MB-01

Tip = Positive +
Ring = Negative -
Sleeve = Shield (GND)

Tip = Positive +

Ring = Negative -

Sleeve = Shield (GND)

3.5mm Unbalanced Male Connector to RCA Male Connector

Part# 07-35MUTORCA-01

Tip = Positive +
Sleeve = Shield (GND)

Tip = Positive +

Sleeve = Shield (GND)

3.5mm Unbalanced Male Connector to Dual RCA Male Connector

Part# 07-35MUTODRCA-01

Tip = Positive +
Sleeve = Shield (GND)

Tip = Positive +

Sleeve = Shield (GND)

Both connectors are equal.

3.5mm Balanced Male Connector to 3-Pin Mini Phoenix Connector

Part# 07-35MBTOMPHX-01

Tip = Positive +
Ring = Negative -
Sleeve = Shield (GND)

Left = Positive +

Center = Negative -

Right = Shield (GND)
