4-2
Issue 2 December 1995
Hardware Installation
Connect an Analog Line to the Modem
This task should be performed by the AT&T installation technician and the
customer or the customer’s switch technician.
The SID contains an internal modem that allows for remote site access and
maintenance. You must connect an analog line from the switch to the remote
modem to allow for maintenance. Connect the analog line to the switch before
the AT&T installation technician arrives.
Use the following procedure to connect the analog line to the modem.
1. Connect the analog line to the MODEM port on the SID, as shown in Figure
Proceed to the next task.

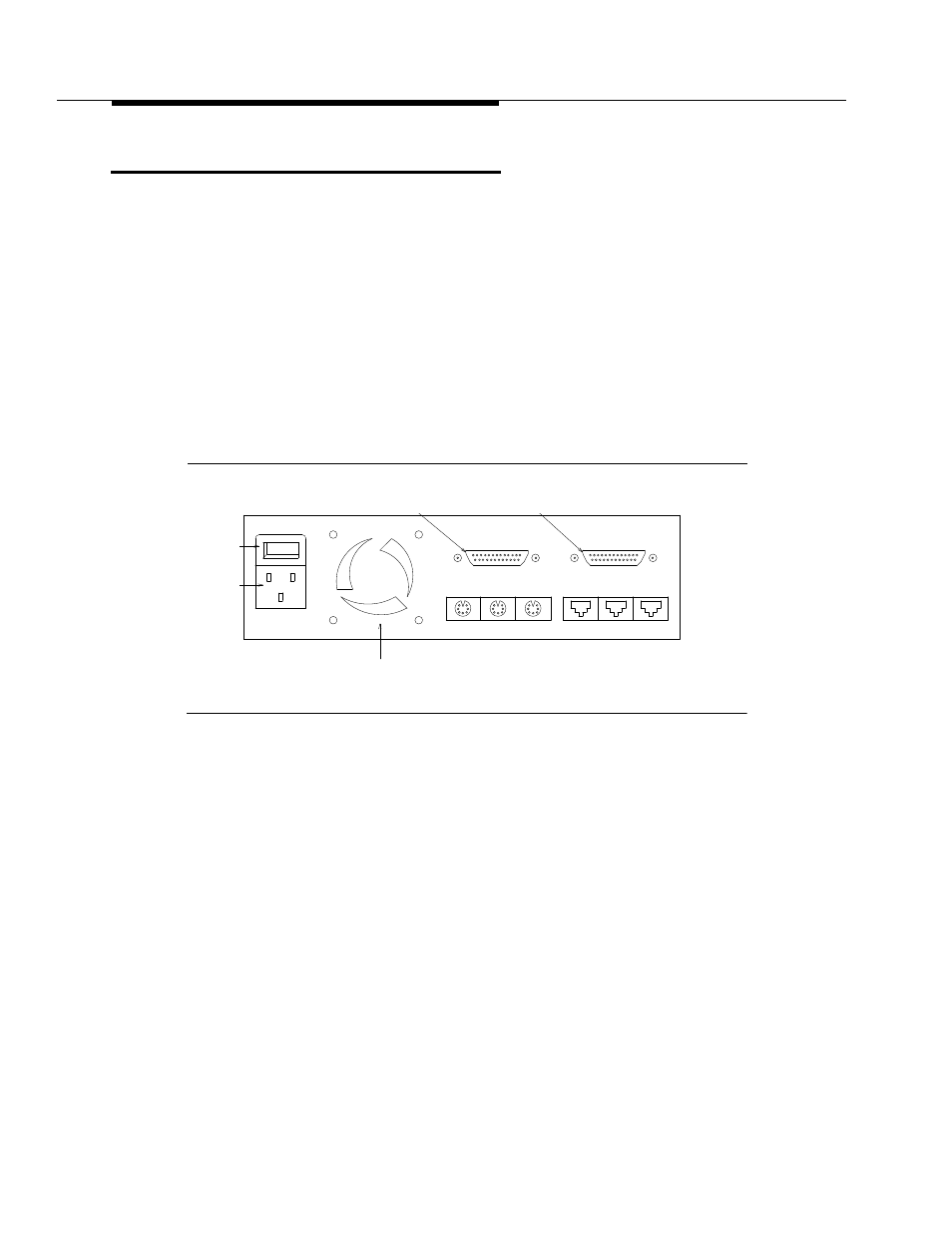

Figure 4-1.
Back View of the SID
25 Pin
25 Pin
(Fan Outlet)
Link A
Link B
Diag
Net B
Net A
Line B
Line A
Modem
115-230V AC
50/60 Hz
Power
Cord
Outlet
(Male)
Power
Switch
