2.2 Front
Panel

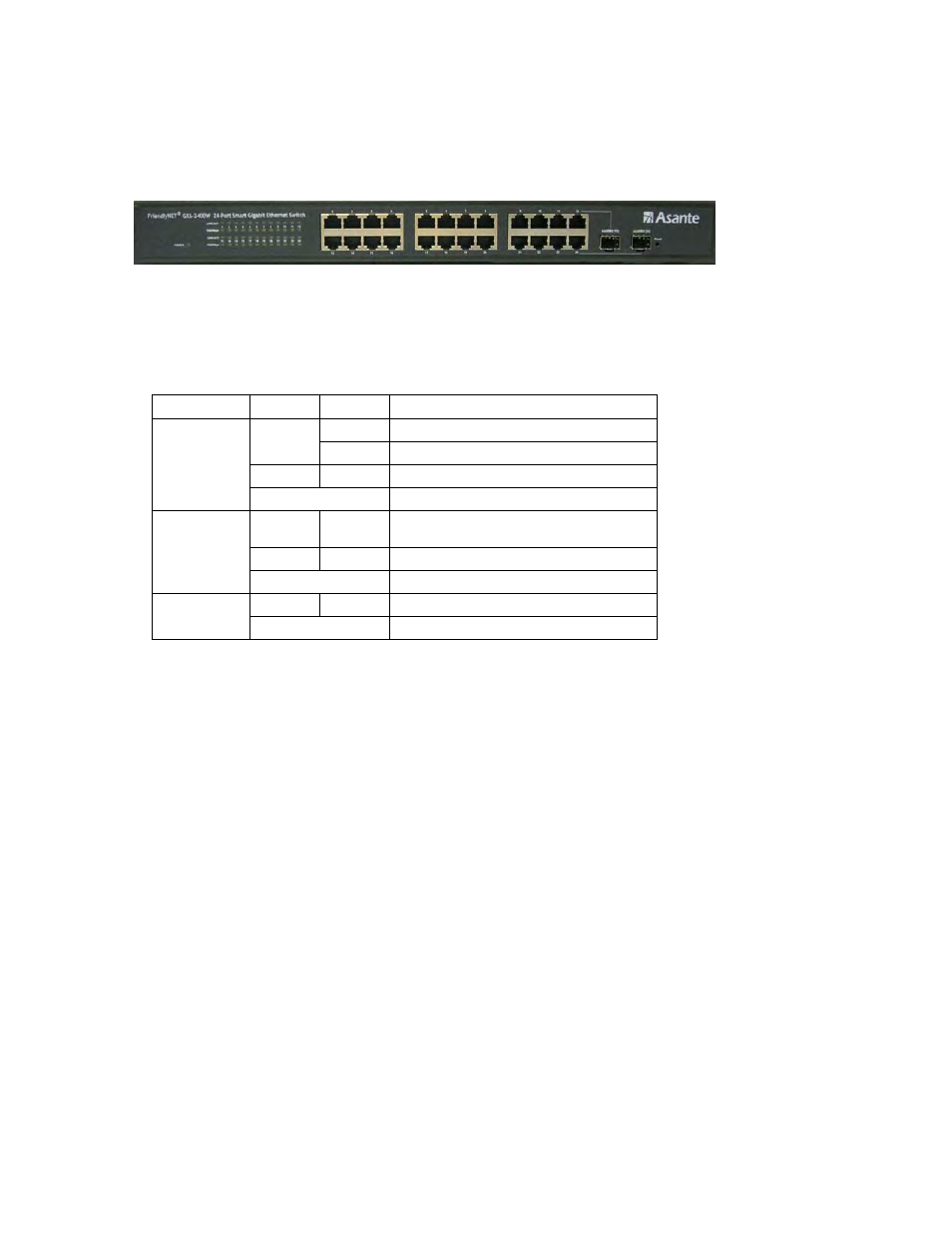

The front panel includes LED indicators that show the system and port status.
Front panel labels and LEDs
Label Color
Status
Description
On
Unit is powered on
Green
Flashing
Self-test, INIT, or downloading
Amber
On
Abnormal temperature or voltage
POWER
Off No
power
Green On
Link (RJ-45 or SFP) is present; port is
enabled
Flashing
Data is being transmitted/received
LINK/ACT
Off
No Ethernet link
Amber On
1000Mbps
1000Mbps
Off
100/10Mbps if LINK/ACT is on
Page
8
GX6-2400W User’s Manual
