4 . 9 A d m i n

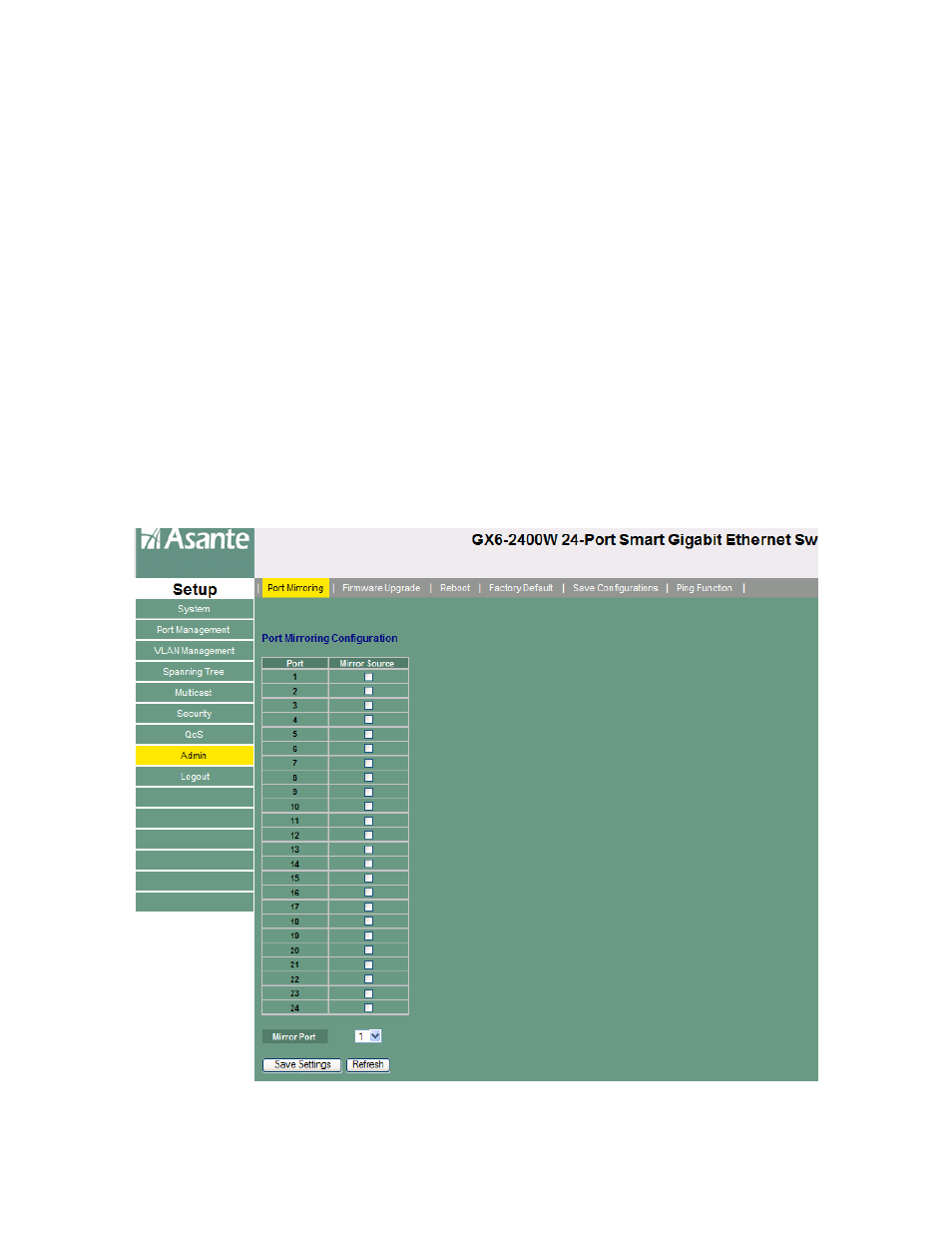

4.9.1 Port Mirroring
Any port can be the source for a mirror operation. In the “Mirror Source” column there is a box
corresponding to each specific port number. When a box is clicked, a check mark appears. This
enables that port to be the source. Near the bottom of the page on the “Mirror Port” row use the
selector to designate the mirror port. This is the port the sourced information will be mirrored
to.
Once the settings are complete be sure to click the Save Settings button to invoke the
function.
Page 40 GX6-2400W User’s Manual Asante
