2-23
Hardware Setup

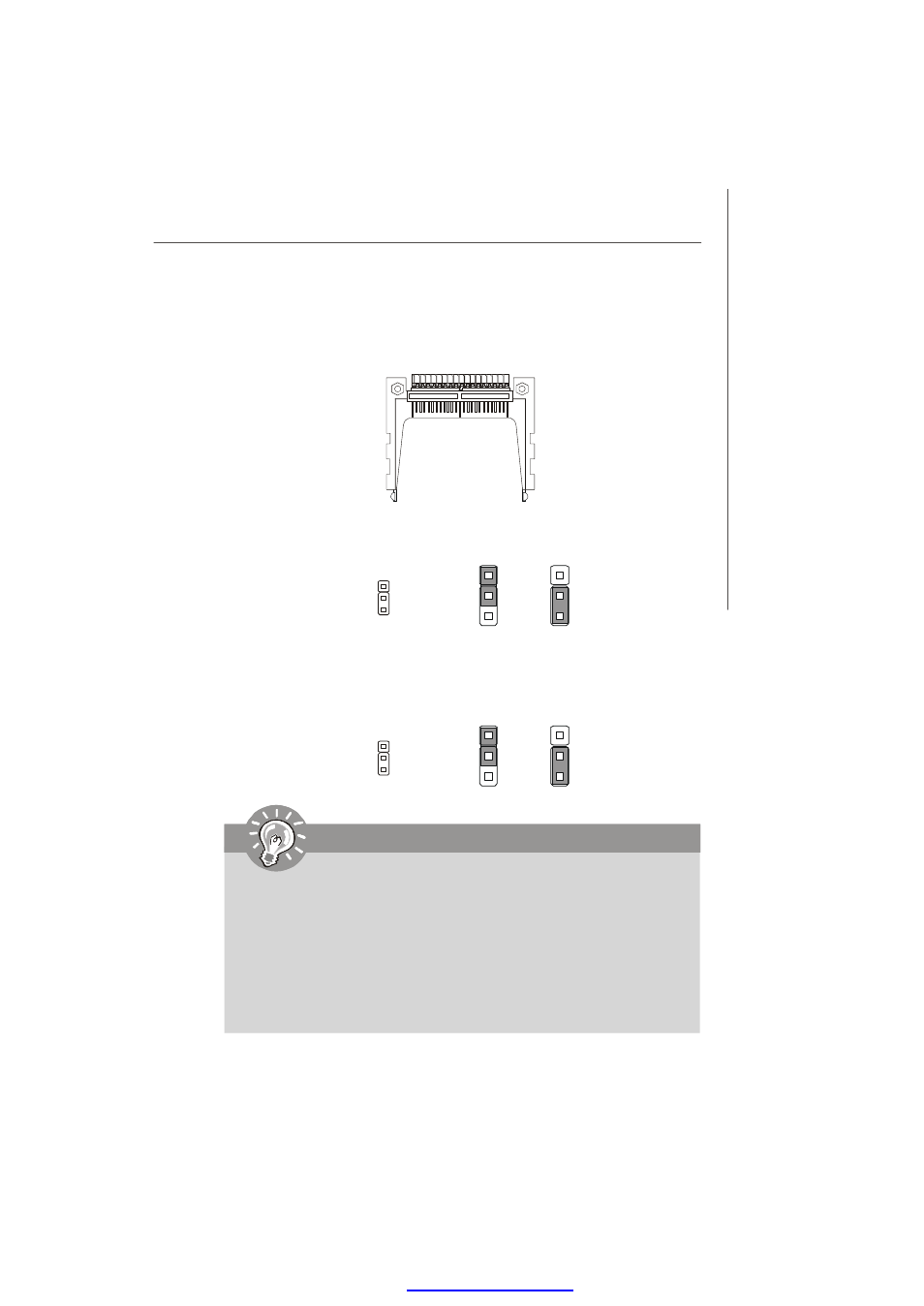

CompactFlash Card Slot: CF1 (Optional)
This CompactFlash slot shares one channel of the IDE controller. You can install one
CompactFlash typeI / type II device.
CF1
Important
* The CF1 slot and the IDE1 connector shares and uses the same channel. CF1
and IDE1 can support up to 2 IDE devices without CF device or 1 IDE device
with 1 CF device.
* If you install two IDE devices, you must configure the second drive to Slave
mode by setting its jumper. Refer to the hard disk documentation supplied by
hard disk vendors for jumper setting instructions.
* If you install one IDE device with ATA133 IDE cable and one CF device, you
must configure the CF drive to Master mode by setting jumper JCF_SEL1.
CF only supports Master mode by using ATA133 IDE cable. CF only supports
Slave mode by using ATA33 IDE cable.
CF Mode Selecting Jumper: JCF_SEL1
This jumper is used to select Master/Slave mode of the CF device.
CF Voltage Selecting Jumper: JCFV_SEL1
This jumper is used to select the operating voltage of the CF device.
JCF_SEL1
1
Slave
1
3
Master
1
3
JCFV_SEL1
1
VCC5
1
3
VCC3
1
3
