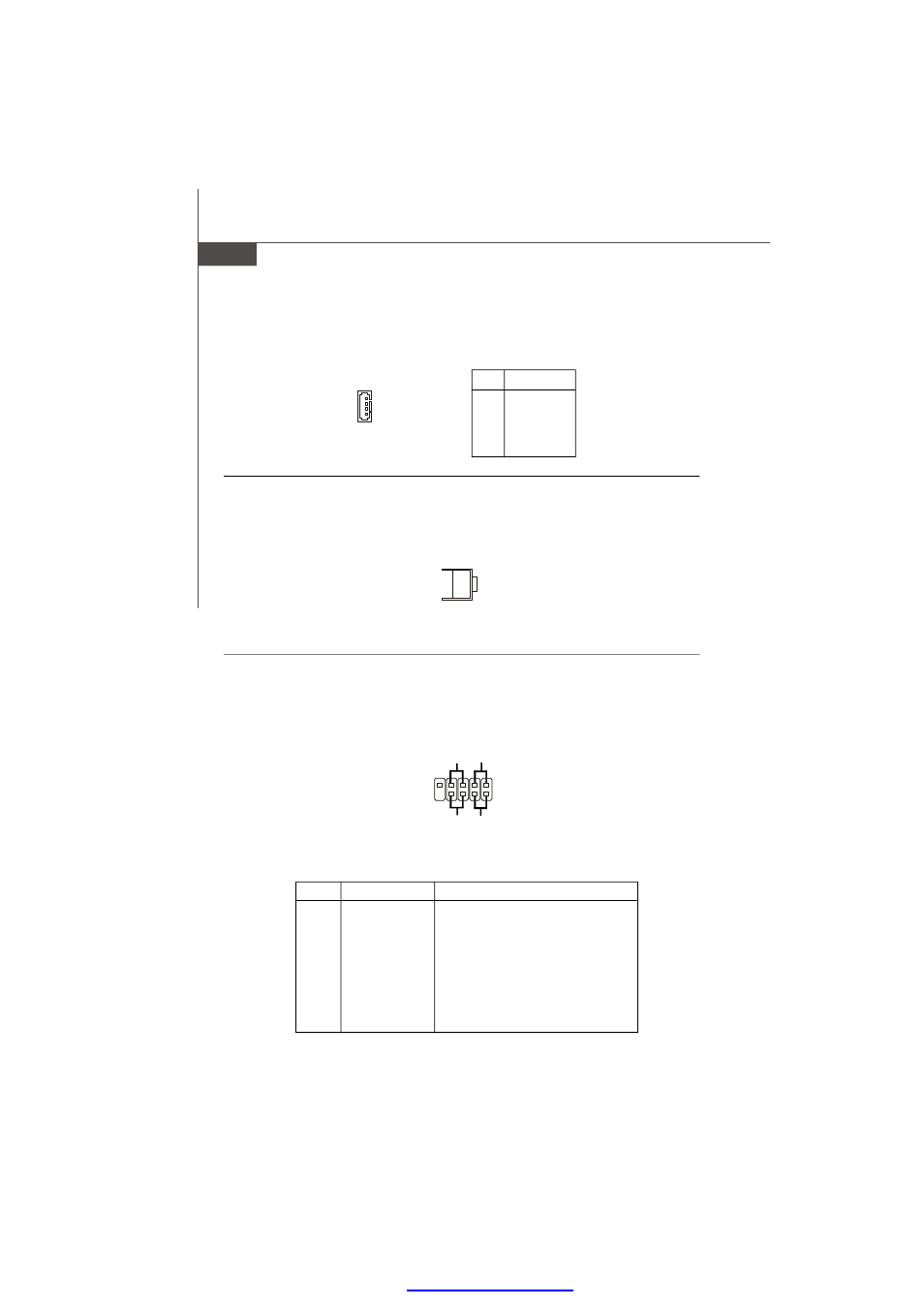

MS-91A2 Server Board
PIN SIGNAL DESCRIPTION
1 HD_LED + Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED - Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW - Reset Switch low reference pull-down to GND
6 PWR_SW + Power Switch high reference pull-up
7 RST_SW + Reset Switch high reference pull-up
8 PWR_SW - Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.
JFP1 Pin Definition
Front Panel Connector: JFP1
This connector is for electrical connection to the front panel switches and LEDs and
is compliant with Intel
® Front Panel I/O Connectivity Design Guide.
Power Button: JPBTN1
Press this button to turn on/off the system.
JPBTN1
2
1
10
9
JFP1
HDD
LED Reset
Switch
Power
LED Power
Switch
+ +
+
- -
- - +
LCD Module Connector: JLCD1
This connector is used to connect TTL UART LCD Module.
PIN SIGNAL
1 +5V
2 RX
3 GND
4 TX
Pin Definition
1
JLCD1
