6

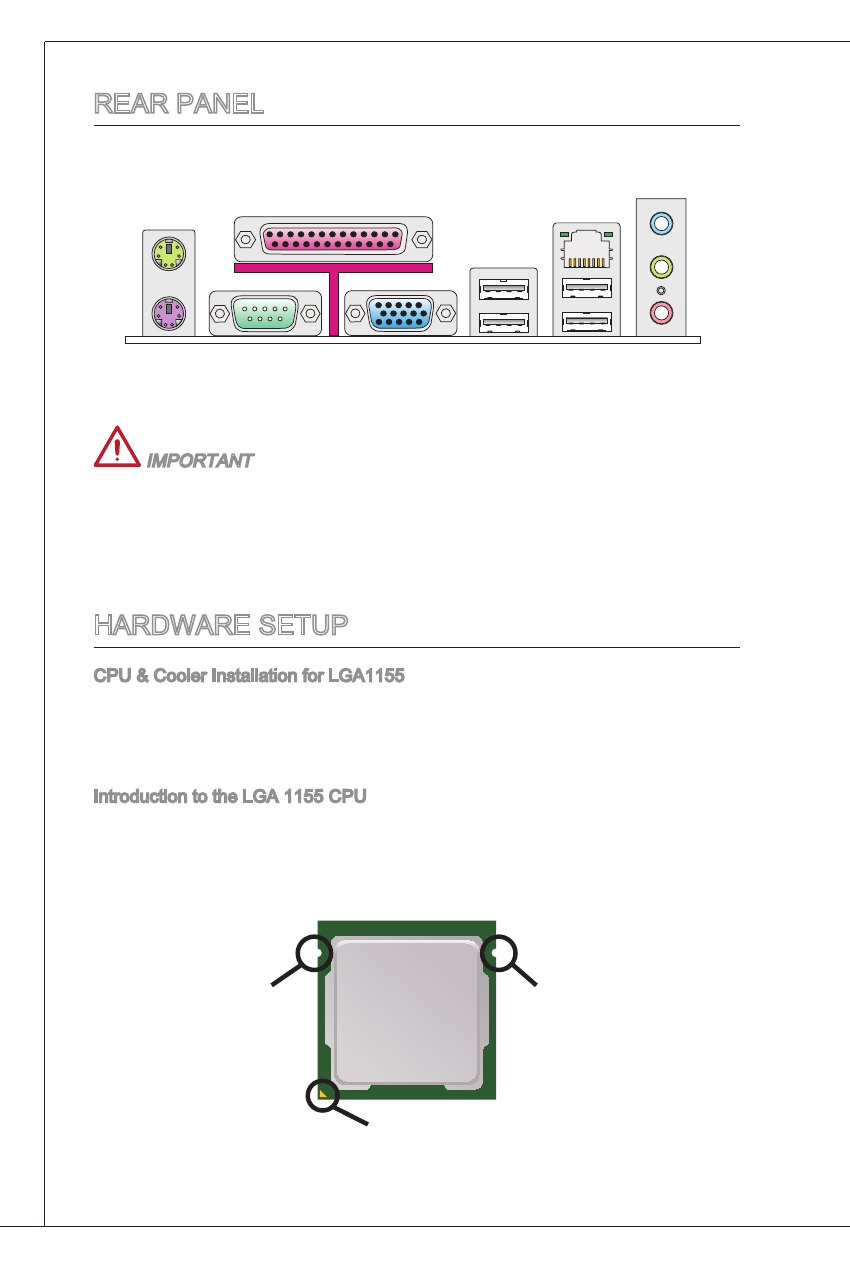

reAr PANeL
the rear panel provides the following connectors:
iMPortANt
to reach the 8-channel sound effect, the 7th and 8th channels must be output
from front panel.
the VGA port only works with integrated Graphics Processor.
*
*
PS/2 mouse
uSB 2.0
ports
VGA port
LAN
Line-in
Line-out
MiC
PS/2 keyboard Serial port
HArdWAre SetuP
CPu & Cooler installation for LGA55
When installing a CPu, always remember to install a CPu cooler. A CPu cooler is
necessary to prevent overheating and maintain system stability. Follow the steps
below to ensure correct CPu and CPu cooler installation. Wrong installation can
damage both the CPu and the mainboard.
introduction to the LGA 55 CPu
the surface of the LGA 55 CPu has two alignment keys and a yellow triangle to
assist in correctly lining up the CPu for mainboard placement. the yellow triangle
is the Pin indicator.
Alignment key
yellow triangle is the Pin indicator
Alignment key
uSB 2.0
ports
Parallel port
