Figure 1. ep72xx interface to 8-bit color display, Known compatible lcd modules, Table a. compatible lcd modules – Cirrus Logic AN179 User Manual

Page 5

AN179REV2



EP72xx and EP73xx

Known Compatible LCD Modules

Table A

gives a list of LCD Modules that are known to be compatible with LCD Controller integrated into the

EP72xx device.

Note:

The list in Table A is based solely upon work that was done to create this Application Note. Many other display modules are
compatible as well, including display sizes up to full VGA. However, if a full VGA display module is desired, the color depth will be
restricted due to the limits on the maximum frame buffer size and the maximum pixel rate (i.e., Refresh Rate) supported.

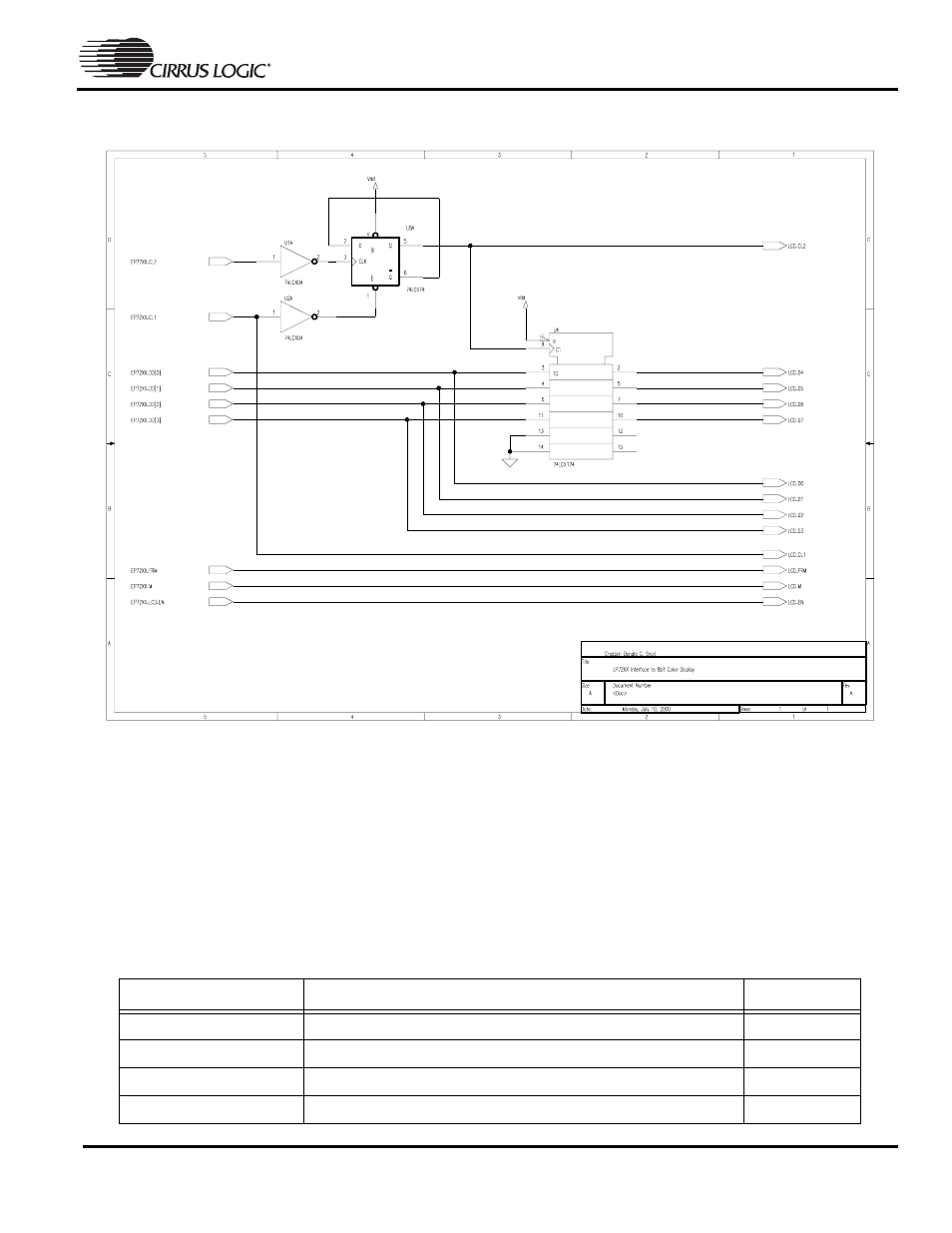

Figure 1. EP72xx Interface to 8-Bit Color Display

Table A. Compatible LCD Modules

LCD Vendor and Model #

LCD Characteristics

Availability

Sharp LM057QC1T01

8-bit, 6.1", 320 x 240, Color display, no touchscreen

Now

Sharp LM057QCTT03

8-bit, 6.1", 320 x 240, Color Transmissive, CCTF backlight, Touchscreen

Now

Sharp LM038QC1R10

8-bit, 3.8", 320 x 240, Color Reflective, no backlight, no touchscreen

Now

Sharp LM038QC1S10

8-bit, 3.8", 320 x 240, Color Tranflective, CCFT backlight, no touchscreen

Now
