CDB61880
DS450DB1 17
5.7 Global Control Register Screen

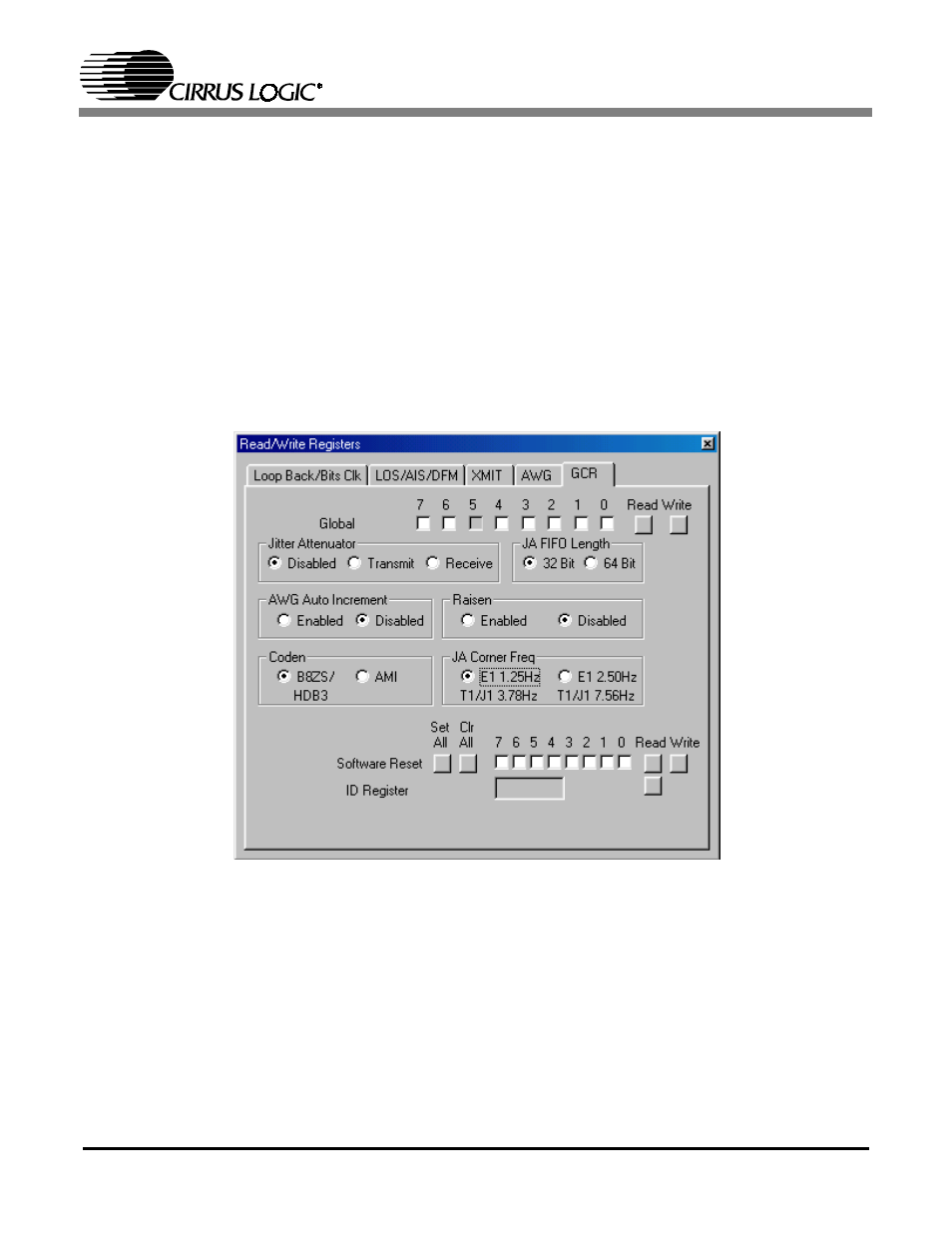

Figure 24 shows the Global Control Register
(GCR) screen, The GCR register screen consists of
the following registers:
- Software reset
- ID registers.
Each bit in the Global Control Register can be ac-
cess by writing directly to the bit in the Global Con-
trol Register on the top of this screen or by
changing the radio buttons in one of the following
windows:
- Jitter Attenuator
- JA FIFO Length
- AWG Auto Increment
- Raisen
- Coden
- Jitter Corner Freq.
The variables listed above change the correspond-
ing bit in the Global Control Register. The Soft-
ware Reset Register is a write only register and will
clear after the write. The ID Register is a read only
register.
Figure 24. Global Control Screen
