13 digital signal connections, 14 los indicators, 15 jtag connection – Cirrus Logic CDB61880 User Manual

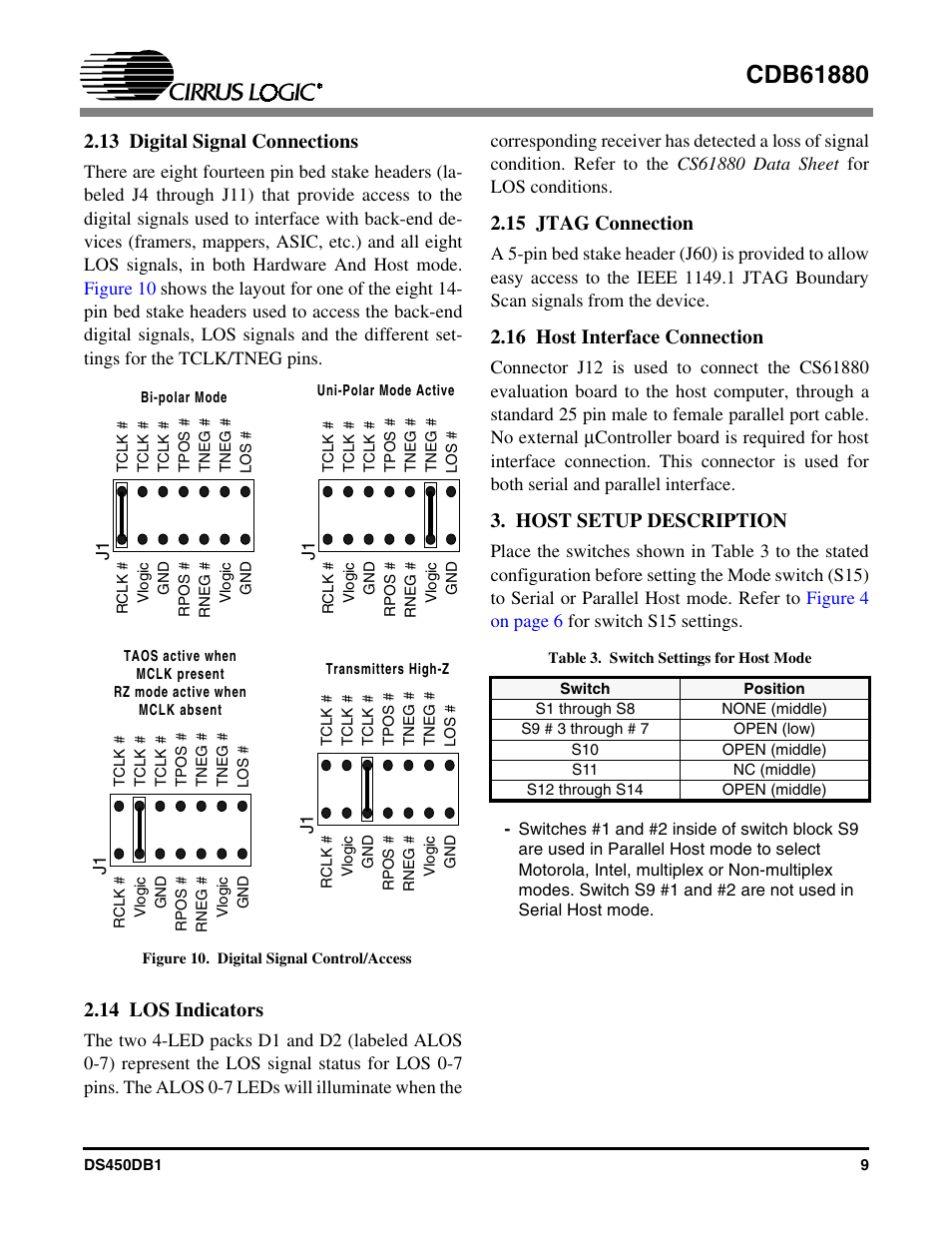

Page 9: 16 host interface connection, Host setup description, Figure 10. digital signal control/access, Table 3. switch settings for host mode
