AN348
AN348REV2 5

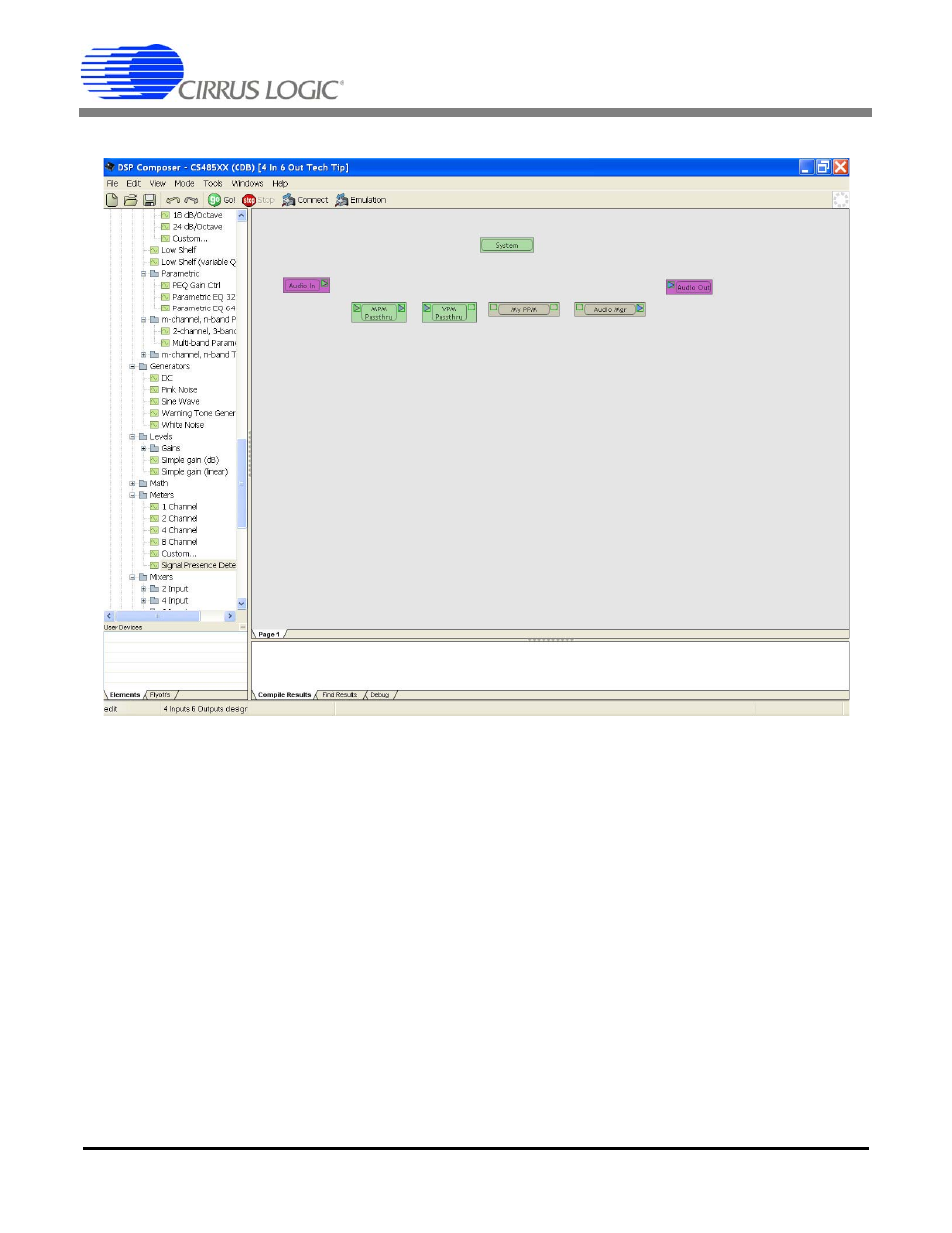

The top-level diagram now looks like this:
Now let us add another page to the Post Processing block to keep the top-level PPM diagram clean. To do this, we need to open
the custom PPM block named My PPM by double-clicking it. Then move your mouse pointer to the bottom of the canvas and
right-click to select Insert to add another page. After double-clicking on it, you may also want to rename the page to something
such as Processing.
