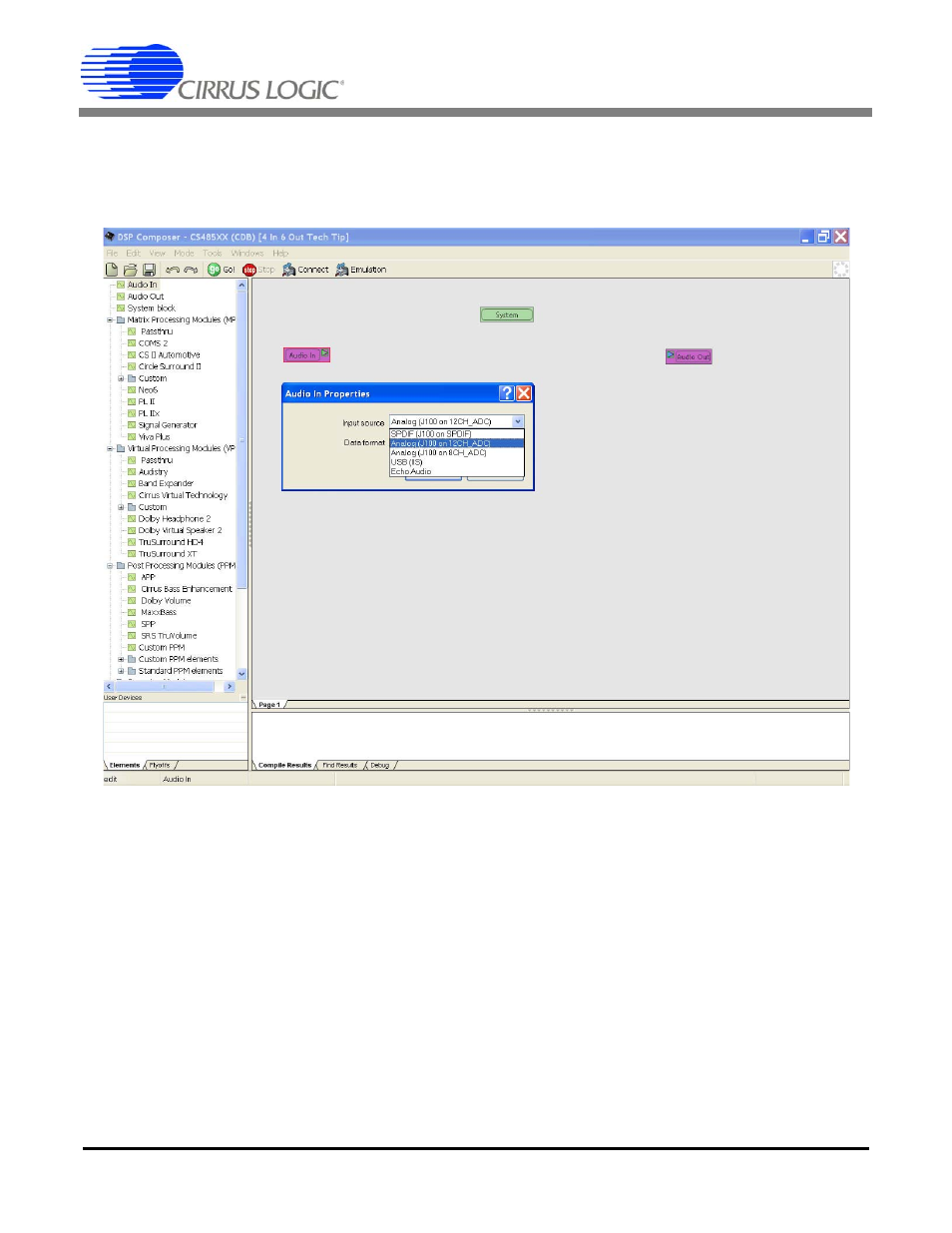

First, drag the SYSTEM block from the menu on the left-hand side. When positioning the SYSTEM block on the virtual workspace
or canvas, some parameters can be set. Please leave everything set to default for now.
Next, we define the audio inputs and outputs by another simple drag-and-drop operation. For this example, let us select analog
inputs for the input block in the Properties menu and some analog outputs per the default settings.
