CDB44800
8 DS632DB2
2.2 Advanced Register Debug Tab
The Advanced Register Debug tab provides low level control over the CS44800 and CS8416
individual register settings. Each device is displayed on a separate tab. Register values can
be modified bitwise or bytewise. For bitwise, click the appropriate push button for the desired
bit. For bytewise, the desired hex value can be typed directly in the register address box in
the register map.

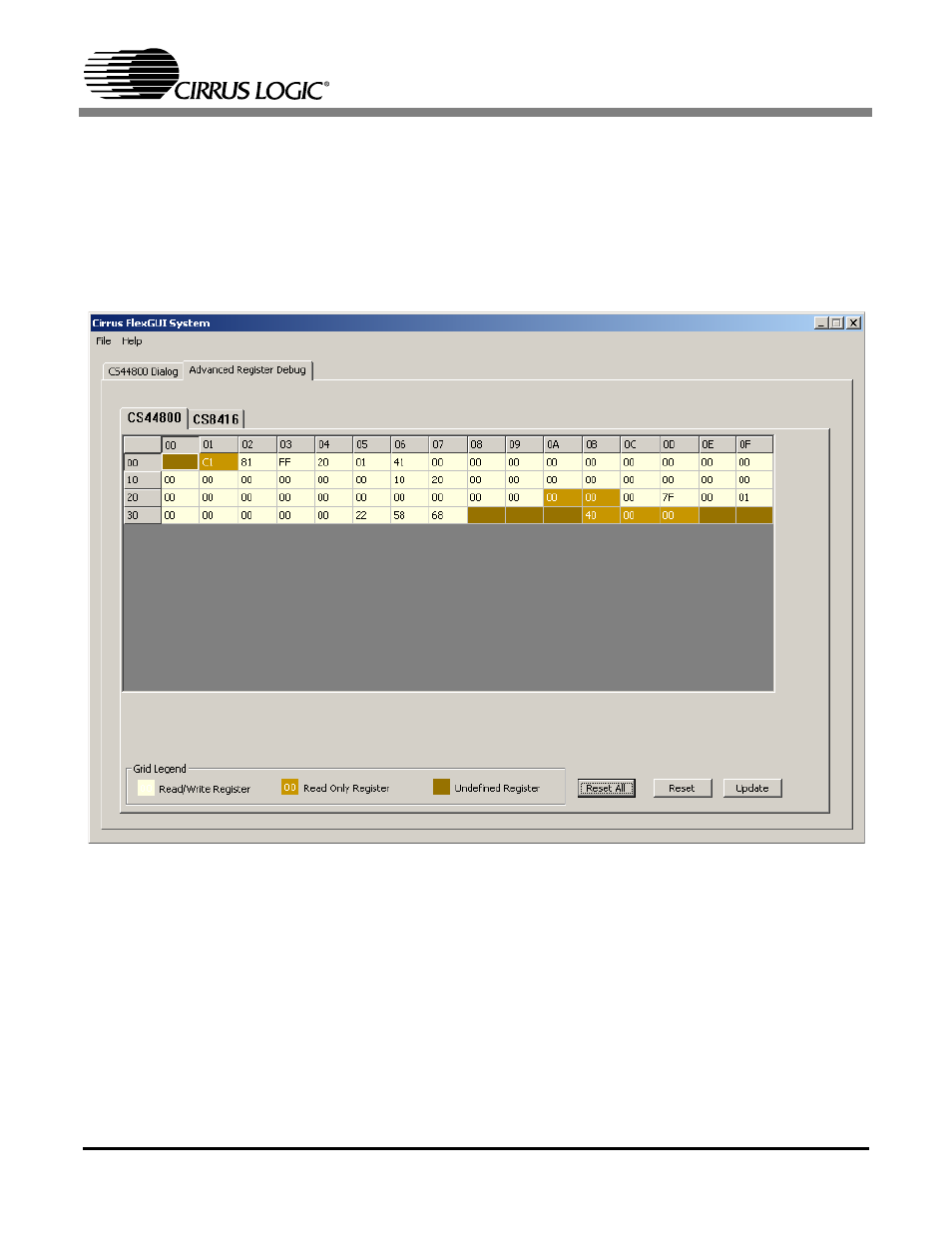

Figure 2. Advanced Register Debug Tab - CS44800
