CRD44800-ST-FB
7
The Advanced Register Debug tab provides low level control over the CS44800 and CS8416 in-
dividual register settings. Each device is displayed on a separate tab. Register values can be
modified bitwise or bytewise. For bitwise, click the appropriate pushbutton for the desired bit. For
bytewise, the desired hex value can be typed directly in the register address box in the register
map.

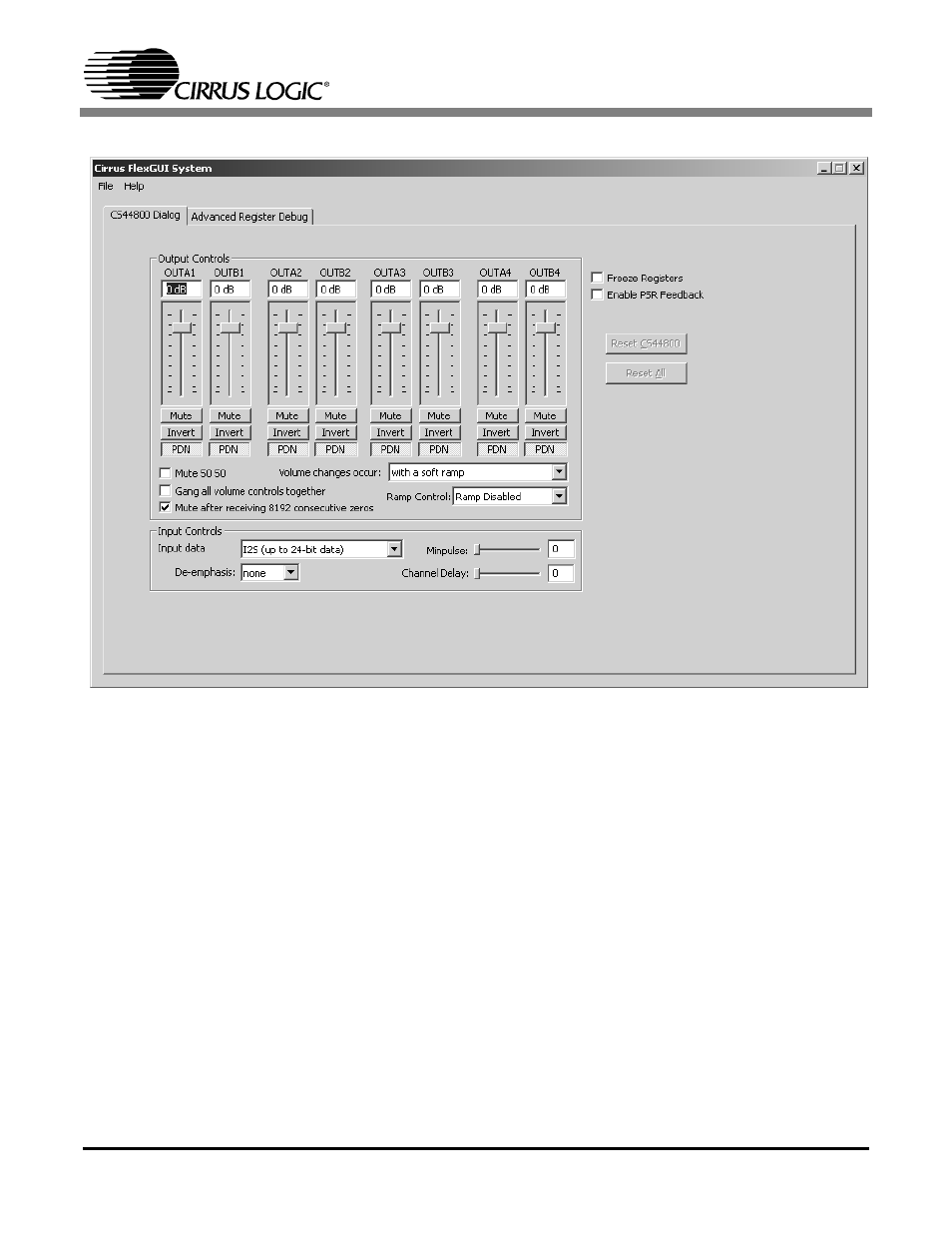

Figure 2. CS44800 Dialog Tab
