CS4340A
24-Bit, 192 kHz Stereo DAC for Audio
Features
!
101 dB Dynamic Range
!
-91 dB THD+N
!
+3.3 V or +5 V Power Supply
!
50 mW with 3.3 V supply
!
Low Clock Jitter Sensitivity
!
Filtered Line Level Outputs
!
On-Chip Digital De-emphasis for 44.1 kHz
!
Popguard
®
Technology for Control of Clicks
and Pops
!
Up to 200 kHz Sample Rates
!
Automatic Mode Detection for Sample Rates
between 4 and 200 kHz
!
Pin Compatible with the CS4340
Description
The CS4340A is a complete stereo digital-to-analog sys-
tem including digital interpolation, fourth-order delta-
sigma digital-to-analog conversion, digital de-emphasis
and switched capacitor analog filtering. The advantages
of this architecture include: ideal differential linearity, no
distortion mechanisms due to resistor matching errors,
no linearity drift over time and temperature, and a high
tolerance to clock jitter.
The CS4340A accepts data at all standard audio sample
rates up to 192 kHz, consumes very little power, oper-
ates over a wide power supply range and is pin
compatible with the CS4340, as described in section 3.1.
These features are ideal for DVD audio players.
ORDERING INFORMATION
CS4340A-KS
16-pin SOIC, -10 to 70 °C
CS4340A-KSZ, Lead Free, 16-pin SOIC, -10 to 70 °C
CDB4340A
Evaluation Board

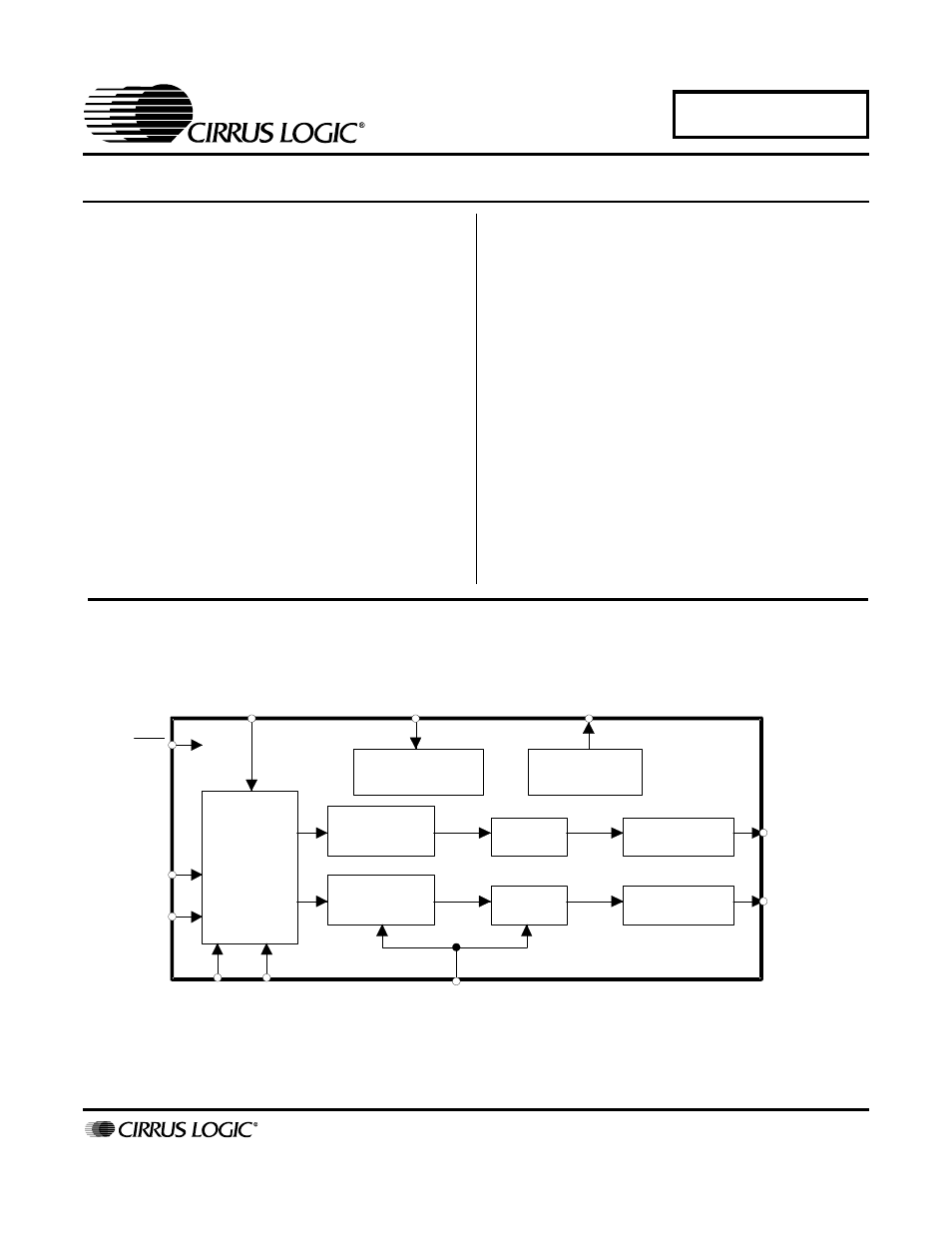

∆ Σ
DAC
Analog Filter
Serial
Audio
Interface
Interpolation
Filter
Analog Filter
M UTEC
AO UTL
AO UTR
RST
LRCK
SDIN
MCLK
∆ Σ
External
Mute Control
SCLK
DAC
Interpolation
Filter
De-emphasis
DEM
DIF0
DIF1
JULY '05
DS590F2
