8. PACKAGING AND THERMAL INFORMATION

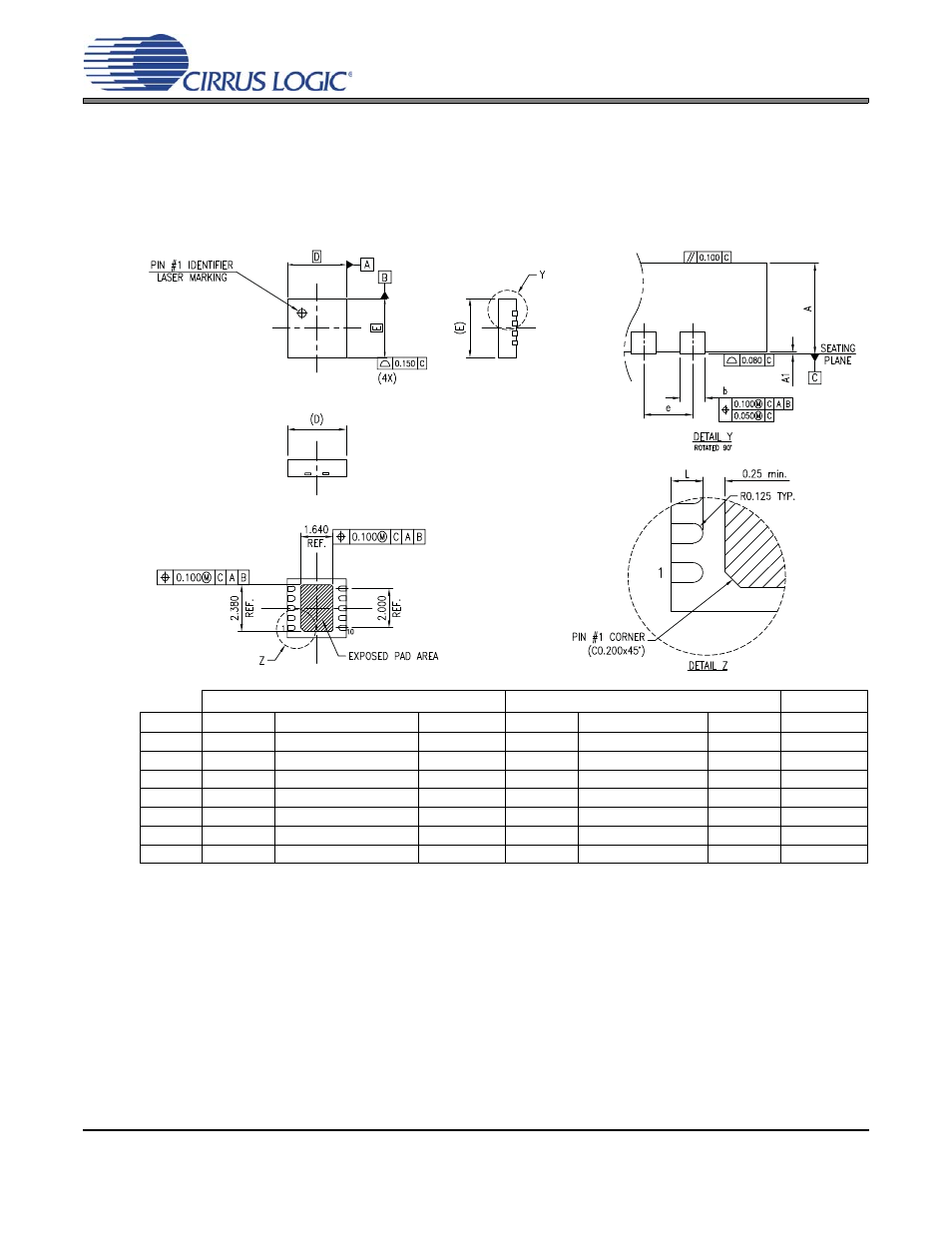

8.1 Package Drawings and Dimensions
(Note 20)
Note:
20. Dimensioning and tolerance per ASME Y 14.5M-1994.
INCHES MILLIMETERS NOTE
DIM MIN NOM MAX MIN NOM MAX
A 0.034 0.035 0.037 0.850 0.900 0.950 20
A1 0.000 0.001 0.002 0.000 0.020 0.050 20
D 0.114 0.118 0.122 2.900 3.000 3.100
E 0.114 0.118 0.122 2.900 3.000 3.100 20
L 0.014 0.016 0.018 0.350 0.400 0.450 20
b 0.008 0.009 0.012 0.200 0.250 0.300 20
e -- 0.019 -- -- 0.500 -- 20
JEDEC #: MO-220
Controlling Dimension is Millimeters.
10 PIN DFN
