AN271
Cirrus Seismic Evaluation GUI Installation Guide
Cirrus Seismic Evaluation GUI (graphical user interface) is a generic tool controlling Cirrus Seismic Eval-
uation boards through a USB interface. The GUI can be obtained from
1. GUI Installation
1)
Go to the Cirrus Industrial Software download web site
2)
Click the link, “Cirrus Seismic Evaluation GUI Vxx” (xx indicates version number).
3)
Download the file named SeismicEvalGUI_Vxx.zip onto the PC and unzip it. A folder structure called
“Distribution\Volume1” will be created (for example, C:\Distribution\Volume1)
4)
Open the folder and run the setup.exe file (C:\Distribution\Volume1\setup.exe).
5)
If the GUI has been installed previously, the Uninstall wizard will remove the older version (see below).
6)

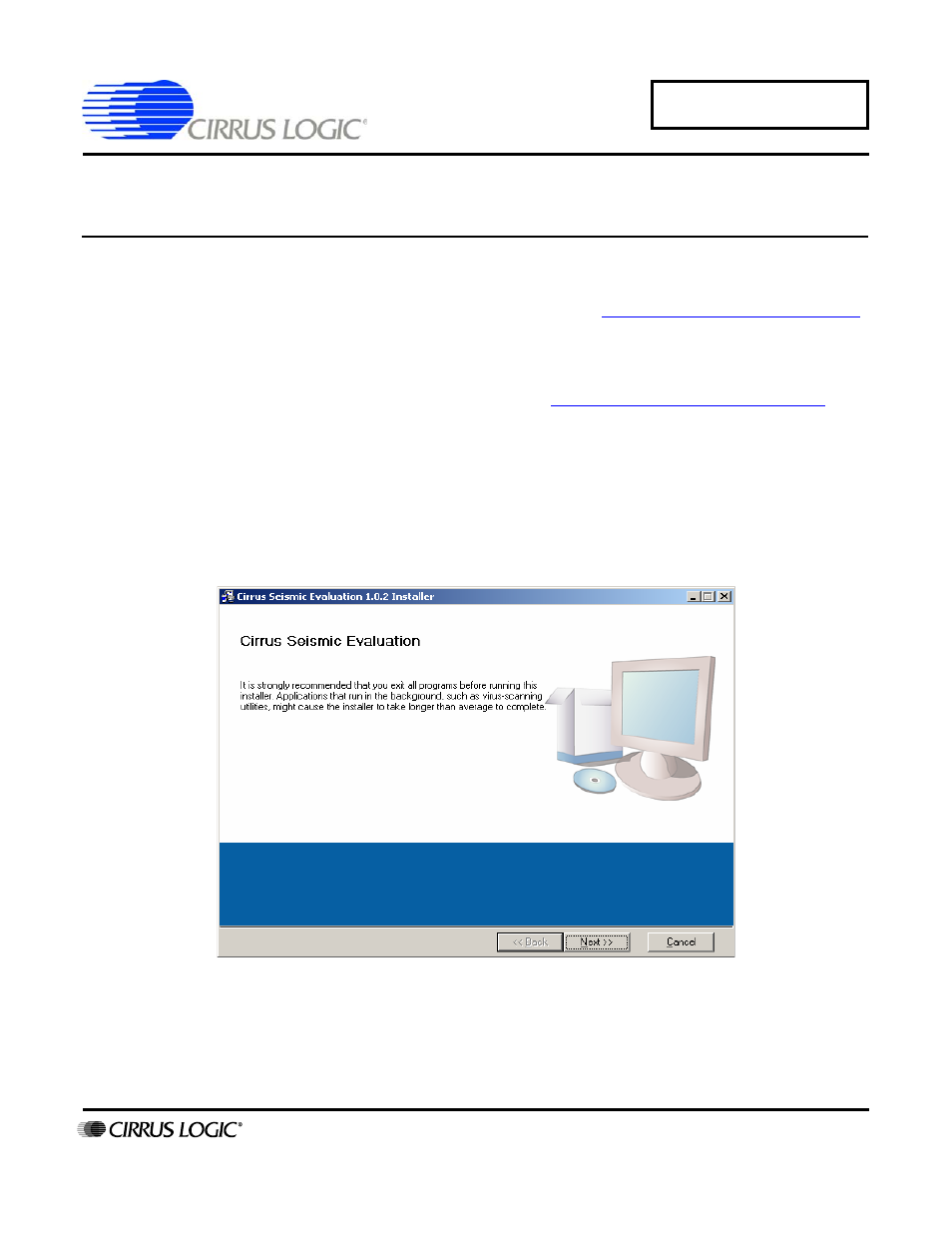

Follow the instructions presented by the Cirrus Seismic Evaluation Installation Wizard.
7)
To run the GUI, go to:
Start
B
Programs
B
Cirrus Seismic Evaluation
B
Cirrus Seismic Evaluation
JAN ‘07
AN271REV3
