11. RADIATED EMI
Device Under Test: CRD1680-7W-Z
Operator Name: DLP
Test Specification: CISPR 16-1-4:2007
EN55022 Compliant (Y/N): Y
Antenna Orientation: Horizontal/Vertical
Frequency Range: 30MHz to 1GHz
EUT Line Voltage: 230 VAC
EUT Power Frequency: 50Hz
Final Measurement

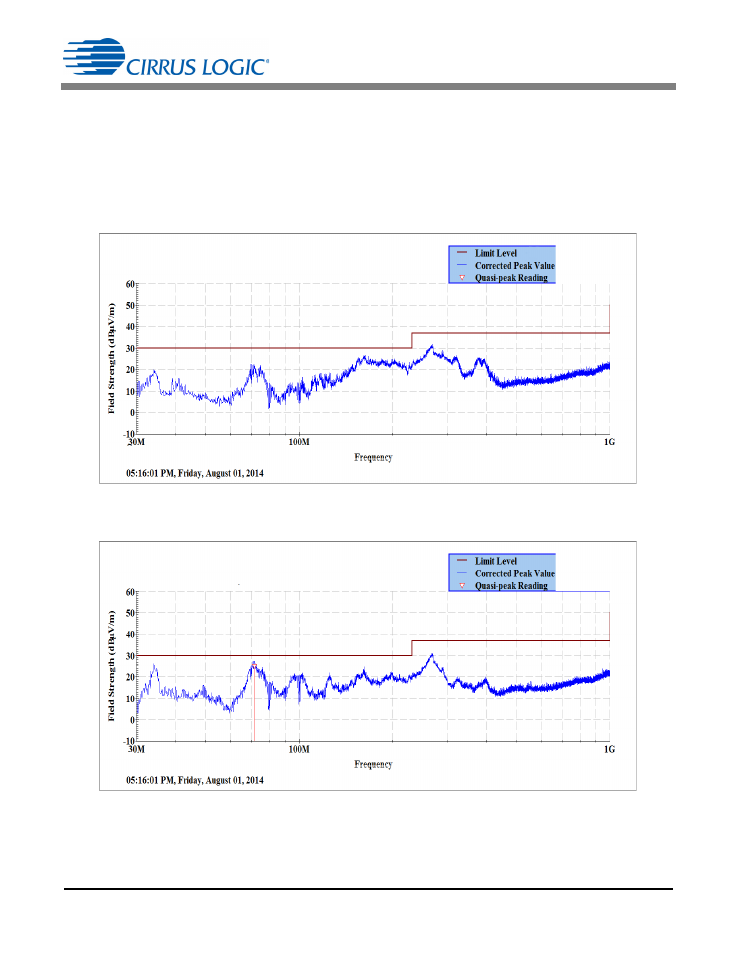

Figure 33. CRD1680-7W Radiated EMI - Horizontal Polarity
Figure 34. CRD1680-7W Radiated EMI - Vertical Polarity
