10. CONDUCTED EMI
Device Under Test: CRD1680-7W-Z
Operating Conditions: 230V 50Hz
Test Specification: IEC 61000-3-2
Operator Name: DLP
Scan Settings (1 Range)
Final Measurement
Detectors: PK+, AV
Peaks: 8
Meas Time: 1s
Acc. Margin: 12dB
Frequencies
Receiver Settings
Start
Stop
Step
Res BW
M-Time
Atten
Preamp
150kHz
30MHz
4.5kHz
9kHz (6dB)
50ms
Auto
Off

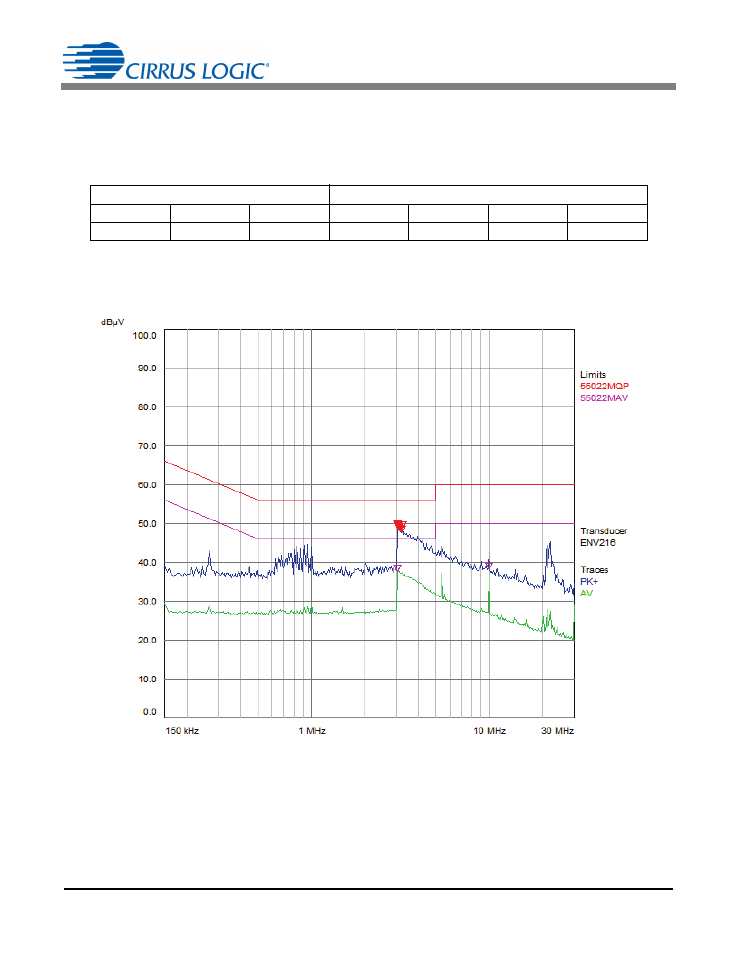

Figure 32. CRD1680-7W Conducted EMI
