2 switch overpower protection, 4 voltage clamp circuit, 1 clamp overpower protection – Cirrus Logic CS1616A User Manual

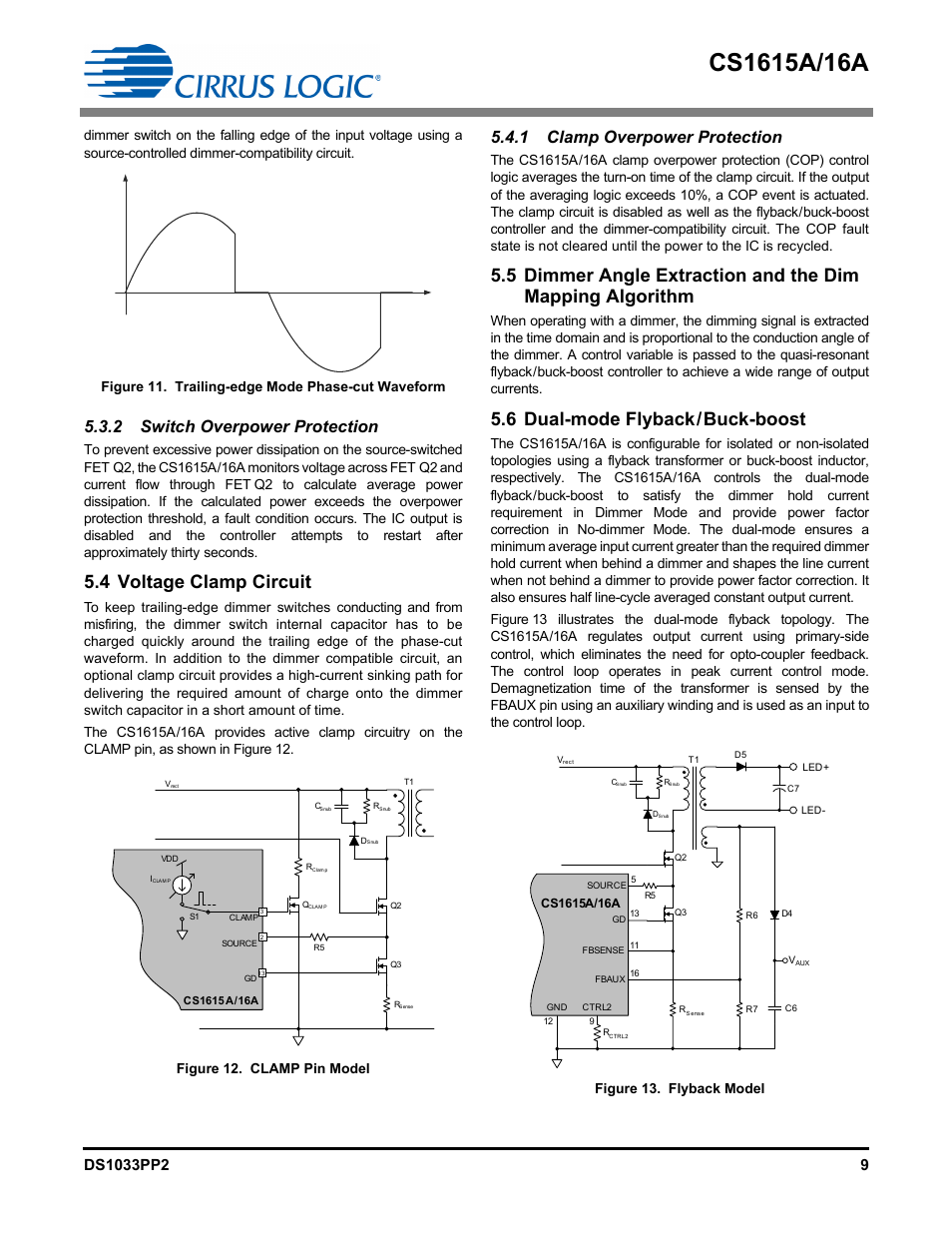

Page 9: 6 dual-mode flyback / buck-boost, 6 dual-mode flyback/buck-boost, Figure 12. clamp pin model, Figure 13. flyback model

2 switch overpower protection, 4 voltage clamp circuit, 1 clamp overpower protection | 6 dual-mode flyback / buck-boost, 6 dual-mode flyback/buck-boost, Figure 12. clamp pin model, Figure 13. flyback model | Cirrus Logic CS1616A User Manual | Page 9 / 16 2 switch overpower protection, 4 voltage clamp circuit, 1 clamp overpower protection | 6 dual-mode flyback / buck-boost, 6 dual-mode flyback/buck-boost, Figure 12. clamp pin model, Figure 13. flyback model | Cirrus Logic CS1616A User Manual | Page 9 / 16
