In processes with floating particles model 700.02 should be used.
Scope of delivery
Cross-check scope of delivery with delivery note.
5. Options and accessories

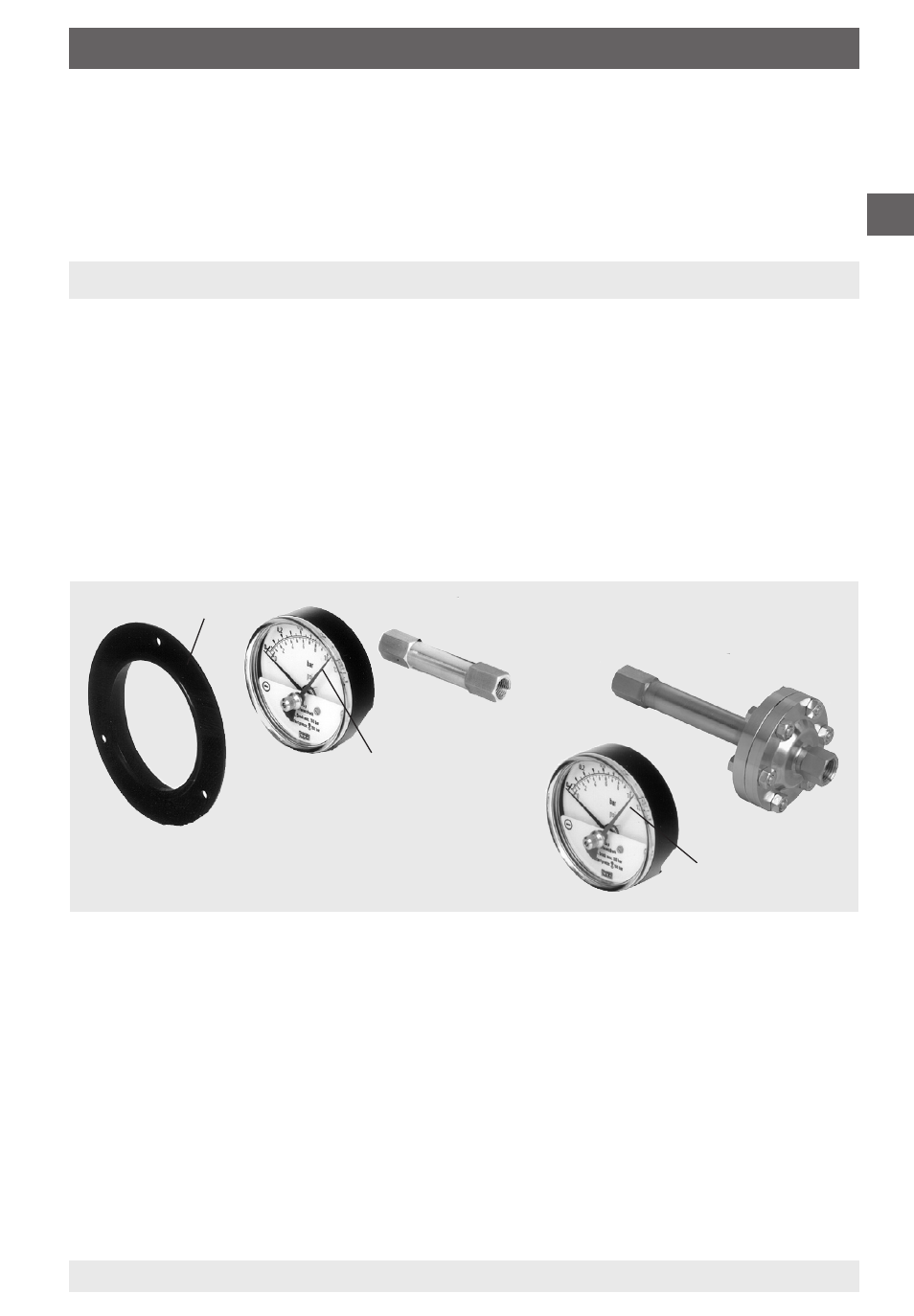

5.1 Mounting flange (only for model 700.01, see left illustration)
May be retrofitted on site as required.
Alignment of the front bezel (A) by means of the stamped cams to the grooves
found on the case circumference. Push front bezel on the case until it snaps into
position.
5.2 Minimum or maximum drag pointer (see illustrations)
The drag pointer (B) serves to monitor and control the miniumum or maximum
occurring differential pressure.
