WIKA Safety manual pressure transmitter, model S-20
14082128.02 06/2014 GB/D/F/E
2. Safety
2.1 Pressure ranges
The permissible pressure range for the pressure transmitter can be found on the product label.
WARNING!
■ The overload pressure must never be exceeded, even when failures occur. Loading over the overload
pressure can cause measuring errors in the output signal and thus impair the safety function.
■ Pressure surges below the nominal pressure and lasting less than 1 ms can cause measuring errors
in the output signal and thus impair the safety function. For this, optional pressure ports with a smaller
diameter are available to reduce pressure surges. It is important to ensure that the reduced diameter
is suitable for the particle sizes within the medium.
2.2 Labelling, safety marks

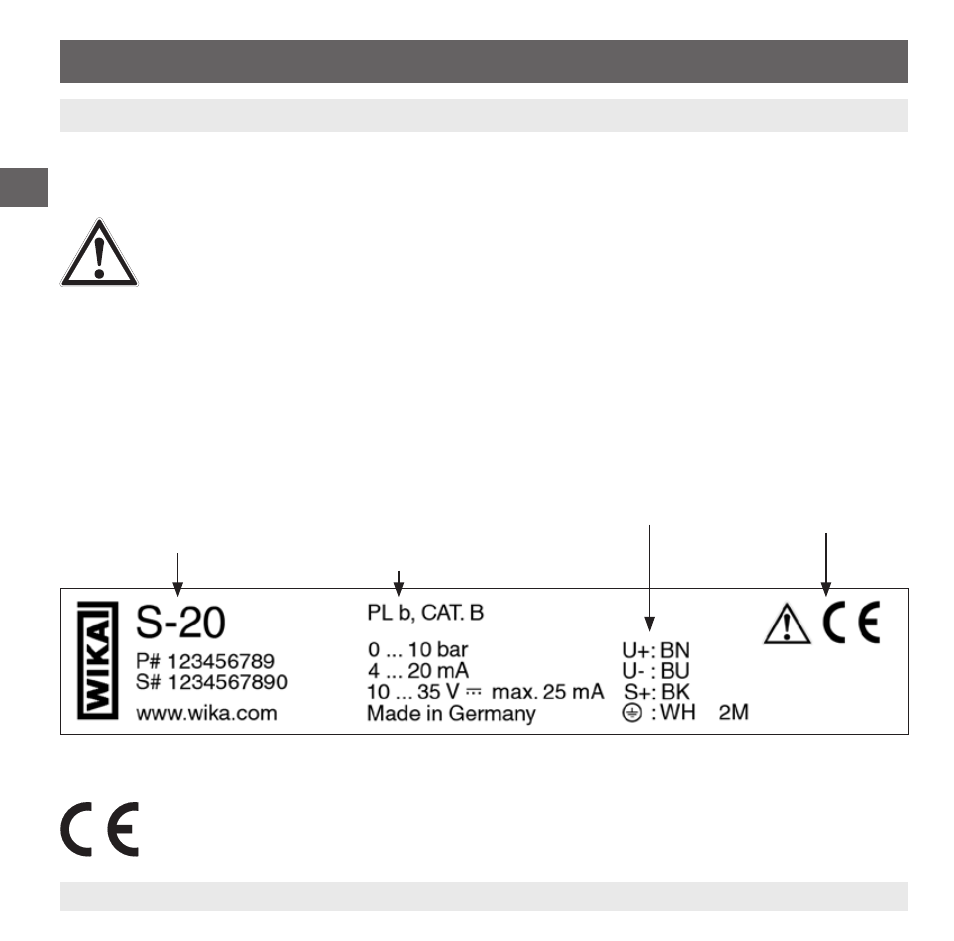

Product label
Model
P# product number
S# serial number
Performance Level
Measuring range
Output signal
Power supply
Pin assignment see explanation of
symbols
Explanation of symbols
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant European directives.
2. Safety
