1
2

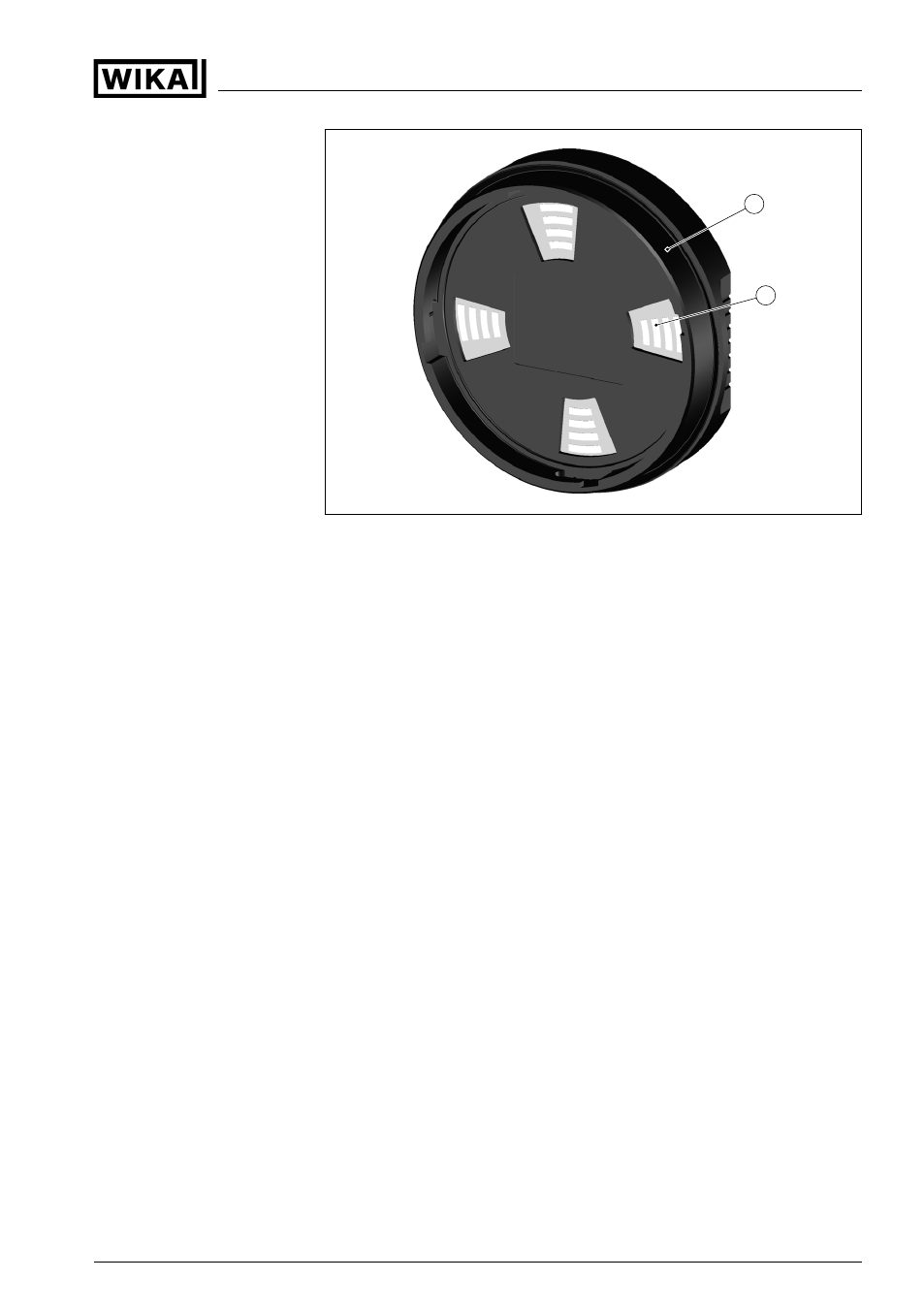

Fig. 2: Rear of the indicating/adjustment module
1
Integrated seal ring
2 Gold plated contact paths
3 .2 Principle of operation
The indicating and adjustment module is used for measured value
indication, adjustment, and diagnostics for the following WIKA
®
sensors:
l IPT-10 vers. 2.0 (ceramic sensor)
l IPT-1* vers. 3.0 (metallic sensor)
l IPT-11 vers. 4.0 (ceramic sensor)
The indicating and adjustment module is mounted into the respective
sensor housing or into the external housing. After mounting, the sensor
and the external housing are also splash water proof without housing
cover.
The operation of two indicating and adjustment modules in parallel in
the sensor and in the external housing is not supported.
Power supply directly via the respective sensor or the external
housing. An additional connection is not necessary.
3 .3 Operation
The adjustment is carried out via the integrated keys. The entered
parameters are generally saved in the respective sensor. A copy
function enables loading of the parameters into the indicating and
adjustment module.
Application area
Power supply
Indicating and adjustment module for IPT-1* sensors 7
3 Product description
